Selection range sensor, location/task - GF27.19-P-5142N
TRANSMISSION 722.9 in MODEL 171.4, 203, 230 up to Model Year 8
TRANSMISSION 722.9 in MODEL 209, 211, 215, 219, 220
TRANSMISSION 722.9 in MODEL 463.303/340/341

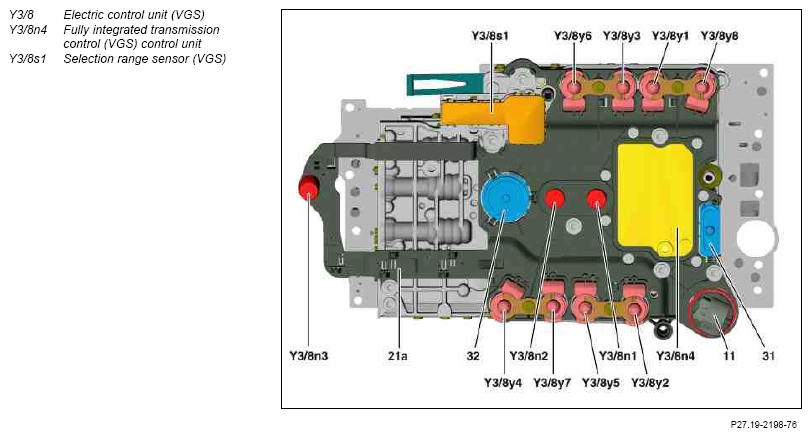

| Selection range sensor, location | The selection range sensor (VGS) (Y3/8s1) is integrated in the electric control unit (VGS) (Y3/8). |
| Selection range sensor, task | The task of the selection range sensor (VGS) (Y3/8s1) is to detect the selection ranges "P", "R", "N", "D" and the intermediate position. |
