Electrical Component Locator: Connectors
CONNECTORS LOCATION
| Component | Location |
|---|---|
| X4/39 | Under left side of dash. |

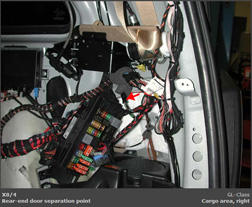

| X8/4 | Right rear of cargo area. See Figure. |
| X8/16 | Left rear door. See Figure. |
| X8/17 | Right rear door. See Figure. |

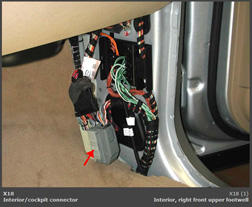

| X18 (1) | Right kick panel. See Figure. |

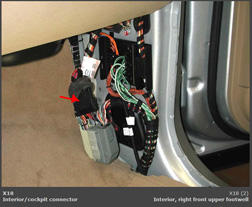

| X18 (2) | Right kick panel. See Figure. |

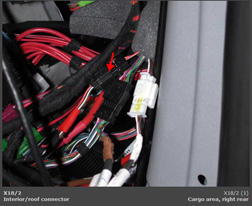

| X18/2 (1) | Right rear of cargo area. See Figure. |

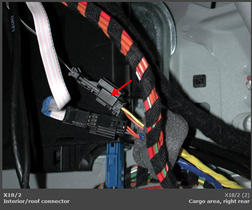

| X18/2 (2) | Right rear of cargo area. See Figure. |

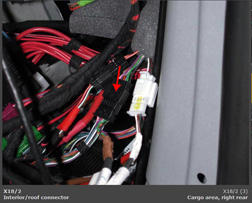

| X18/2 (3) | Right rear of cargo area. See Figure. |

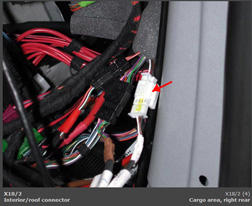

| X18/2 (4) | Right rear of cargo area. See Figure. |
| X22/6 | Right rear of engine compartment. See Figure. |
| X25/2 | Right front footwell. See Figure. |
| X26 | Right front of engine compartment. See Figure. |
| X26/32 | Left front bumper. See Figure. |

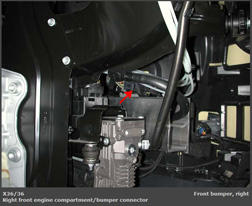

| X26/36 | Right front bumper. See Figure. |

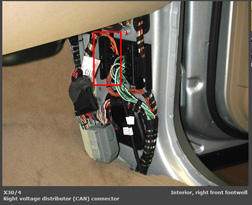

| X30/4 | Right front footwell. See Figure. |
| X30/6 | Left front footwell. See Figure. |
| X35/1 | Left front door. See Figure. |
| X35/2 | Right front door. See Figure. |
| X35/3 | Left rear door. See Figure. |
| X35/4 | Right rear door. See Figure. |
| X35/28 | Left rear bumper. See Figure. |

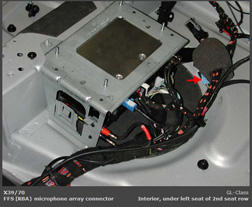

| X39/70 | Under left rear seat. See Figure. |
| X55/3 | Under left front seat. See Figure. |
| X55/4 | Under right front seat. See Figure. |
| X55/6 | Under right rear seat. See Figure. |

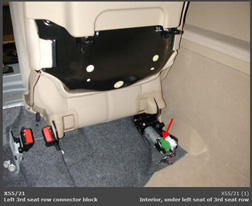

| X55/21 | Under left seat of 3rd seat row. See Figure. |
| X55/22 | Under right seat of 3rd seat row. See Figure. |
| X55/23 | Under left seat of 2nd seat row. See Figure. |
| X55/24 | Under right seat of 2nd seat row. See Figure. |
| X58/28 | Right rear of cargo area. See Figure. |
| X62/32 | Under left rear of vehicle. See Figure. |

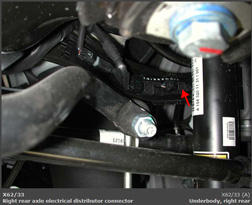

| X62/33 | Under right rear of vehicle. See Figure. |
| X62/35 | In left front wheelwell. See Figure. |
| X62/36 | In right front wheelwell. See Figure. |

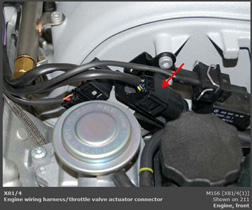

| X81/4 | Top front of engine. See Figure. |

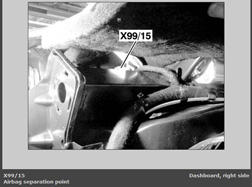

| X99/15 | Behind right side of dash. See Figure. |
| X122/1 | Under front of center console. See Figure. |
| X122/3 (1) | Left side of cargo area. See Figure. |
| X122/3 (2) | Left side of cargo area. See Figure. |

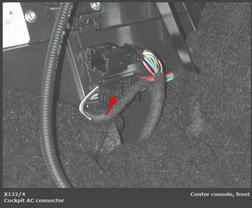

| X122/4 | Under front of center console. See Figure. |
| X205 | Front of engine. See Figure. |
