Dimensions, technical data - GF00.10-P-0710-05GIA

Dimensions

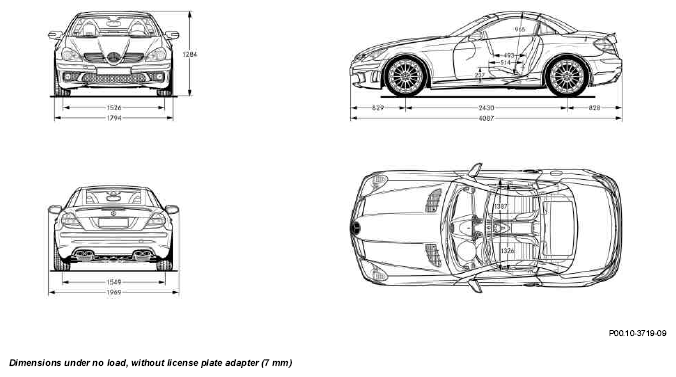

Fig 1: Identifying Dimensions
G05026760Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Garage dimensions

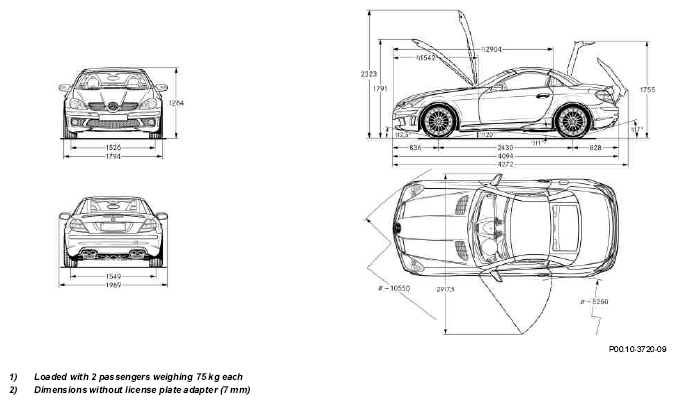

Fig 2: Identifying Garage Dimensions
G05026761Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
