Heated windshield relay, component description - GF67.10-P-2102T
MODEL 211 with CODE (979) Special protection version with heated windshield and side windows

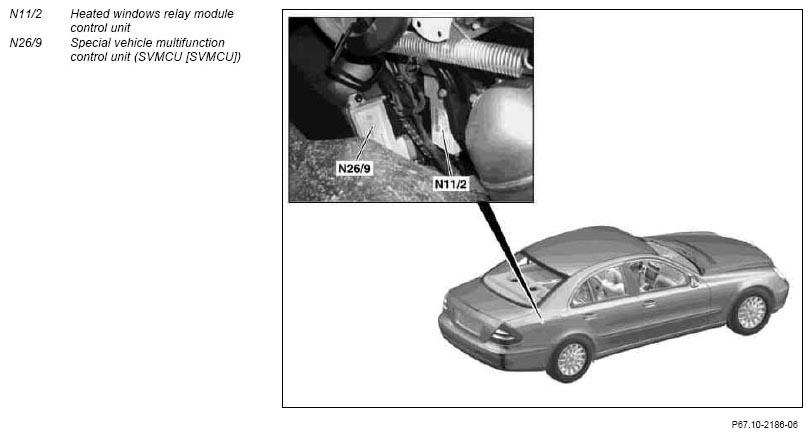

Fig 1: Identifying Heated Windows Relay Module Control Unit And Special Vehicle Multifunction Control Unit
Task:
The heated window relay module control unit (N11/2) serves as the output stage for operation of the heated windshield and heated side windows in special protection vehicles. It is controlled by the special vehicle multifunction control unit (SVMCU) (N26/9).
In the non-actuated state, the internal power supply for the heated window relay module is switched off. The power consumption is 42 A for the windshield and 10.5 A for each side window.
