ME-SFI warm-up control, function - GF07.61-P-3022AMG

ENGINE 156.980 in MODEL 164, 251 up to Model Year 8

ENGINE 156.982 in MODEL 209

ENGINE 156.983 in MODEL 211, 219

ENGINE 156.984 in MODEL 216, 221 up to Model Year 8

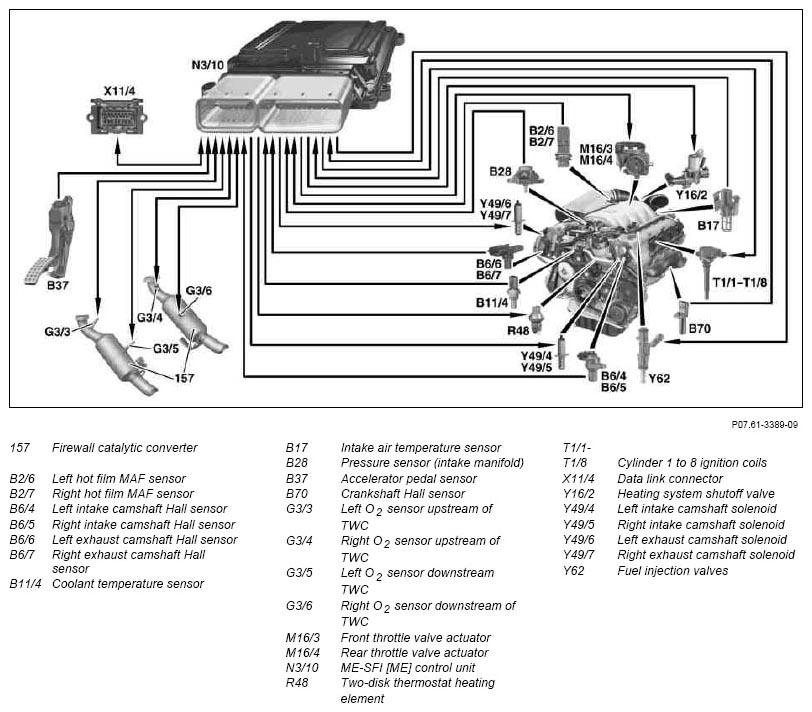

Fig 1: Identifying ME-SFI Warm-Up Control Function Diagram
G07303971Courtesy of MERCEDES-BENZ USA

The fuel-air mixture is further enriched via the warm-up control after start and post-start enrichment. The condensed fuel on the still cold cylinder barrels and intake ports is compensated for through enrichment of the warm-up control.

The additional quantity of fuel is metered to the engine by the ME-SFI [ME] control unit based on the performance map. Injection times are extended accordingly for this purpose.

Warm-up control is dependent on:

At close to idle operation, the enrichment rate is mainly dependent on the coolant temperature. At partial load the air mass is also used.

Once lambda regulation is releases it then monitors the enrichment rate.

The camshaft position determines the exhaust gas recirculation rate via the valve overlap. As the hot exhaust gases warm up the combustion chamber, the fuel vaporization changes and the enrichment rate must be tuned to match it.

Using the two-disk thermostat the coolant is led in such a way that it warms up as soon as possible (thermal management).

During warm-up, ignition angles are determined from a particular performance characteristic.

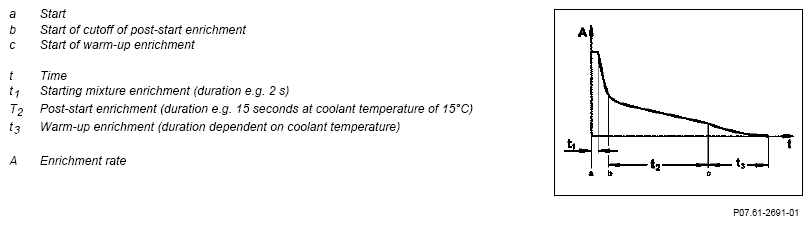

Fig 2: Identifying Enrichment Rate Graph
G07303972Courtesy of MERCEDES-BENZ USA
Component description for the adjustable camshaft timing solenoid Y49/4, Y49/5, Y49/6, Y49/7 GF05.20-P-2100AMG
Component description for the fuel injection valves Y62y1-Y62y8 GF07.03-P-6010AMG
Component description for the pressure sensor B28 GF07.04-P-6060AMG
Component description for the intake air temperature sensor B17 GF07.04-P-6070AMG
Component description for O 2 sensors G3/3, G3/4 O2 sensors upstream of TWC GF07.04-P-6100AMG
G3/5, G3/6 O2 sensors downstream of TWC GF07.04-P-6100AMH
Component description for the camshaft Hall sensor B6/4, B6/5, B6/6, B6/7 GF07.04-P-6020AMG
Component description for the coolant temperature sensor B11/4 GF07.04-P-6040AMG
Component description for the crankshaft Hall sensor B70 GF07.04-P-6220AMG
Component description for the hot film mass air flow sensor B2/6, B2/7 GF07.07-P-6000AMG
Component description for the ME-SFI [ME] control unit N3/10 GF07.61-P-6000AMG
Component description for ignition coils T1/1-T1/8 GF15.10-P-2100AMG
Component description for the heating system shutoff valve Y16/2 GF20.00-P-2200AMG
Component description for the two disc thermostat heater element R48 GF20.10-P-3161AMG
Component description for the accelerator pedal sensor B37 GF30.20-P-2010AMG
Component description for the throttle valve actuator M16/3, M16/4 GF30.20-P-2020AMG
Component description for the three-way catalytic converter 157, 158 GF49.10-P-2010AMG
