Smooth engine running analysis, function - GF07.10-P-1030MAS

ENGINE 156.984 in MODEL 216.377, 221.077 /177 as of model year 2009 /AEJ 08

Function requirements for smooth engine running analysis, general points

• Circuit 87M ON (engine control ON)
• Engine running

Smooth engine running analysis, general points

Engine running is constantly monitored in order to protect the firewall catalytic converters from excessive thermal stresses if combustion misfires occur.

For smooth running evaluation, the ME-SFI [ME] control unit (N3/10) reads the following sensors and signals:

• LH and RH hot film MAF sensor (B2/6, B2/7), engine load
• LH and RH intake camshaft Hall sensors (B6/4, B6/5), intake camshaft positions
• LH and RH exhaust camshaft Hall sensors (B6/6, B6/7), exhaust camshaft positions
• Coolant temperature sensor ()B11/4
• Accelerator pedal sensor (B37), accelerator pedal position
• Crankshaft Hall sensor (B70), engine speed
• Instrument cluster (A1), fuel level via the chassis CAN (CAN E)
• ESP control unit (N47-5), wheel speed signal via the chassis CAN

Function sequence for smooth engine running analysis

• The function sequence is described in the following steps:
• Function sequence for combustion misfire detection
• Function sequence for misfire counter

Function sequence factors for smooth running evaluation

Function sequence for combustion misfire detection For analyzing smooth engine running, the signal supplied by the crankshaft Hall sensor is analyzed using a sophisticated mathematical method to determine whether exact time synchronism exists between the individual combustions.

Each individual combustion must produce a characteristic acceleration at the increment wheel (perforated plate). If there are combustion misfires, the increment wheel turns slightly more slowly until the next ignition (torque fluctuation).

If the smooth running evaluation in the ME-SFI [ME] control unit detects combustion misfiring, the corresponding fuel injection valve (Y62) is no longer actuated after a certain number of combustion misfires. However, a maximum of two fuel injection valves may be deactivated simultaneously.

Function sequence for misfire counter

The total number of combustion misfires detected is stored in the fault memory and subdivided into:

• "Cylinder-specific" combustion misfires
• "Emission limit" combustion misfires
• "Catalytic converter damaging" combustion misfires

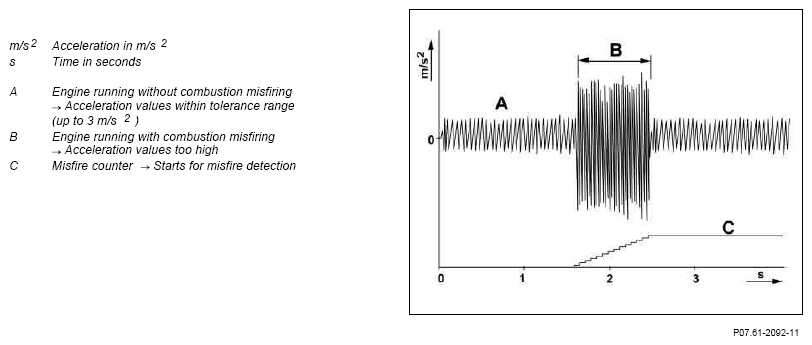

Smooth engine running signal

What is detected is combustion misfiring caused by:

• Ignition system
• Injection system
• Mechanical engine components (for example, valve seats, valve springs, unmetered air)
• Fuel deficiency

Function sequence factors for smooth running evaluation

The following factors affect the smooth running evaluation:

• Engine speed and engine load
• Coolant temperature
• Recognition of an uneven road surface
• Synchronization of fuel injection and firing order
• Fuel reserve signal
• Sensor adaptation

Engine speed and engine load

Using the engine speed and engine load, the ME-SFI [ME] control unit calculates a reference value for the time between two combustions.

Coolant temperature

For a cold engine more combustion misfires are permissible than for an engine at operating temperature.

Recognition of an uneven road surface

Vibrations transmitted through the drive train may have a negative effect on engine running at certain engine speeds and load states. Therefore, the tolerance range for smooth running evaluation is increased on poor road surfaces ("wash board").

The ME-SFI [ME] control unit receives the wheel speed signal (for detection of uniform wheel speed) via the chassis CAN from the ESP control unit.

Synchronization of the fuel injection and firing order

Cylinder detection using the signals from the crankshaft Hall sensor and the intake camshaft Hall sensors or exhaust camshaft Hall sensors is required for fault storage and assessment.

Fuel reserve signal

If combustion misfiring has been detected, a fault is stored if the fuel level is too low. Combustion misfires due to fuel starvation are detected via this additional information.

The SAM control unit with rear fuse and relay module (N10/2) evaluates the signals from fuel level sensors in the LH and RH fuel tank halves (B4/1, B4/2) and sends the corresponding signal via the interior CAN (CAN B) to the instrument cluster.

The ME-SFI [ME] control unit receives the fuel level information from the instrument cluster via the chassis CAN.

Sensor adaptation

The tolerance range for smooth running evaluation is reduced after successful adaptation of the crankshaft Hall sensor.

In this way, the smooth running evaluation can be adapted to the specific smooth running characteristics of the engine.

The ME-SFI [ME] control unit stores the smooth operation characteristics of the engine during a deceleration phase accelerator pedal not operated) when uniform smooth operation is present. These are required as a comparison parameter for misfire detection.

The tolerance range for smooth running evaluation is preset in the ME-SFI [ME] control unit and can be adapted using the Diagnosis Assistance System (DAS) if necessary.

	Electrical function schematic for smooth running evaluation ME	Model 216	PE07.61-P-2770-97CAC
		Model 221	PE07.61-P-2770-97SAC
	Component description for ME-SFI [ME] control unit	N3/10	GF07.61-P-6000MAS
