Fuel consumption signal, function - GF07.10-P-1028AMG

ENGINE 156.980 in MODEL 164, 251 up to model year 2008 /AEJ 07

ENGINE 156.982 in MODEL 209

ENGINE 156.983 in MODEL 211, 219

ENGINE 156.984 in MODEL 216, 221 up to model year 2008 /AEJ 07

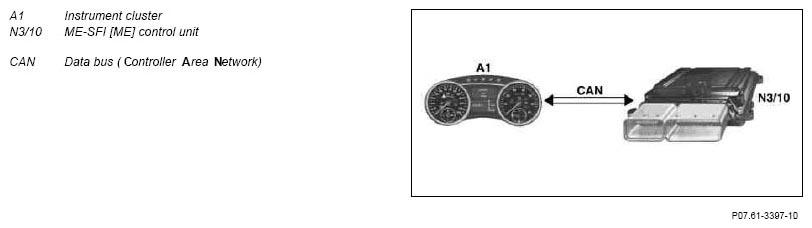

Fig 1: Identifying Fuel Consumption CAN Communication Diagram

Courtesy of MERCEDES-BENZ USA

The current fuel consumption is transmitted to the trip computer in the instrument cluster via the CAN Data bus by the ME-SFI [ME] control unit in the form of square-wave pulse packages.

The fuel consumption signal is calculated by the instrument cluster (e.g. 8.2 l/h).

One square-wave pulse means 0.2 l/h fuel consumption
