Remove/install starter - AR15.30-P-7100TX

ENGINE 273 in MODEL 219

ENGINE 273 (except 273.962) in MODEL 211

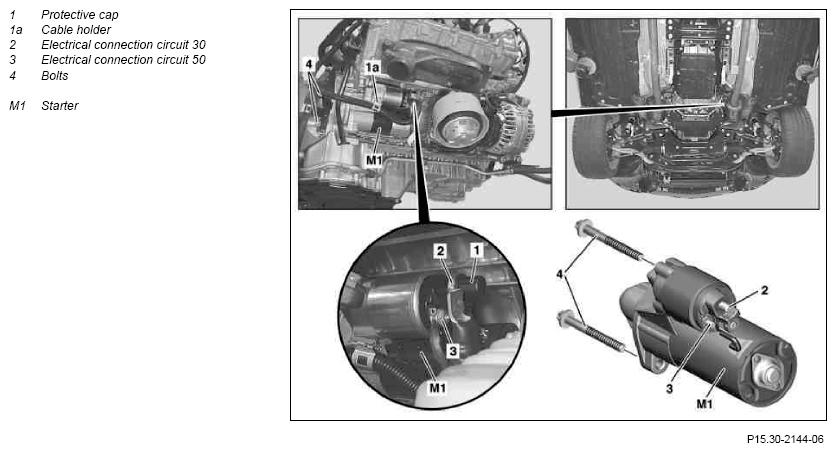

Fig 1: Identifying Starter Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove, install
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1	Disconnect ground line from battery	Insulate ground line clamp as a protection against unintentional contact of dismounted ground line with ground point of battery.
		Model 211.0	AR54.10-P-0003T
		Model 211.2	AR54.10-P-0003TA
		Model 219	AR54.10-P-0003TX
2	Dismount cable holder (1a) from starter (M1)
3	Dismount electrical connection terminal 50 (3) at starter (M1)		*BA15.30-P-1002-01J
4	Unscrew bolts (4) of starter (M1) and pull the starter (M1) to the front		*BA15.30-P-1003-01J
5	Pull out protective cap (1) and dismantle electrical connection circuit 30 (2) at starter (M1)		*BA15.30-P-1001-01J
6	Remove the starter (M1) from the front at the bottom between the steering and the front axle carrier
7	Check the starter ring gear on the drive plate for wear and damage	Rotate engine at the center bolt, the crankshaft in the direction of rotation.
8	Install in the reverse order
