Remove/install injection system control unit - AR07.08-P-7008TY
ENGINE 113.967 in MODEL 219.3
| Remove | |||
| Notes on avoiding damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1.1 | Transfer variant coding of ME control unit (N3/10) to STAR DIAGNOSIS | Only when replacing ME control unit (N3/10) | |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04TX | ||
| STAR DIAGNOSIS, diagnosis system | *WH58.30-Z-1048-13A | ||
| 2 | Switch off ignition | ||
| 3 | Open engine hood | AR88.40-P-1000TX | |

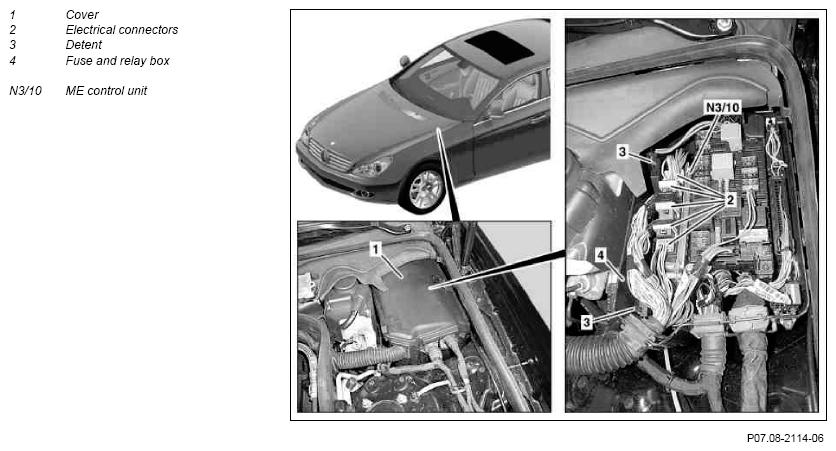

| 4 | Remove cover (1) of fuse and relay box (4) | ||
| 5 | Unlock and unplug connectors (2). | ||
| 6 | Release ratchet (3) and remove ME control unit (N3/10) from the fuse and relay box (4) | ||
| Install | |||
| 7 | Insert ME control unit (N3/10) in the fuse and relay box (4) and press down until the ratchet (3) locks | ||
| 8 | Plug in electrical connectors (2) and lock | ||
| 9 | Fit cover (1) of fuse and relay box (4) | ||
| 10.1 | Transfer basic data from STAR DIAGNOSIS to the ME control unit (N3/10) | Only when replacing ME control unit (N3/10) | |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04TX | ||
| STAR DIAGNOSIS, diagnosis system | *WH58.30-Z-1048-13A | ||
| 11.1 | Run the ME control unit (N3/10) with STAR DIAGNOSIS | Only when replacing ME control unit (N3/10) |
|
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns when working in engine during starting procedure | Secure vehicle to prevent it from moving. Wear closed and snug-fitting work clothes. Do not grasp hot or rotating parts. | AS00.00-Z-0005-01A | |
| 12 | Carry out engine test run |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS, diagnosis system; Compact Passenger Car | 6511 1801 00 |
