Remove/install starter - AR15.30-P-7100MMB
ENGINES 157, 278 in MODEL 216, 221
| Remove/install | |||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| 1 | Deactivate easy entry/exit function | Vehicles with 4MATIC with code (275) Memory package (driver seat, steering column, mirrors) | AR54.30-P-1000-02ESX |
| 2 | Turn front wheels to straight-ahead position and secure steering wheel with holding device | Vehicles with 4MATIC |
|
| Fig 3 | |||
| 3 | Detach ground line from battery | AR54.10-P-0003SX | |
| Notes on battery | AH54.10-P-0001-01A | ||
| 4 | Remove bottom engine compartment paneling | AR61.20-P-1105SX | |
| 5 | Remove steering coupling | Vehicles with 4MATIC | AR46.10-P-8000SX |
| 6 | Remove electrical connection on SPS solenoid valve and set aside | Vehicles with 4MATIC | |

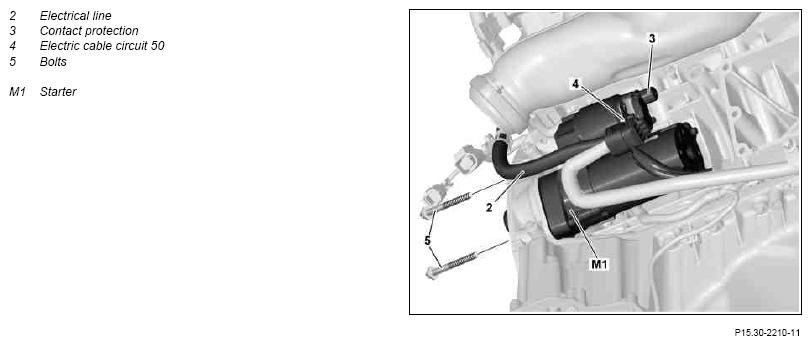

| 7 | Remove shield over starter (M1) | ||
| 8 | Detach protection against accidental contact (3) and detach electrical line circuit 30 at starter (M1) | *BA15.30-P-1001-01J | |
| 9 | Disconnect electrical line of circuit 50 (4) at starter (M1) | *BA15.30-P-1002-01J | |
| 10 | Unclip electrical line (2) at starter (M1) and cylinder crankcase | ||
| 11 | Remove bolts (5) of starter (M1) | *BA15.30-P-1003-01J | |
| 12 | Remove starter (M1) from below | ||
| Checking | |||
| 13 | Check ring gear at the drive plate for wear and damage | When replacing the starter (M1) |
|
| Fig 2 | |||
| 14 | Install in the reverse order |
STARTER
| Number | Designation | Engine 157 | Engine 278 | |
|---|---|---|---|---|
| BA15.30-P-1001-01J | Nut, connection for circuit 30 | Nm | 15 | 15 |
| BA15.30-P-1002-01J | Nut, connection for circuit 50 | Nm | 6 | 6 |
| BA15.30-P-1003-01J | Bolt connecting starter to crankcase | Nm | 40 | 40 |
