Remove/install starter - AR15.30-P-7100SZ
ENGINE 275 in MODEL 216, 221
| Remove/install | |||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| 1 | Disconnect ground lines from batteries | AR54.10-P-0003SX | |
| 2 | Remove lower engine compartment paneling | Vehicles without code (Z07) Top protection | AR61.20-P-1105SX |
| Vehicles with code (Z07) Top protection (Model 221) | AR61.20-P-1105SXS | ||

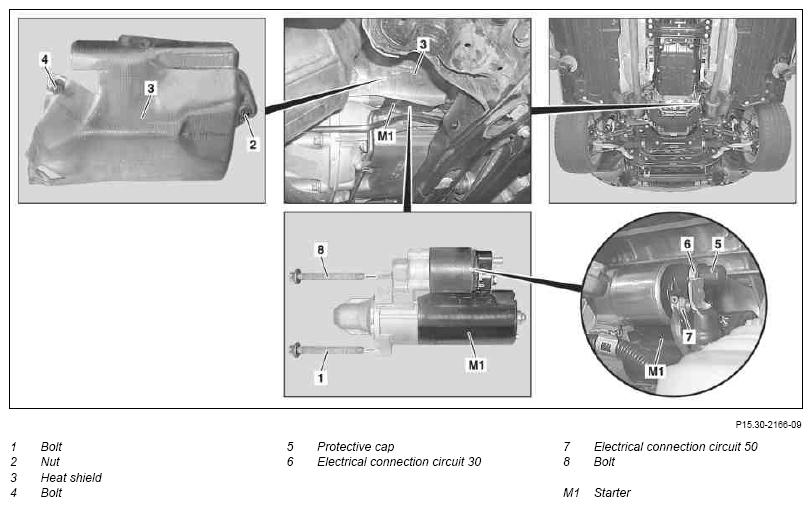

| 3 | Remove bolt (1) from starter (M1) | *BA15.30-P-1003-01G | |
| 4 | Unscrew nuts (2), remove bolt (4) and remove heat shield (3) | *BA15.30-P-1004-01G | |
| 5 | Pull out protective cap (5) and dismantle electrical connection circuit 30 (6) at starter (M1) | *BA15.30-P-1001-01G | |
| 6 | Remove electrical connection terminal 50 (7) at starter (M1) | *BA15.30-P-1002-01G | |
| 7 | Remove bolt (8) from starter (M1) | *BA15.30-P-1003-01G | |
| 8 | Take starter (M1) down and out | ||
| Checking | |||
| 9 | Check starter ring gear at drive plate for wear and damage | When replacing the starter (M1) |
|
| 10 | Install in the reverse order |
STARTER
| Number | Designation | Engine 275 | |
|---|---|---|---|
| BA15.30-P-1001-01G | Nut for connection of circuit 30 | Nm | 14 |
| BA15.30-P-1002-01G | Nut for connection for circuit 50 | Nm | 6 |
| BA15.30-P-1003-01G | Bolt connecting starter to crankcase | Nm | 42 |
| BA15.30-P-1004-01G | Bolt heat shield to crankcase | Nm | 8 |
