Remove/install starter - AR15.30-P-7100W

ENGINES 152, 276 in MODEL 172

Shown on engine 276

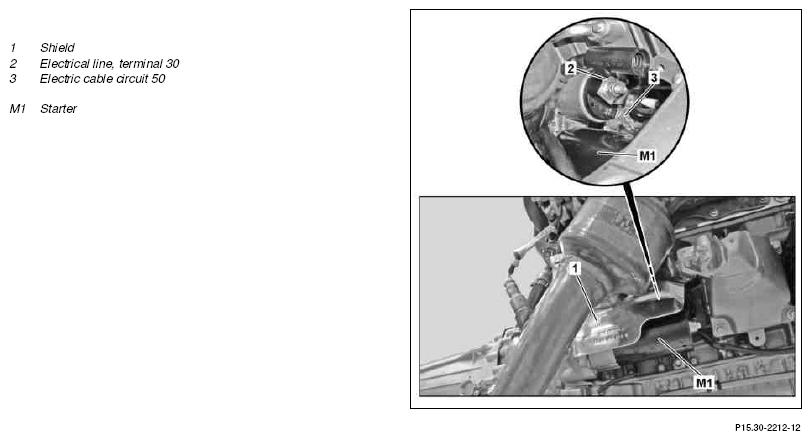

Fig 1: Identifying Starter Remove/Install Components - Shown On Engine 276

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Detach ground line from battery		AR54.10-P-0003W
	Notes on battery		AH54.10-P-0001-01A
2	Remove bottom engine compartment paneling		AR61.20-P-1105W
3	Remove shield (1)
4	Detach contact protection on circuit 30 electrical line (2)
5	Disconnect electrical line of circuit 30 (2) at starter (M1)		*BA15.30-P-1001-01J
6	Disconnect electrical line of circuit 50 (3) at starter (M1)		*BA15.30-P-1002-01J
7	Remove starter (M1) on cylinder crankcase		*BA15.30-P-1003-01J
8	Remove starter (M1) from below
	Checking
9	Check starter ring gear on driven plate for wear and damage	If required, continue turning engine at center bolt on the crankshaft in direction of rotation of the engine.
			Figure
10	Install in the reverse order
