Remove/install starter - AR15.30-P-7100MR

ENGINE 274 in MODEL 172

ENGINE 274 in MODEL 204

ENGINE 274 in MODEL 207

ENGINE 274 in MODEL 218

ENGINE 274.9 in MODEL 212 except code 924 (Bivalent natural gas drive)

Shown on model 212.002

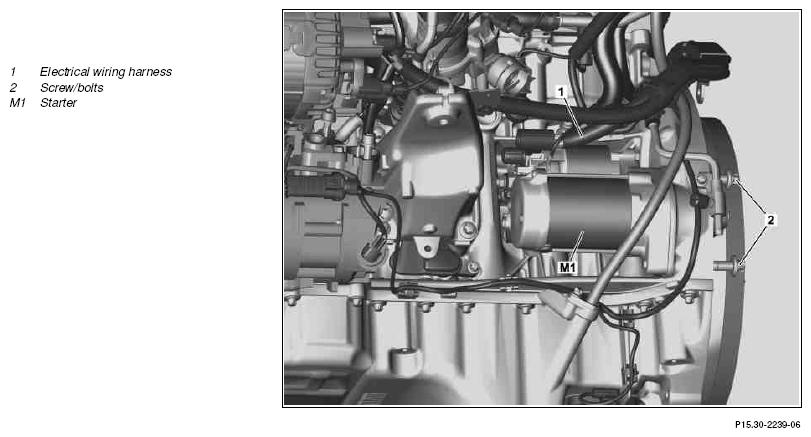

Fig 1: Identifying Starter Remove/Install Components - Shown On Model 212.002

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Disconnect battery ground line	Engine 274 in model 172	AR54.10-P-0003W
		Engine 274 in model 204	AR54.10-P-0003CW
		Engine 274 in model 207 Engine 274 in model 218 Engine 274.9 in model 212 except code 924 (Bivalent natural gas drive)	AR54.10-P-0003EW
2	Remove lower engine compartment paneling	Engine 274 in model 172	AR61.20-P-1105W
		Engine 274 in model 204.9	AR61.20-P-1105CY
		Engine 274 in model 204 (except 204.9), 207 Engine 274 in model 218 Engine 274.9 in model 212 except code 924 (Bivalent natural gas drive)	AR61.20-P-1105EW
3	Detach alternator wiring harness holder at engine support and place to one side
4	Detach electrical wiring harness (1) on starter (M1)		AR15.30-P-7100-03MR
		Nut, connection for terminal designation 50	*BA15.30-P-1002-01J
		Nut, connection for terminal designation 30	*BA15.30-P-1001-01J
5	Remove screw/bolts (2) and remove starter (M1) from bottom	Bolt, starter to crankcase	*BA15.30-P-1003-01J
	Check
6	Check starter ring gear for wear and damage	When replacing the starter (M1). Rotate engine at center Bolt, crankshaft in the direction of engine rotation.
		Socket wrench bit If complaint present ↓ Replace flywheel	Figure
7	Install in the reverse order

Fig 2: Identifying Socket Wrench Bit (001 589 65 09 00)

Courtesy of MERCEDES-BENZ USA
