Outside Temperature Display Temperature Sensor, Component Description - GF54.30-D-4200H
MODEL 906 with CODE (J65) Outside temperature indicator
Location

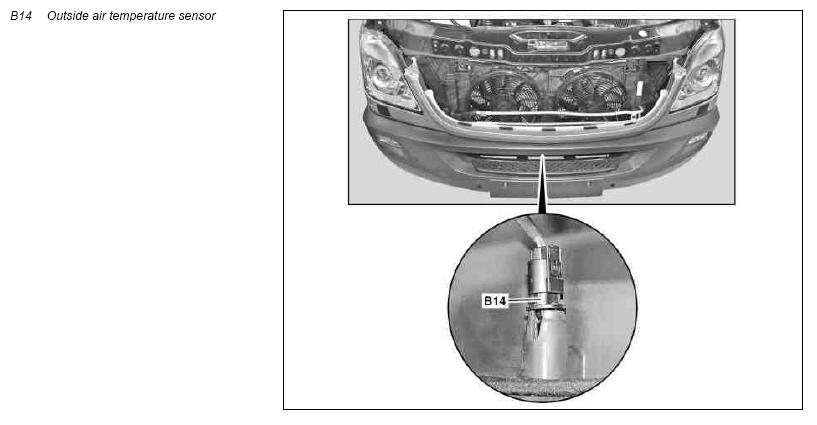

The outside air temperature sensor is located in the center of the front bumper.
Task
The outside air temperature sensor records the current outside temperature and passes it on to the SAM control unit (N10) which places the current outside temperature as a message on the Controller Area Network bus class B (interior) (CAN B).
