Remove/install starter - AR15.30-P-7100MTA
ENGINE 133 in MODEL 117, 156, 176
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Remove/install | |||
| 1 | Remove ME-SFI [ME] control unit | AR07.08-P-7008MT | |
| 2 | Remove air filter housing | AR09.10-P-1150MTA | |
| 3 | Remove battery | AR54.10-P-0005NKB | |
| 4 | Remove the battery bracket | *BA54.10-P-1001-01I | |
| 5 | Detach transmission cooling, cooling module and place to one side with attached lines | AR27.55-P-1500NKB | |

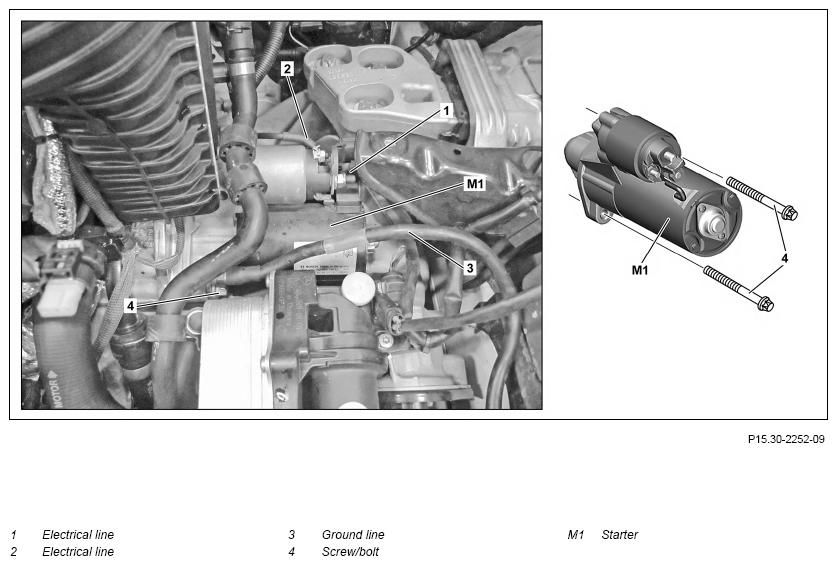

| 6 | Detach electrical line (1) and electrical line (2) on starter (M1) | AR15.30-P-7100-03MTA | |
| *BA15.30-P-1001-01J | |||
| *BA15.30-P-1002-01J | |||
| 7 | Remove screw/bolt (4) and remove starter (M1) upwards | ||
| *BA15.30-P-1003-01J | |||
| Check | |||
| 8 | Check pinion on the starter (M1) for damage and wear | When reusing the starter (M1) |
|
| 9 | Check ring gear on flywheel/drive plate for wear and damage | ↓ Replace flywheel/drive plate |
|
| AR03.30-P-8001NKB | |||
| 11 | Install in the reverse order |
STARTER
| Number | Designation | ENGINE 133 | |
|---|---|---|---|
| BA15.30-P-1001-01J | Nut, connection for terminal designation 30 | Nm | 15 |
STARTER
| Number | Designation | ENGINE 133 | |
|---|---|---|---|
| BA15.30-P-1002-01J | Nut, connection for terminal designation 50 | Nm | 6 |
STARTER
| Number | Designation | ENGINE 133 | |
|---|---|---|---|
| BA15.30-P-1003-01J | Bolt, starter to crankcase | Nm | 40 |
BATTERY
| Number | Designation | MODEL 117 | MODEL 156 | |
|---|---|---|---|---|
| BA54.10-P-1001-01I | Screw/bolt, battery bracket to body | Nm | 20 | 20 |
BATTERY
| Number | Designation | MODEL 176, 246 | |
|---|---|---|---|
| BA54.10-P-1001-01I | Screw/bolt, battery bracket to body | Nm | 20 |
