Remove/install injection system control unit - AR07.08-P-7008MT
ENGINE 133 in MODEL 117, 156, 176
ENGINE 270 in MODEL 117, 156, 176, 242, 246.2
ENGINE 270
ENGINE 133
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Read out variant coding of the ME-SFI [ME] control unit (N3/10) with diagnostic system | When replacing the ME-SFI [ME] control unit (N3/10). | |
| AD00.00-P-2000-04A | |||
| 2 | Switch off ignition | ||
| 3 | Remove battery cover (5) | ENGINE 133 in MODEL 117, 156, 176 | |
| 4 | Expose electrical wiring harness (6) at air filter housing (4) and place to one side | ENGINE 133 in MODEL 117, 156, 176 |
|

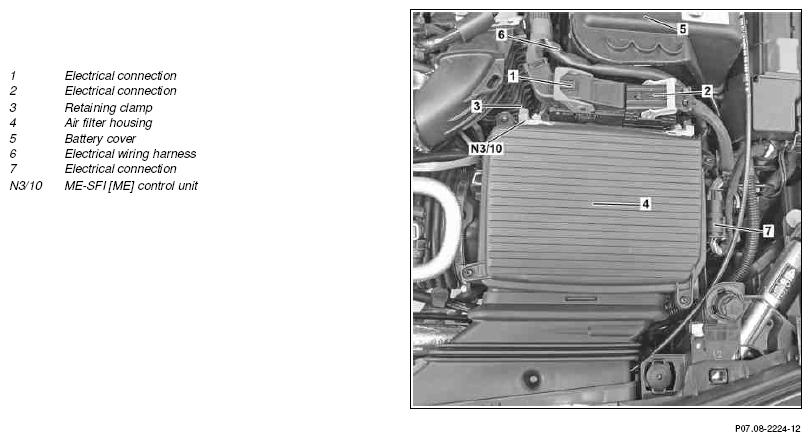

| 5 | Disconnect electrical connections (1, 2) on ME-SFI control unit (N3/10) | ||

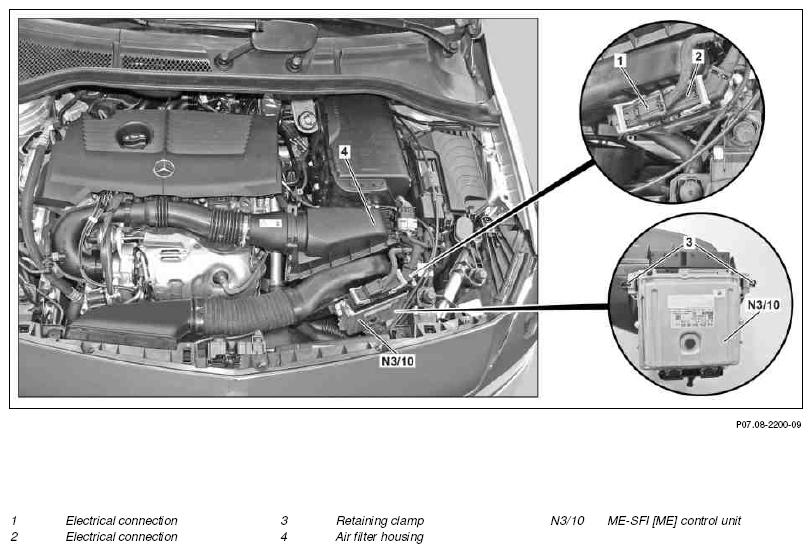

| 6 | Open retaining clamps (3) and remove ME-SFI [ME] control unit (N3/10) from air filter housing (4) | ||
| 7 | Install in the reverse order | ||
| 8 | Perform sensor rotor adaptation with diagnostic system | When replacing the ME-SFI [ME] control unit (N3/10). | |
| AD00.00-P-2000-04A | |||
|
|||
| 9 | Release transport protection on ME-SFI [ME] control unit (N3/10) | When replacing the ME-SFI [ME] control unit (N3/10). | |
| 10 | Personalize and activate ME-SFI [ME] control unit (N3/10) | When replacing the ME-SFI [ME] control unit (N3/10). | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 11 | Carry out an engine test run |
