Remove/Install Radar Sensor - AR30.30-S-1210E
Model 447
With Code JA6 (Active Brake Assist System)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove front bumper | AR88.20-S-2000E | |

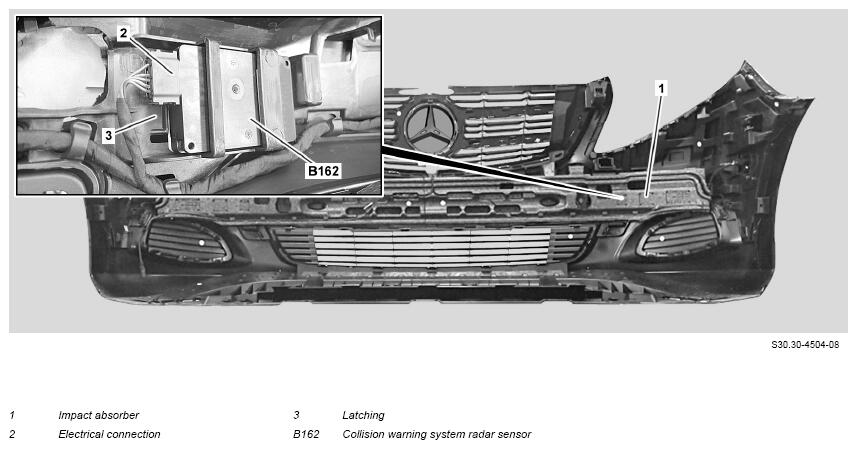

| 2 | Remove impact absorber (1) | ||
| 3 | Disconnect electrical connection (2) | ||
| 4 | Unlock latching (3) and remove collision warning system radar sensor (B162) | ||
| 5 | Install in the reverse order | ||
| 6 | Perform commissioning of the collision warning system radar sensor (B162) with diagnostic system | ||
| AD00.00-S-2000-04E | |||
| 7 | Read out fault memory; clear if necessary | ||
| AD00.00-S-2000-04E |
