Remove/install heated O2 sensor - AR07.52-P-5303LFA
ENGINE 276.8 in MODEL 217, 222
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Remove/install | |||
| 1 | Remove engine compartment paneling | AR61.20-P-1105LF | |
| 2 | Remove bracket for the CATs at transmission | AR49.10-P-7100LF | |
| 3 | Disconnect electrical connection (G3/3x1, G3/4x1, G3/5x1, G3/6x1) of oxygen sensors (G3/3, G3/4, G3/5, G3/6) | ||
| 4 | Unclip electrical lines for oxygen sensors (G3/3, G3/4, G3/5, G3/6) from retaining clamps (3) and brackets | ||
| 5 | Remove oxygen sensors (G3/3, G3/4, G3/5, G3/6) | Paste, hot lubrication 1 kg, DBL 6879.20 |
*BR00.45-Z-1005-06A |
| *BA14.00-P-1005-01A | |||
| *BA14.00-P-1002-01A | |||

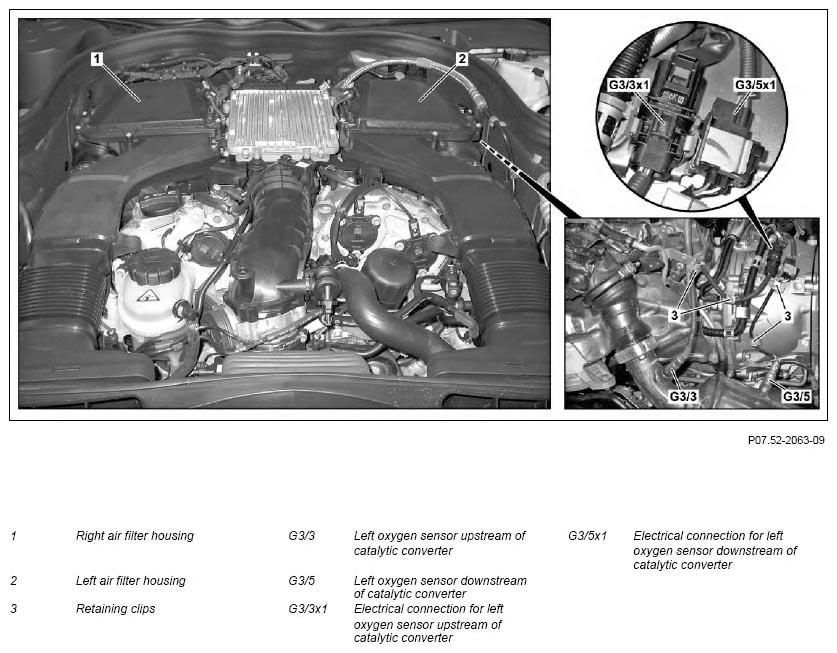

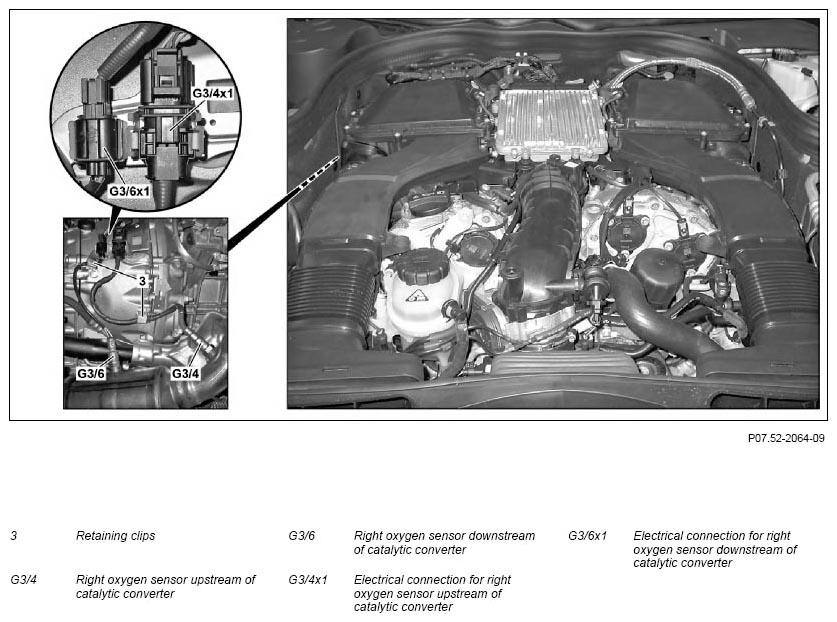

| Figure | |||
| 6 | Install in the reverse order | ||
| 7 | Read out fault memory using the diagnostic system and clear if necessary | ||
| AD00.00-P-2000-04B | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Carry out an engine test run and check exhaust system for leaktightness |
OXYGEN SENSOR
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA14.00-P-1002-01A | Oxygen sensor at catalytic converter | Nm | 50 |
OXYGEN SENSOR
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA14.00-P-1005-01A | Oxygen sensor upstream of catalytic converter | Nm | 50 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1005-06A | Paste, hot lubrication 1 kg, DBL 6879.20 | A 000 989 76 51 |
