Remove/install heated O2 sensor - AR07.52-P-5303RKA

ENGINE 276 in MODEL 231

MODIFICATION NOTES

26.11.2014 Screw/bolt, bracket for front exhaust system to exhaust system/transmission ENGINE 276 in MODEL 231 BA49.10-P-1002-01AM

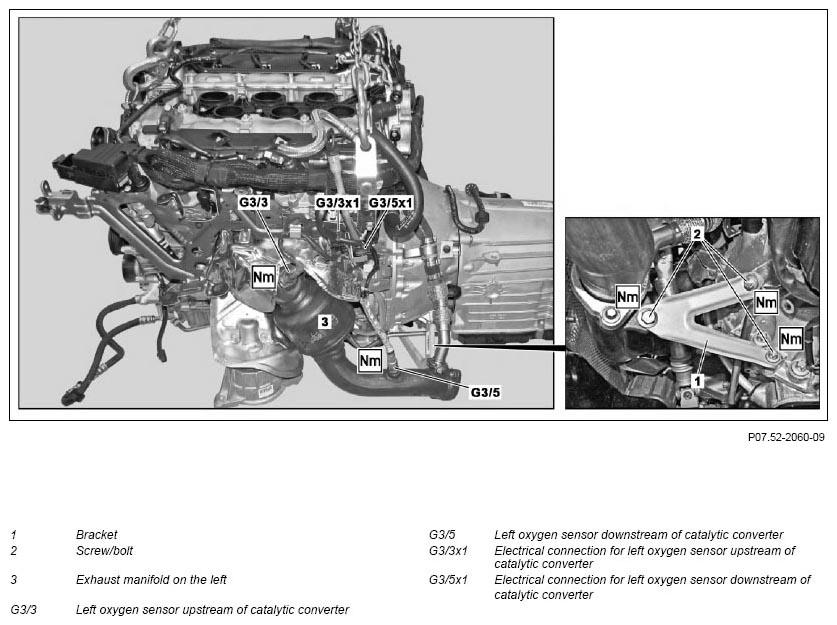

Shown on left side

Fig 1: Heated O2 Sensor Remove/Install Components - Shown On Left Side
G11128393Courtesy of MERCEDES-BENZ USA

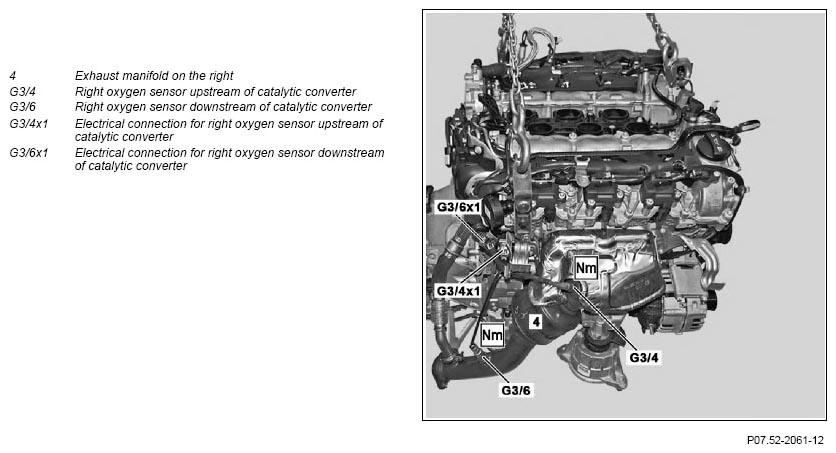

Shown on right-hand side

Fig 2: Heated O2 Sensor Remove/Install Components - Shown On Right-Hand Side
G11128394DANGERDANGERDANGERDANGERNOTESNOTESREMOVINGINSTALLINGTORQUE SPECIFICATIONINSTALLATION IMPORTANTINSTALLATION IMPORTANTTORQUE SPECIFICATIONSPECIAL TOOLINSTALLATION IMPORTANTINSTALLATION IMPORTANTTORQUE SPECIFICATIONSPECIAL TOOLTORQUE SPECIFICATIONTORQUE SPECIFICATIONINSTALLATION IMPORTANTINSTALLATION IMPORTANTTORQUE SPECIFICATIONSPECIAL TOOLREFER TO SELF-DIAGNOSTIC SYSTEMSINSPECTDANGERCourtesy of MERCEDES-BENZ USA
DANGER Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. No parts of the body or limbs should be within the operating area when the components are moving. AS00.00-Z-0011-01A
DANGER Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. AS00.00-Z-0017-01A
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
NOTES Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
REMOVINGINSTALLING Remove/install
1.1 Switch off ignition and remove transmitter key Engine 276 in model 231
except code 889 (KEYLESS-GO)

1.2 Actuate KEYLESS GO start/stop button Engine 276 in model 231
with code 889 (KEYLESS-GO)

2 Remove lower engine compartment paneling   AR61.20-P-1105RK
  Remove oxygen sensor on left or right downstream of CAT (G3/5 or G3/6)
3 Remove screw/bolts (2) and remove bracket (1) between left exhaust manifold (3) or right exhaust manifold (4) and remove transmission housing Engine 276.9 in model 231
TORQUE SPECIFICATION Bolt, bracket for front exhaust system to exhaust system/transmission
*BA49.10-P-1002-01AM
4 Disconnect electrical connection for left oxygen sensor downstream of CAT (G3/5x1) or electrical connection for right oxygen sensor downstream of CAT (G3/6x1)
5 Unclip electrical line for left or right oxygen sensor downstream of CAT (G3/5 or G3/6) from retaining clamps () and bracket INSTALLATION IMPORTANT Ensure respective electrical wiring harness is correctly routed.
6 Remove oxygen sensor on left or right downstream of CAT (G3/5 or G3/6) INSTALLATION IMPORTANT Coat thread with hot lubrication paste.
TORQUE SPECIFICATION Oxygen sensor downstream of catalytic converter *BA14.00-P-1004-01A
Paste, hot lubrication 1 kg, DBL 6879.20 *BR00.45-Z-1005-06A
SPECIAL TOOL Box wrench bit Fig 3
  Remove left oxygen sensor upstream of catalytic converter (G33)
7.1 Remove front upper engine cover Engine 276.9 in model 231
7.2 Remove upper engine cover Engine 276.8 in model 231
8 Remove left air filter housing Engine 276.8 in model 231 AR09.10-P-1150RKA
9 Remove ME-SFI [ME] control unit Engine 276.9 in model 231 AR07.08-P-7008RKA
10 Disconnect electrical connection for left oxygen sensor upstream of catalytic converter (G33x1)
11 Unclip electrical line for oxygen sensor upstream of catalytic converter (G3/3) out of retaining clips and bracket INSTALLATION IMPORTANT Ensure that electrical wiring harness is routed properly.
12 Remove left oxygen sensor upstream of catalytic converter (G33) INSTALLATION IMPORTANT Coat thread with hot lubrication paste.
    TORQUE SPECIFICATION Oxygen sensor upstream of catalytic converter *BA14.00-P-1005-01A
    SPECIAL TOOL Box wrench bit Fig 3
  Remove right oxygen sensor upstream of catalytic converter (G3/4)
13.1 Remove air filter housing Engine 276.9 in model 231
    TORQUE SPECIFICATION Screw/bolt, air filter to cylinder head cover *BA09.10-P-1001-01M
    TORQUE SPECIFICATION Screw/bolt, air filter to air intake pipe support brace *BA09.10-P-1002-01M
13.2 Remove right air filter housing Engine 276.8 in model 231 AR09.10-P-1150RKA
14 Disconnect electrical connection for right oxygen sensor upstream of catalytic converter (G3/4x1)
15 Unclip electrical line for oxygen sensor on the right upstream of catalytic converter (G3/4) out of retaining clips and bracket INSTALLATION IMPORTANT Ensure that electrical wiring harness is routed properly.
16 Remove oxygen sensor on the right upstream of CAT (G3/4) INSTALLATION IMPORTANT Coat thread with hot lubrication paste.
    TORQUE SPECIFICATION Oxygen sensor upstream of catalytic converter *BA14.00-P-1005-01A
    Paste, hot lubrication 1 kg, DBL 6879.20 *BR00.45-Z-1005-06A
    SPECIAL TOOL Box wrench bit Fig 3
17 Install in the reverse order
18 Connect STAR DIAGNOSIS, read out fault memory
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04A
INSPECT Check
DANGER Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
19 Carry out an engine test run and check exhaust system for leaktightness
AIR FILTER

Number Designation Engine 276.9
BA09.10-P-1001-01M Screw/bolt, air filter to cylinder head cover Nm 9
AIR FILTER

Number Designation Engine 276.9
BA09.10-P-1002-01M Screw/bolt, air filter to air intake pipe support brace Nm 9
OXYGEN SENSOR

Number Designation Engine 276
BA14.00-P-1004-01A Oxygen sensor downstream of catalytic converter Nm -
OXYGEN SENSOR

Number Designation Engine 276
BA14.00-P-1005-01A Oxygen sensor upstream of catalytic converter Nm 50
EXHAUST SYSTEM

Number Designation Engine 276 in model 231
BA49.10-P-1002-01AM Bolt, bracket for front exhaust system to exhaust M8 system/transmission Nm 25
Fig 3: Identifying Box Wrench Bit (000 589 71 03 00)
G07694428Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1005-06A Paste, hot lubrication 1 kg, DBL 6879.20 A 000 989 76 51
