Remove/Install Coolant Temperature Sensor - AR15.60-P-2712MNG
Engine 177 in model 253
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. | AS20.00-Z-0001-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Notes on coolant | AH20.00-N-2080-01A | ||
| Remove/install | |||
| 1 | Drain off coolant | AR20.00-P-1142MNG | |
| 2 | Remove left-hand air filter housing | AR09.10-P-1151MNG | |

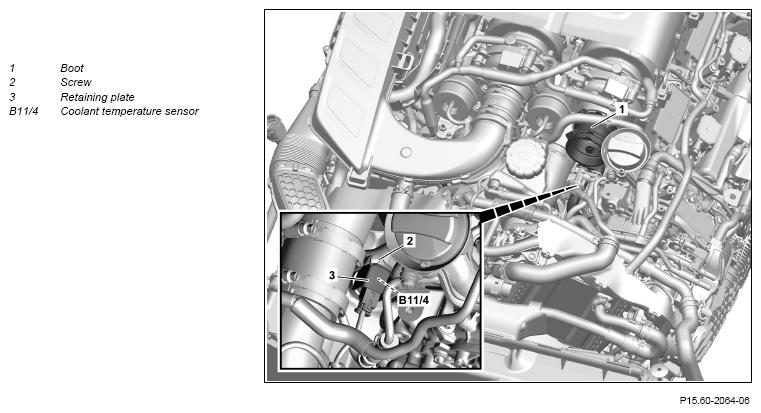

| 3 | Remove boot (1) from exhaust gas turbocharger and place to one side | *BA01.20-P-1003-01J | |
| 4 | Close opening of exhaust gas turbocharger with | ||
| 5 | Release and disconnect electrical connector of coolant temperature sensor (B11/4) | ||
| 6 | Remove screw/bolt (2) | *BA07.04-P-1002-01Q | |
| 7 | Remove coolant temperature sensor (B11/4) | ||
| 8 | Remove retaining plate (3) from coolant temperature sensor (B11/4) | When replacing the coolant temperature sensor (B11/4). | |
| 9 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 10 | Perform an engine test run and check engine for proper function | ||
| 11 | Install center and front lower engine compartment paneling | AR61.20-P-1105LW |
CRANKCASE VENTILATION SYSTEM, CYLINDER HEAD COVER
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA01.20-P-1003-01J | Clamp, boot to exhaust gas turbocharger/air filter | Nm | 1, 5 |
SENSORS
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA07.04-P-1002-01Q | Bolt, temperature sensor bracket to crankcase | Nm | 9 |
