Remove/Install Knock Sensor - AR15.12-P-2185GQ
ENGINE 651 in MODEL 166, 172
Shown on model 166
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove upper engine cover | ||
| Removal of knock sensor 2 (A16/2) (model 166) or knock sensor for cylinder 1+2 (A16/4) (model 172) | |||
| 2 | Remove firewall cover on the left | Engine 651 in model 172 | |
| 3 | Detach exhaust gas recirculation cooler and place with attached coolant lines to one side | AR14.20-P-7665CD | |
| 4 | Place power steering pump with attached coolant lines to one side | Engine 651 in model 172 | |
| Engine 651 in model 172 as of model year 2016 | AR46.30-P-0500RD | ||
| Engine 651 in model 172 up to model year 2016 | AR46.30-P-0500EWI | ||
| 5.1 | Detach exhaust gas recirculation cooler bypass switchover valve and place to one side | Engine 651 in model 172 | AR14.20-P-7660CD |
| 5.2 | Remove exhaust gas recirculation cooler bypass switchover valve holder | Engine 651 in model 166 | AR14.20-P-7660CD |
| 6 | Release and disconnect electrical connection (3) | ||
| 7 | Release and disconnect electrical connection (4) | ||
| 8 | Detach clamping devices (5) with electrical wiring harness from exhaust gas recirculation cooler holder (2) | ||
| 9 | Remove screw/bolt (1) and remove exhaust gas recirculation cooler holder (2) | *BA14.20-P-1017-01K | |

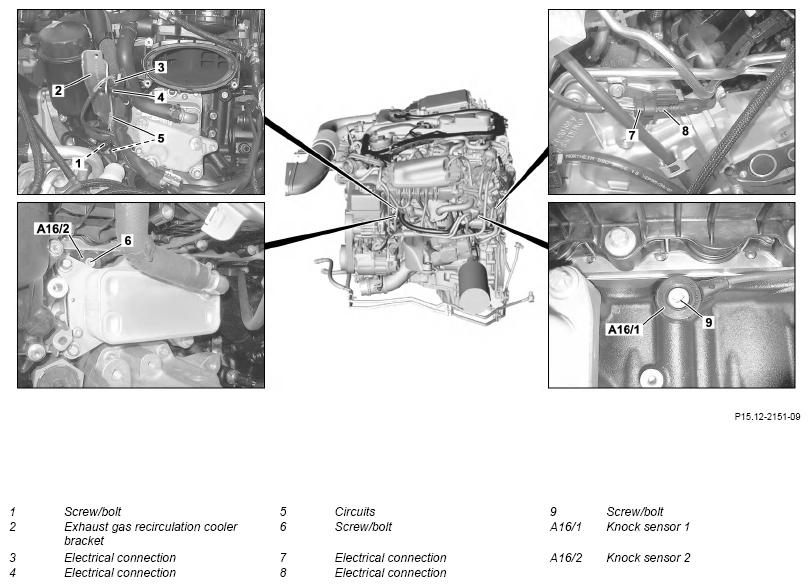

| 10 | Remove screw/bolt (6) and remove knock sensor 2 (A16/2) (model 166) or knock sensor for cylinder 1+2 (A16/4) (model 172) | *BA15.10-P-1001-02E | |
| Removal of knock sensor 1 (A16/1) (model 166) or knock sensor for cylinder 3+4 (A16/1) (model 172) | |||
| 11 | Remove exhaust gas recirculation valve | AR14.20-P-7662GQ | |
| 12 | Release and disconnect electrical connection (7) | ||
| 13 | Release and disconnect electrical connection (8) | ||
| 14 | Remove screw/bolt (9) and remove knock sensor (A16/1) (model 166) or knock sensor for cylinder 3+4 (A16/1) (model 172) | *BA15.10-P-1001-02E | |
| 15 | Install in the reverse order |
EXHAUST GAS RECIRCULATION
| Number | Designation | Engine 651 | |
|---|---|---|---|
| BA14.20-P-1017-01K | Bolt, exhaust heat exchanger support to oil filter module | Nm | 20 |
KNOCK SENSORS
| Number | Designation | Engine 651 | |
|---|---|---|---|
| BA15.10-P-1001-02E | Bolt, knock sensor to cylinder crankcase | Nm | 20 |
