Remove/Install Crankshaft Position Sensor - AR15.12-P-2133CD
ENGINES 651 in MODELS 166, 172, 204, 207, 212, 218, 221

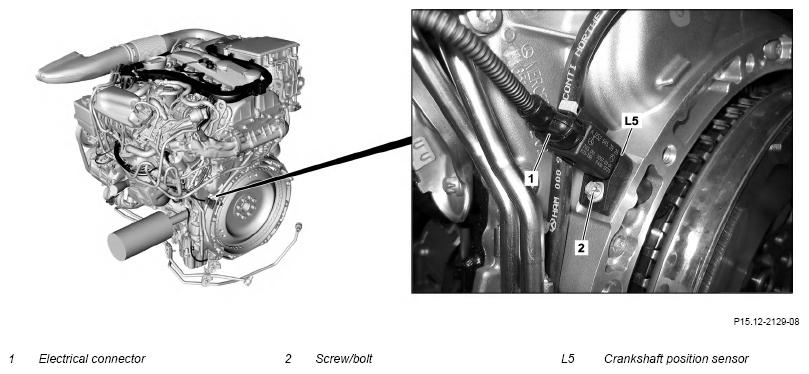

Shown on engine 651.911
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1.1 | Remove underfloor paneling | Model 166 | AR61.30-P-1001GQ |
| 1.2 | Remove rear bottom part of soundproofing | Model 172 | AR94.30-P-5300W |
| Model 204.0/2/3, 207, 212, 218 | AR94.30-P-5300EW | ||
| 1.3 | Detach lower engine compartment paneling | Model 221 | AR61.20-P-1105SX |
| Model 204.9 | AR61.20-P-1105CY | ||
| 2 | Disconnect electrical connector (1) on crankshaft position sensor (L5) | ||
| 3 | Remove screw/bolt (2) and remove crankshaft position sensor (L5) | *BA15.10-P-1001-03H | |
| 4 | Install in the reverse order |
HALL SENSOR
| Number | Designation | Engine 651 | |
|---|---|---|---|
| BA15.10-P-1001-03H | Crankshaft position sensor to cylinder crankcase | Nm | 8 |
