Remove/Install Starter - AR15.30-P-7100CD

ENGINE 651 in MODEL 166, 172, 204, 207, 212 (except 212.098/298), 218, 221

Shown on engine without code (B03) ECO start/stop function

G11972936

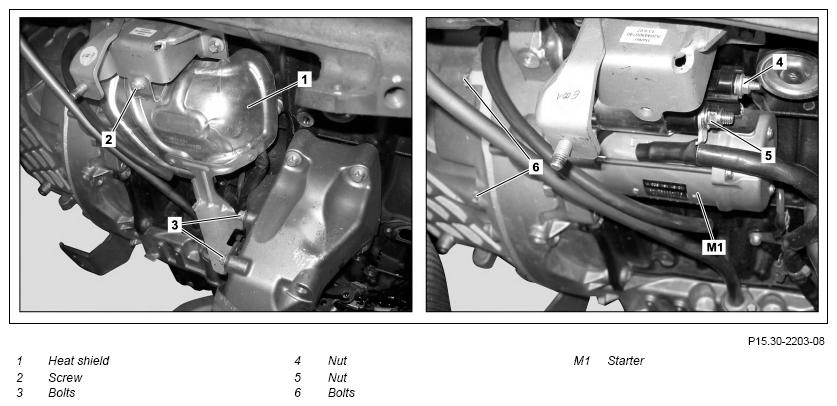

Shown on model 166

G11972937

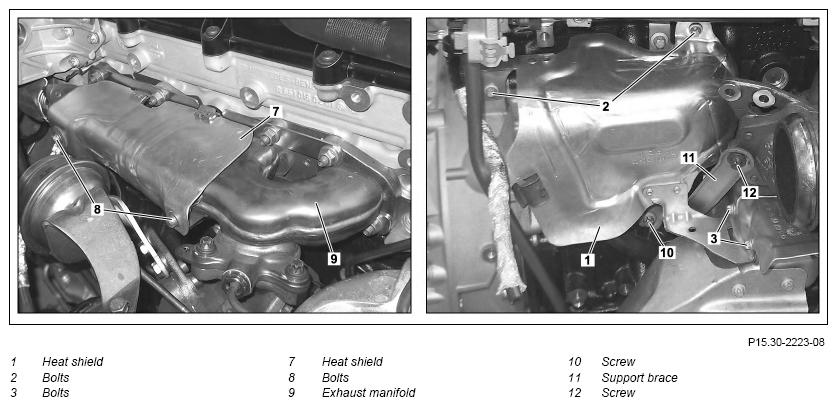

Shown on model 204

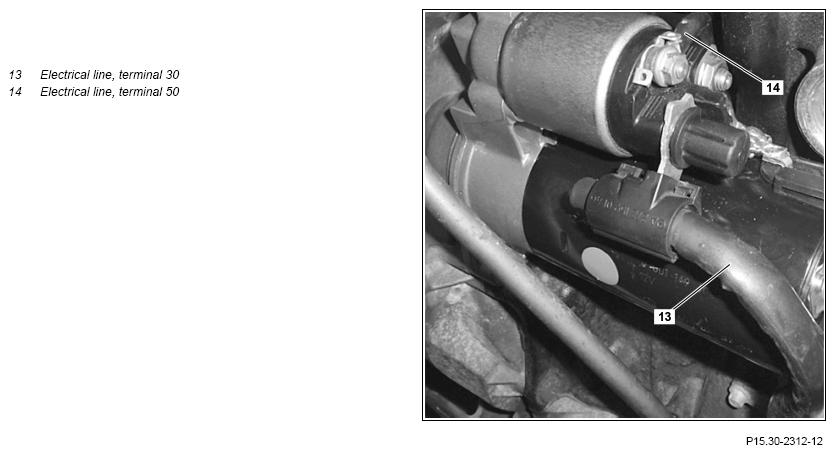

G11972938
  Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
WARNING Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
  Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
REMOVINGINSTALLING Remove/install
1 Disconnect ground line at the on-board electrical system battery Model 221 with engine 651 AR54.10-P-0003SX
  Notes on battery   AH54.10-P-0001-01A
    Model 172 with engine 651 AR54.10-P-0003W
    Model 166 with engine 651 AR54.10-P-0003GZ
    Model 204 with engine 651 AR54.10-P-0003CW
    Model 207, 212 (except 212.098/298), 218 with engine 651
NOTES
Insulate ground line of battery.
Otherwise the disconnected ground line may accidentally come into contact with the ground point of the battery.
IMPORTANT Do not connect no-load current retention unit.
AR54.10-P-0003EW
2 Remove lower engine compartment paneling Model 166 with engine 651 AR61.30-P-1001GQ
    Model 172 with engine 651 AR94.30-P-5300W
    Model 204 (except 204.9), 207, 212 (except 212.098/298), 218 with engine 651 AR94.30-P-5300EW
    Model 204.9 with engine 651 AR61.20-P-1105CY
    Model 221 with engine 651 AR61.20-P-1105SX
3.1 Remove catalytic converter and diesel particulate filter Vehicles with catalytic converter and a diesel particulate filter.
    Engine 651 in model 221 AR49.10-P-5501SXI
    Engine 651 in model 172, 204 (except 204.9), 207, 212 (except 212.098/298), 218, 221 AR49.10-P-5501CD
    Engine 651 in model 166 AR49.10-P-5501GQ
3.2 Remove catalytic converter Vehicles with catalytic converter.
Engine 651 in model 204.9, 212.08/28, 212.09 (except 212.098), 212.29 (except 212.298)
AR49.10-P-5500OMD
3.3 Remove the diesel particulate filter Vehicle with diesel particulate filter.
Engine 651 in model 204, 212 with transmission 722.9
AR14.40-P-1000OMD
4 Remove screws/bolts (8) Model 166 with engine 651
TORQUE SPECIFICATION Bolt, shield to exhaust manifold
*BA14.10-P-1002-01P
5 Remove heat shield (7) on exhaust manifold (9) Model 166 with engine 651
6 Unscrew screws (2, 3) TORQUE SPECIFICATION Bolt, heat shield to engine support *BA22.10-P-1003-02A
    TORQUE SPECIFICATION Heat shield on starter *BA15.30-P-1004-01P
7 Unfasten heat shield (1) at retaining clamp and remove
8 Detach contact protection, unscrew nut (5) and remove circuit 30 electric line (13) from starter (M1) TORQUE SPECIFICATION Nut, connection for circuit 30 *BA15.30-P-1002-01P
9 Unscrew nut (4) and remove circuit 50 electric line (14) from starter (M1) INSTALLATION NOTES
Route circuit 50 electric line (14) between starter (M1) and crankcase.
Otherwise, the circuit 50 electric line (14) will chafe against the heat shield (1).
TORQUE SPECIFICATION Nut, circuit 50 connection
*BA15.30-P-1003-01P
10 Remove screws/bolts (10, 12) and take off rear support brace (11) for exhaust gas turbocharger IMPORTANT Only in vehicles with sequential turbocharging.
TORQUE SPECIFICATION Bolt, bracket for rear/center exhaust gas turbocharger to crankcase
*BA09.40-P-1003-01P
    TORQUE SPECIFICATION Bolt, turbocharger bracket to rear/center to turbocharger *BA09.40-P-1002-01P
11 Remove bolts (6) IMPORTANT When loosening upper screw/bolt (6) a suitable extension should be led at and past the rear engine mount over the transmission to the upper screw/bolt (6) in order to ease removal.
TORQUE SPECIFICATION Bolt, starter to major assembly carrier/crankcase
*BA15.30-P-1001-01P
12 Remove starter (M1) from below
13 Check pinion of starter (M1) for damage and wear When reusing the starter (M1).
If damaged or worn
Replace starter (M1).

14 Check starter ring gear at flywheel/drive plate for wear and damage If damaged or worn

Replace flywheel/drive plate.
AR03.30-P-8001CD
15 Install in the reverse order
TURBOCHARGER

Number Designation Engine 651
BA09.40-P-1002-01P Bolt, turbocharger bracket to rear/center to turbocharger Nm 20
TURBOCHARGER

Number Designation Engine 651
BA09.40-P-1003-01P Bolt, bracket for rear/center exhaust gas turbocharger to crankcase Nm 20
EXHAUST MANIFOLD

Number Designation Engine 651
BA14.10-P-1002-01P Bolt, shield to exhaust manifold Nm 8
STARTER

Number Designation Engine 651
BA15.30-P-1001-01P Bolt, starter to major assembly carrier/crankcase Nm 40
STARTER

Number Designation Engine 651
BA15.30-P-1002-01P Nut, connection for circuit 30 Nm 14
STARTER

Number Designation Engine 651
BA15.30-P-1003-01P Nut, circuit 50 connection Nm 6
STARTER

Number Designation Engine 651
BA15.30-P-1004-01P Heat shield on starter Nm 9
ENGINE SUPPORT (ENGINE SIDE)

Number Designation Engine 651
BA22.10-P-1003-02A Bolt, heat shield to engine support Nm 9
