Remove/Install Alternator - AR15.40-P-5032MLJ
Model 166 with engine 157, 278
Model 292 with engine 157, 278
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Remove/install | |||
| 1 | Detach ground line from battery | AR54.10-P-0003GZ | |
| Notes on battery | AH54.10-P-0001-01A | ||
| 2 | Remove front underfloor paneling | AR61.30-P-1001GQ | |
| 3 | Loosen Active Roll Stabilization on both sides and lower | Model 166, 292 with engine 157, 278 with code 468 (ACTIVE CURVE SYSTEM) | |
| 4 | Loosen stabilizer bar on frame on one side | Model 166, 292 with engine 157, 278 except code 468 (ACTIVE CURVE SYSTEM) | |

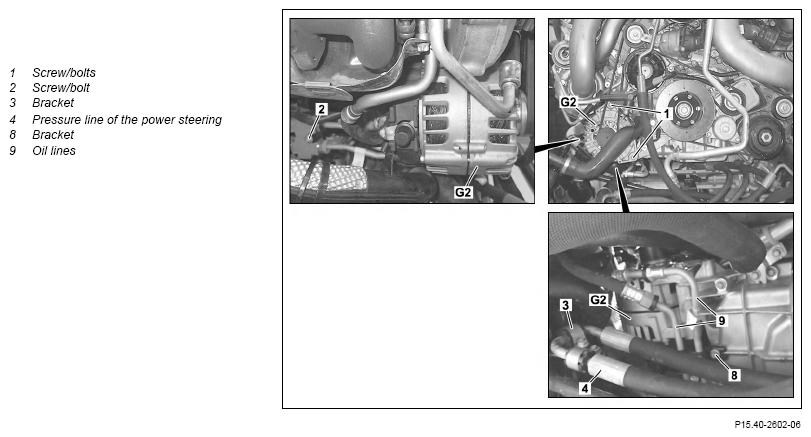

| 5 | Unfasten bracket (8) for oil lines (9) on oil pan and place to one side | ||
| 6 | Unfasten screw/bolt (2) on thermostat | ||
| 7 | Detach pressure line (4) for P/S with bracket (3) and place to one side. | Model 166, 292 with engine 157 | |
| 8 | Unclip oil line of cooler | Model 166, 292 with engine 157 | |
| 9 | Remove poly-V belt | AR13.22-P-1202MLJ | |

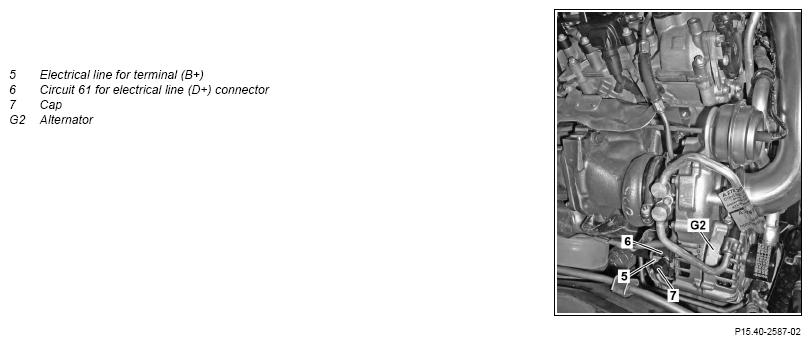

| 10 | Release and detach connector for electrical line 61 (D+) (6) | ||
| 11 | Detach cap (7), unscrew nut and remove electrical line for terminal (B+) (5) from alternator (G2) | *BA15.40-P-1002-01F | |
| 12 | Remove screw/bolts (1) for alternator (G2) | *BA15.40-P-1001-01F | |
| 13 | Take alternator (G2) down and out | ||
| 14 | Install in the reverse order |
ALTERNATOR
| Number | Designation | Engine 157 | Engine 278 | ||
|---|---|---|---|---|---|
| BA15.40-P-1001-01F | Bolt, alternator to timing case | Stage 1 | Nm | 20 | 20 |
| Stage 2 | Nm | - | - | ||
ALTERNATOR
| Number | Designation | Engine 157 | Engine 278 | |
|---|---|---|---|---|
| BA15.40-P-1002-01F | Nut, circuit B+ to alternator | Nm | 15 | 15 |
