Remove/Install Starter - AR15.30-P-7100OGR

Engine 642 in model 166, 292

Shown on model 166

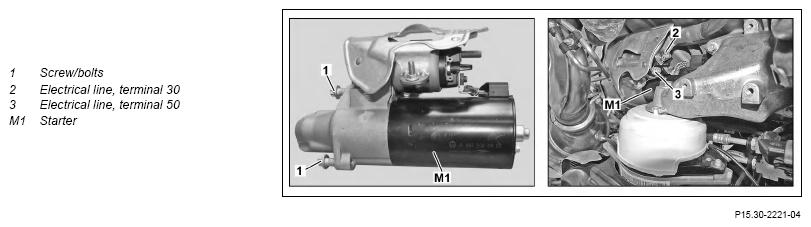

Fig 1: Starter Components Location - Engine 642 In Model 166

Courtesy of MERCEDES-BENZ USA

	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Remove/install
1	Remove right engine mount with engine support		AR22.10-P-1260OGR
2	Remove screw/bolt (1)	Screw/bolt, starter to cylinder crankcase	*BA15.30-P-1003-01N
3	Remove protection against accidental contact for circuit 30 (2) electrical line from starter (M1
4	Detach electrical line of circuit 30 (2) from starter (M1)	Nut, connection for circuit 30	*BA15.30-P-1001-01N
5	Disconnect electrical line of circuit 50 (3) from starter (M1)	Nut, connection for circuit 50	*BA15.30-P-1002-01N
6	Take out starter (M1) upwards
7	Remove upper engine cover	Ensure correct seating of the engine cover.
8	Unclip pipework for Active Roll Stabilization on impact plate	Engine 642 in model 166, 292 with code 468 (ACTIVE CURVE SYSTEM) For turning the engine at the center bolt of the crankshaft The impact plate is installed in front of the belt drive.
9	Remove impact plate	For turning the engine at the center bolt of the crankshaft
10	Check ring gear on drive plate for wear and damage		AR03.30-P-8001OGR
		For replacement of starter (M1), rotate engine at the center bolt of the crankshaft in the direction of engine rotation. If worn or damaged: ↓ Replace drive plate.
11	Install in the reverse order
