Overview Of System Components Of Comfort Heating Systems - GF91.30-P-9990GN

Model 166

as of model year 2016

with code 311 (Temperature-controlled cup holder)

Model 166

as of model year 2016

with code 401 (Climatised front seats)

Model 166

as of model year 2016

with code 443 (Heated steering wheel)

Model 166

as of model year 2016

with code 872 (Left and right rear seat heating)

Model 166

as of model year 2016

with code 873 (Left and right driver's seat heating)

Model 292

with code 311 (Temperature-controlled cup holder)

Model 292

with code 401 (Climatised front seats)

Model 292

with code 443 (Heated steering wheel)

Model 292

with code 872 (Left and right rear seat heating)

Model 292

with code 873 (Left and right driver's seat heating)

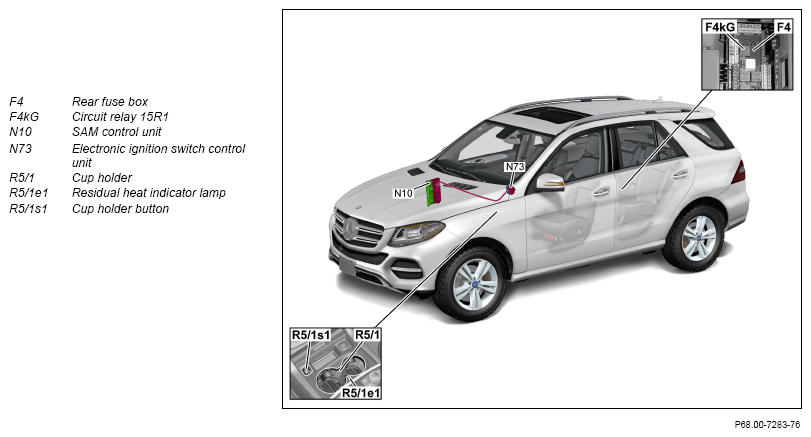

Temperature-controlled cup holder (with CODE 311 (Temperature-controlled cup holder)), shown on model 166.0

G14139408Courtesy of MERCEDES-BENZ USA

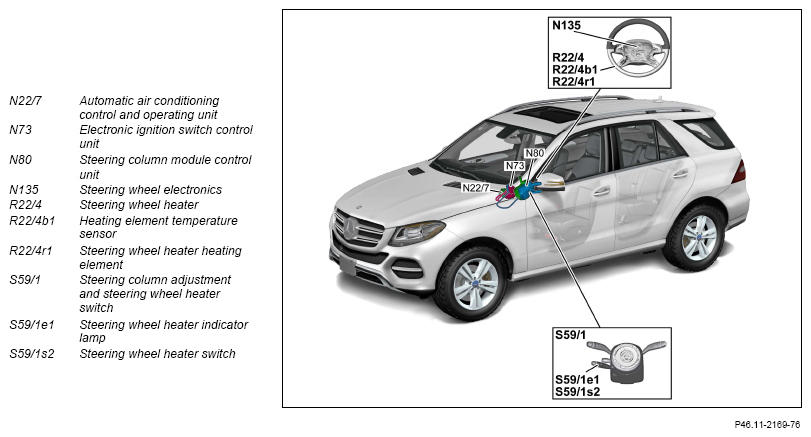

Steering wheel heater (LRH) (with CODE 443 (Steering wheel heater)), shown on model 166.0

G14139409Courtesy of MERCEDES-BENZ USA

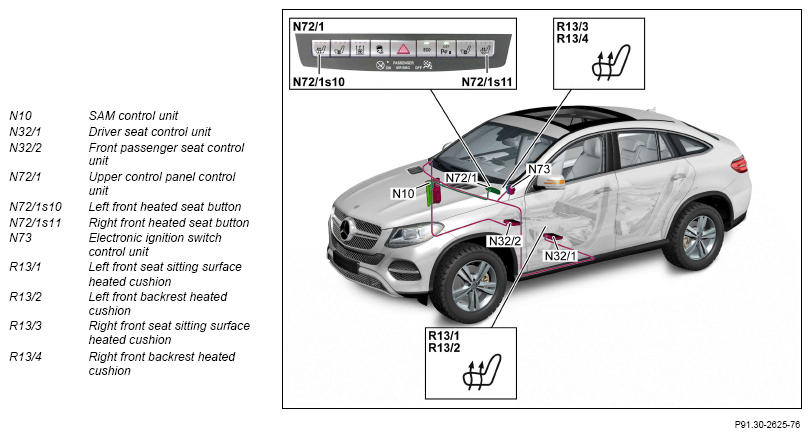

Front seat heater (with CODE 873 (Seat heater for driver and front passenger) or CODE 401 (Seat climate control for driver and front passenger)), shown on model 292

G14139410Courtesy of MERCEDES-BENZ USA

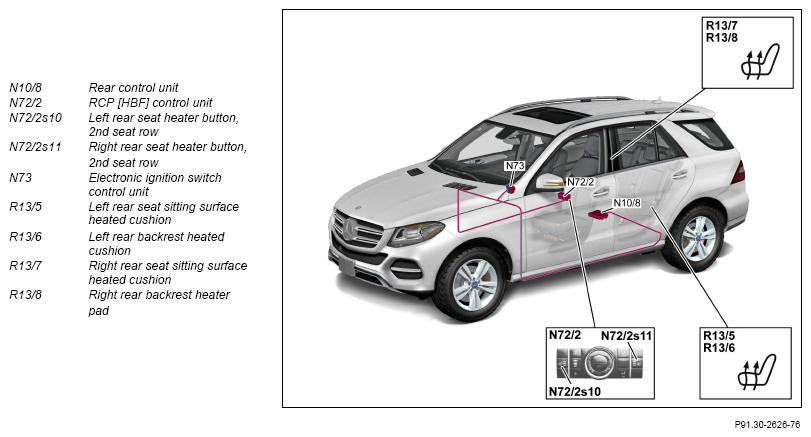

Seat heater for rear seats (with CODE 872 (Seat heater in rear)), shown on model 166.0

G14139411Courtesy of MERCEDES-BENZ USA

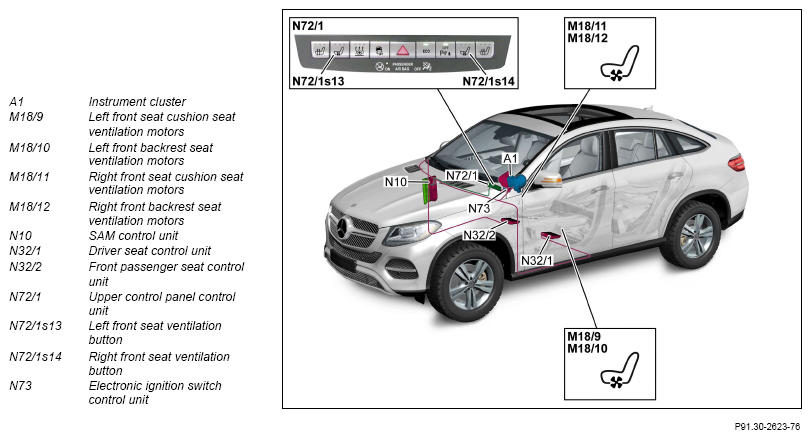

(Seat climate control for driver and front passenger)), shown on model 292

G14139412Courtesy of MERCEDES-BENZ USA
  Component description for instrument cluster A1 GF54.30-P-6000GN
  SAM control unit, component description N10 GF54.21-P-4157GN
  Rear control unit, component description N10/8 GF54.21-P-4134GN
  Component description for climate control control and operating unit N22/7 GF83.40-P-3002GN
  Component description for driver seat control unit Model 166
as of model year 2016
with code 275 (Memory Package (driver's seat, steering column and mirror))
with code 401 (Climatised front seats)
Model 166
as of model year 2016
with code 275 (Memory Package (driver's seat, steering column and mirror))
with code 873 (Left and right driver's seat heating)
Model 292
with code 275 (Memory Package (driver's seat, steering column and mirror))
with code 401 (Climatised front seats)
Model 292
with code 275 (Memory Package (driver's seat, steering column and mirror))
with code 873 (Left and right driver's seat heating)
N32/1		 GF91.29-P-5231GN
    Model 166
as of model year 2016
with code 401 (Climatised front seats)
except code 275 (Memory Package (driver's seat, steering column and mirror))
Model 166
as of model year 2016
with code 873 (Left and right driver's seat heating)
except code 275 (Memory Package (driver's seat, steering column and mirror))
Model 292
with code 401 (Climatised front seats)
except code 275 (Memory Package (driver's seat, steering column and mirror))
Model 292
with code 873 (Left and right driver's seat heating)
except code 275 (Memory Package (driver's seat, steering column and mirror))
N32/1		 GF91.29-P-5231GNA
  Component description for front passenger seat control unit Model 166
as of model year 2016
with code 401 (Climatised front seats)
with code P64 (Memory package)
Model 166
as of model year 2016
with code 873 (Left and right driver's seat heating)
with code P64 (Memory package)
Model 292
with code 401 (Climatised front seats)
with code P64 (Memory package)
Model 292
with code 873 (Left and right driver's seat heating)
with code P64 (Memory package)
N32/2		 GF91.29-P-5241GN
    Model 166
as of model year 2016
with code 401 (Climatised front seats)
except code P64 (Memory package)
Model 166
as of model year 2016
with code 873 (Left and right driver's seat heating)
except code P64 (Memory package)
Model 292
with code 401 (Climatised front seats)
except code P64 (Memory package)
Model 292
with code 873 (Left and right driver's seat heating)
except code P64 (Memory package)
N32/2		 GF91.29-P-5241GNA
  Upper control panel control unit, component description N72/1 GF54.21-P-6040GN
  Rear control panel control unit, component description Model 166 as of model year 2016
with code 872 (Left and right rear seat heating)
Model 292
with code 872 (Left and right rear seat heating)
N72/2		 GF83.40-P-3020GN
  Component description for the electronic ignition lock control unit N73 GF80.57-P-6001GN
  Component description for steering column tube module control unit N80 GF54.21-P-6051GN
  Table of contents for function description of comfort heating systems   GF91.30-P-0999GN
