Remove/install starter - AR15.30-P-7100RKA
ENGINE 276 in MODEL 231
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Remove/install | |||
| 1 | Disconnect ground line at battery | AR54.10-P-0003RK | |
| Notes on battery | AH54.10-P-0001-01A | ||
| 2 | Remove lower engine compartment paneling | AR61.20-P-1105RK | |
| 3 | Remove heat shield on right engine mount | ENGINE 276.8 in MODEL 231 | AR22.10-P-4330RKA |

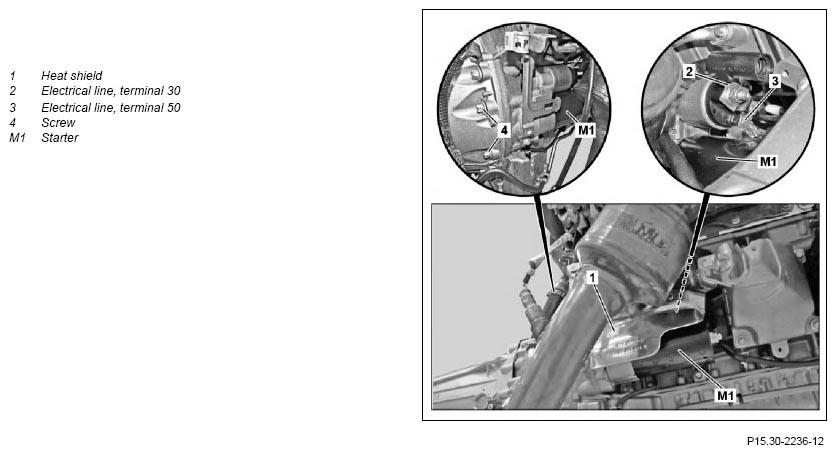

| 4 | Remove heat shield (1) | ||
| 5 | Remove contact protection on circuit 30 electrical line (2) | ||
| 6 | Disconnect electrical line of circuit 30 (2) at starter (M1) | *BA15.30-P-1001-01J | |
| 7 | Disconnect electrical line of circuit 50 (3) at starter (M1) | *BA15.30-P-1002-01J | |
| 8 | Remove starter (M1) | *BA15.30-P-1003-01J | |
| Check | |||
| 9 | Check ring gear at the drive plate for wear and damage | If there are problems: ↓ Replace drive plate Remove/install flywheel/drive plate |
AR03.30-P-8001RK |
| 10 | Install in the reverse order |
STARTER
| Number | Designation | ENGINE 276 | |
|---|---|---|---|
| BA15.30-P-1001-01J | Nut, connection for terminal designation 30 | Nm | 15 |
STARTER
| Number | Designation | ENGINE 276 | |
|---|---|---|---|
| BA15.30-P-1002-01J | Nut, connection for terminal designation 50 | Nm | 6 |
STARTER
| Number | Designation | ENGINE 276 | |
|---|---|---|---|
| BA15.30-P-1003-01J | Bolt, starter to crankcase | Nm | 40 |
