Overview Of System Components For Gasoline Injection And Ignition System With Direct Injection - GF07.70-P-9998MNC
Engine 276.8 in model 172.4

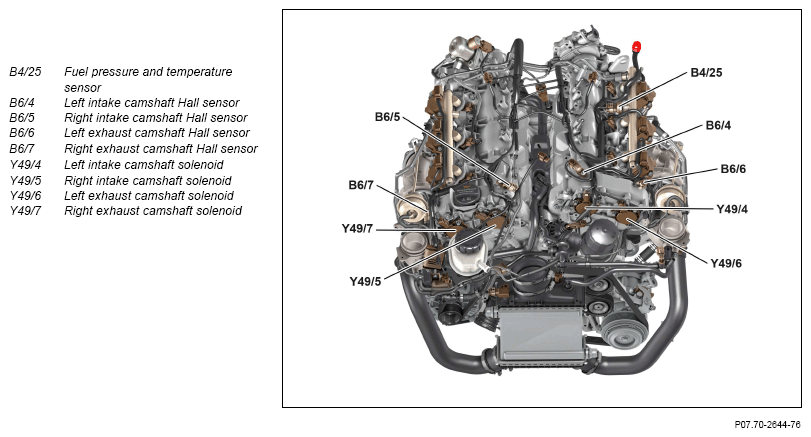

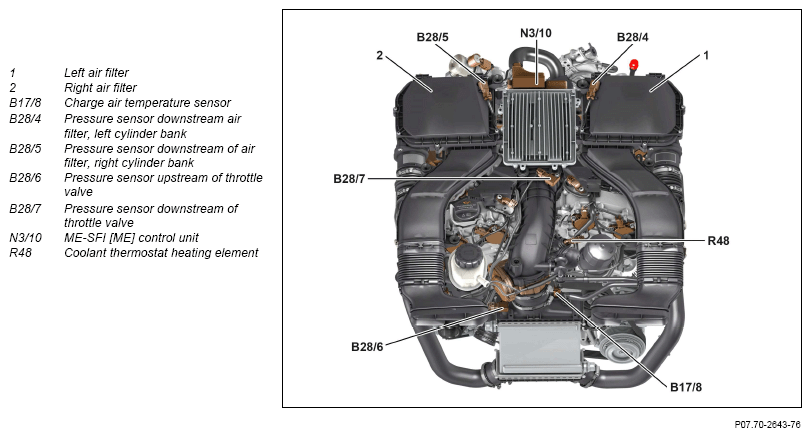

View of engine from top front

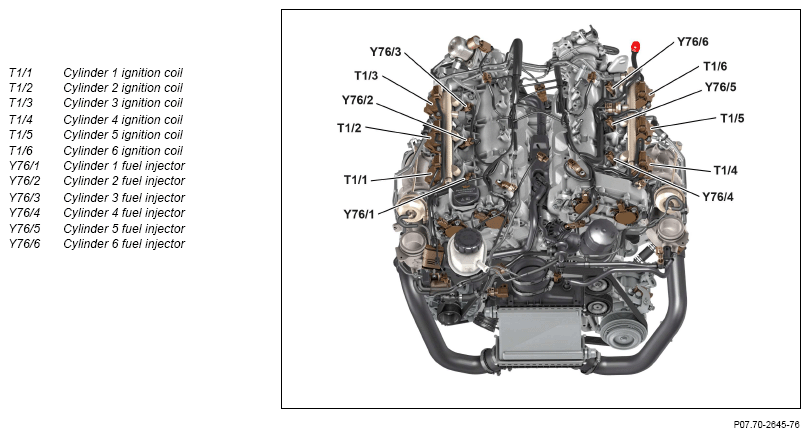

View of engine from top front
View of engine from top front

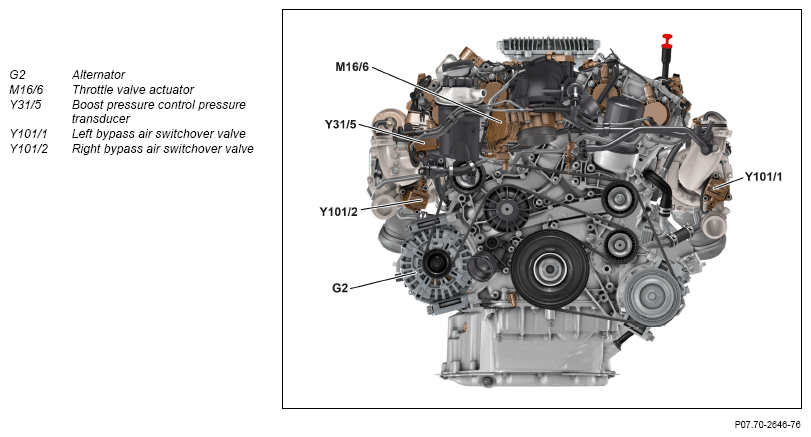

Front view of engine

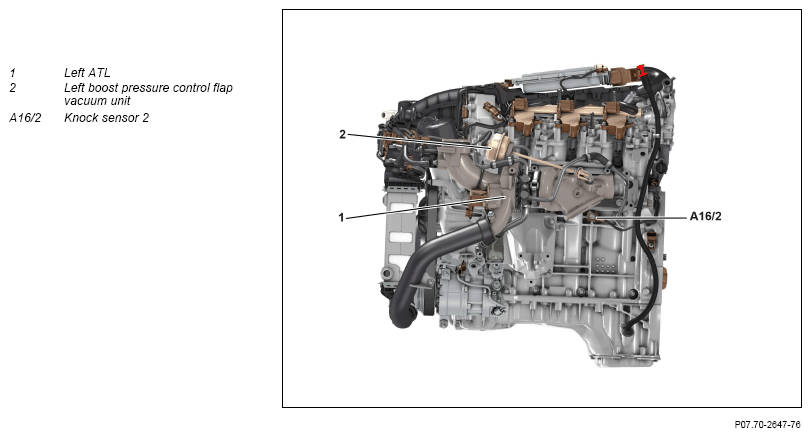

View of engine from left

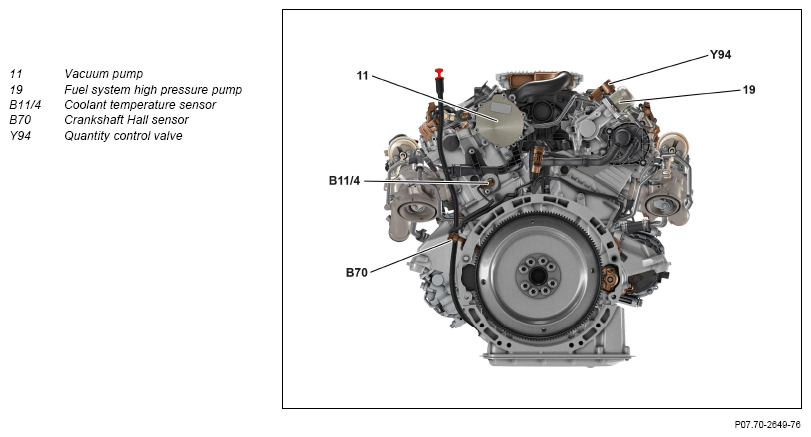

View of engine from rear

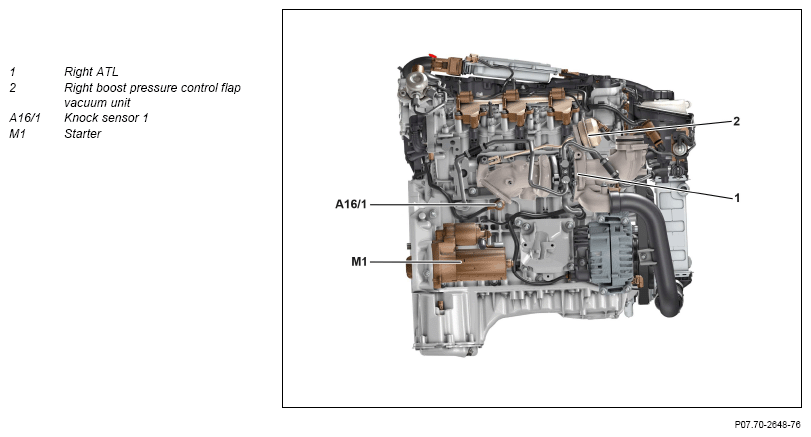

View of engine from right

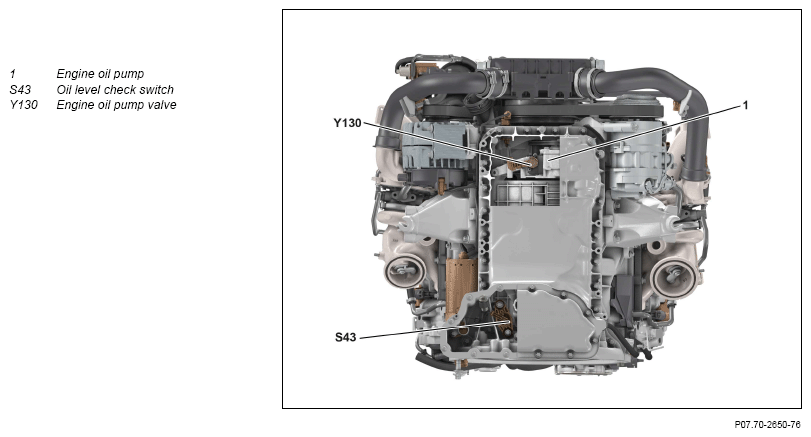

View of engine from below

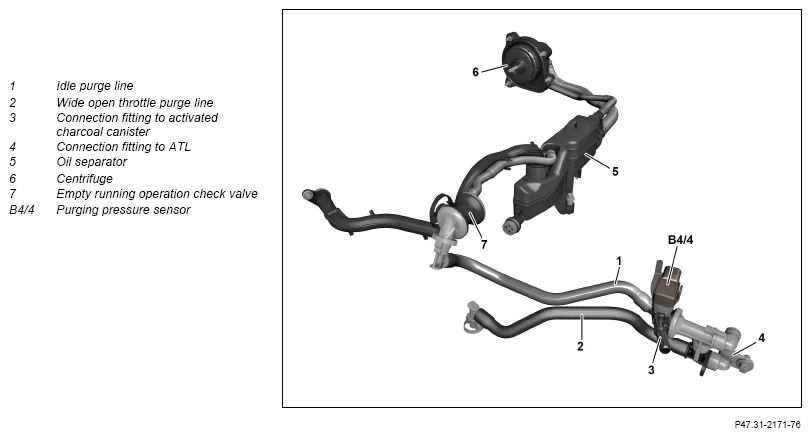

View of engine aeration and ventilation system (for code 494 (USA version))

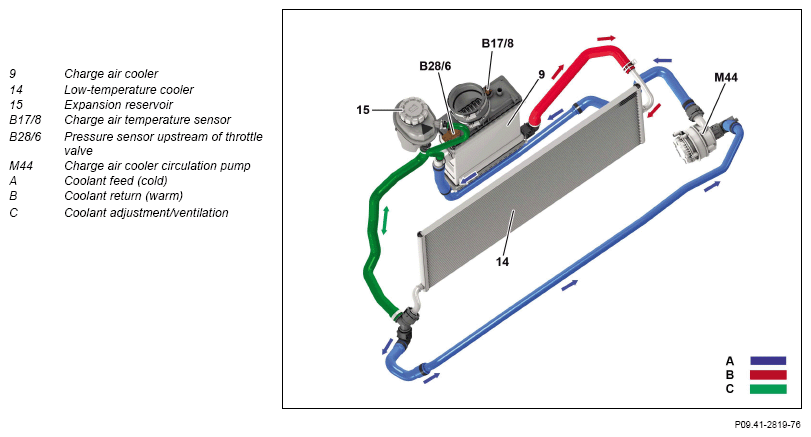

View of low-temperature circuit

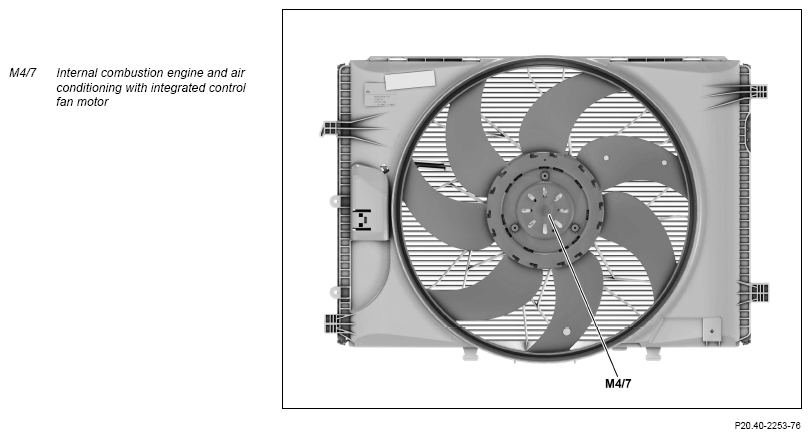

View of engine radiator from rear

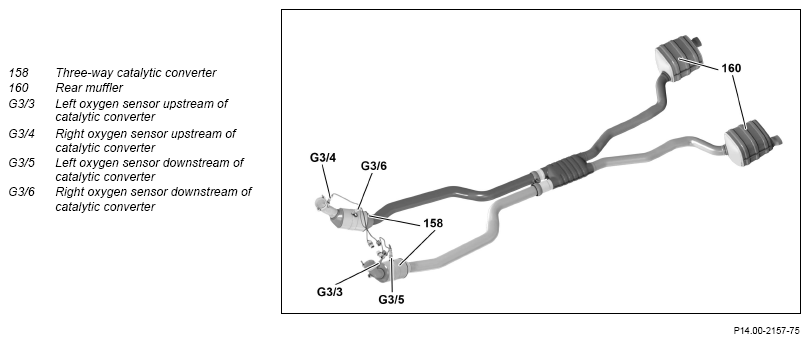

Display of exhaust system

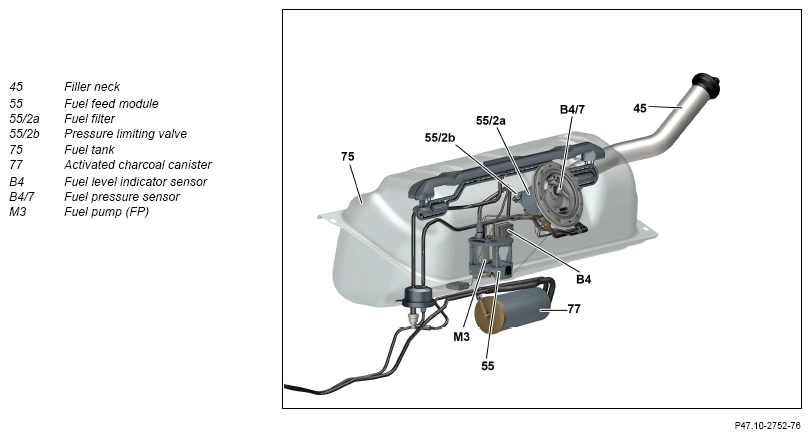

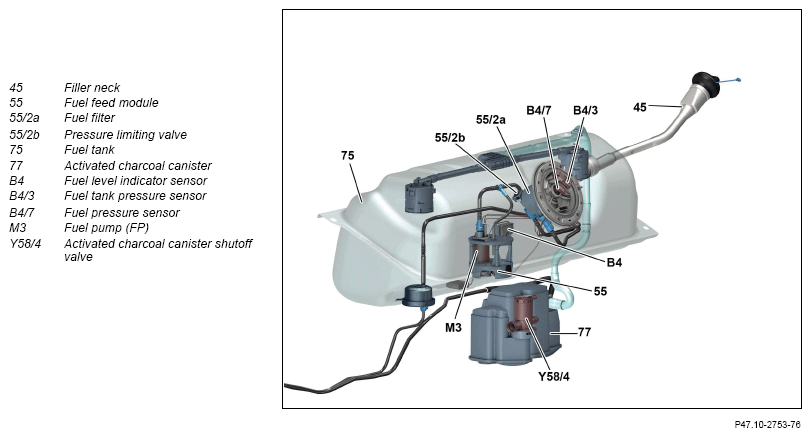

Phantom view of fuel tank from the left rear (except code 494 (USA version))
Phantom view of the fuel tank from behind (for code 494 (USA version))

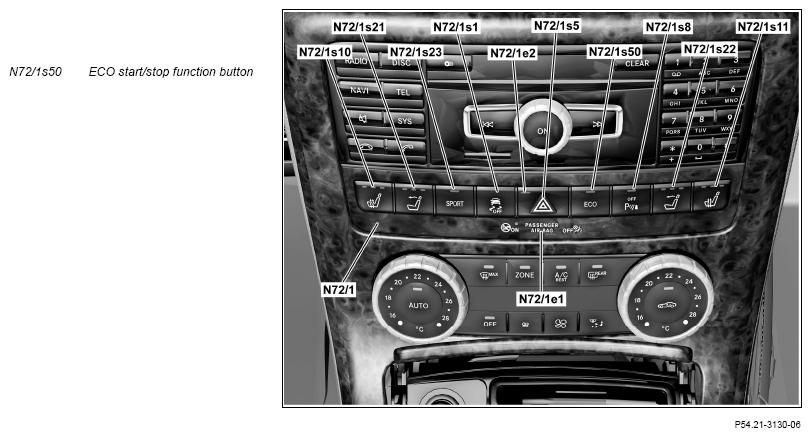

Center console view

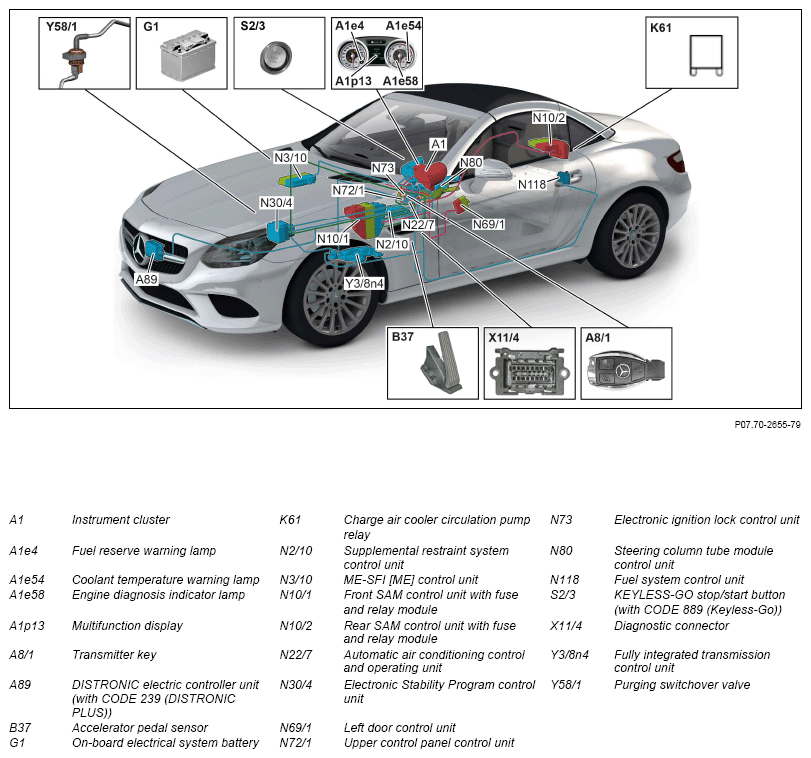

View from above
| Component description for instrument cluster | A1 | GF54.30-P-6000RD | |
| Component description for DISTRONIC electric controller unit | Model 172.4 with engine 276.8 as of model year 2016 with code 239 (DISTRONIC PLUS) A89 | GF30.30-P-3213RDA | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RD | |
| Component description for ME-SFI (ME) control unit | N3/10 | GF07.61-P-6000MNC | |

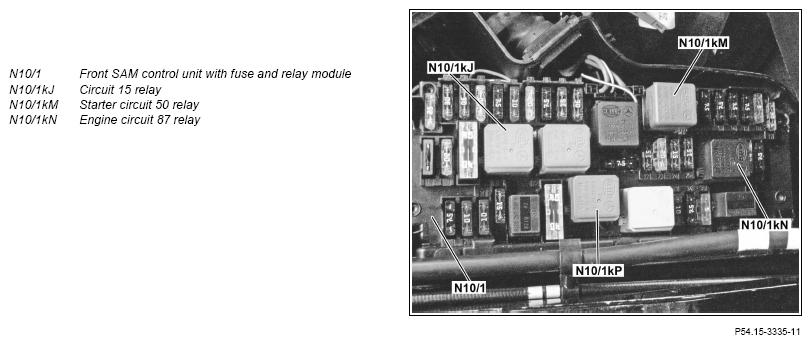

| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070RD | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030RD | |
| Component description for automatic air conditioning control and operating unit | N22/7 | GF83.40-P-3000RD | |
| Component description for Electronic Stability Program control unit | Model 172.4 with engine 276.8 as of model year 2017 N30/4 | GF42.45-P-5119RDA | |
| Left door control unit, component description | N69/1 | GF72.29-P-4143RD | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040RD | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RD | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051RD | |
| Component description for fuel pump control unit | N118 | GF47.40-P-2001MMD | |
| Component description for fully integrated transmission control unit | Transmission 725.0 in model 172.4 with engine 276.8 Y38n4 | GF27.60-P-5165ANH | |
| Table of contents for function description of gasoline injection and ignition system with direct injection | GF07.70-P-0998MNC |
