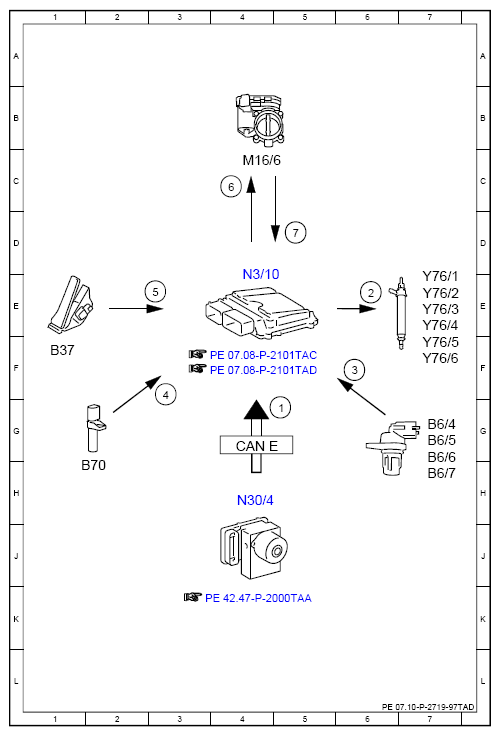

Electrical Function Schematic For Engine Limp-Home Mode - PE07.10-P-2719-97TAD
Engine 276 in Model 172
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Service brake, status | 5G |
| 2 | Fuel injectors, actuation | 6E |
| 3 | Camshaft Hall sensor, signal | 6F |
| 4 | Engine speed, signal | 3F |
| 5 | Accelerator pedal sensor, signal | 3E |
| 6 | Throttle valve actuator, actuation | 4C |
| 7 | 5D | |
| B37 | Accelerator pedal sensor | 1F |
| B6/4 | Left intake camshaft Hall sensor | 7G |
| B6/5 | Right intake camshaft Hall sensor | 7G |
| B6/6 | Left exhaust camshaft Hall sensor | 7G |
| B6/7 | Right exhaust camshaft Hall sensor | 7H |
| B70 | Crankshaft Hall sensor | 1H |
| CAN E | Chassis CAN | 4G |
| M16/6 | Throttle valve actuator | 4C |
| N3/10 | ME-SFI [ME] control unit | 4E |
| N30/4 | Electronic Stability Program control unit | 4H |
| Y76/1 | Cylinder 1 fuel injector | 7E |
| Y76/2 | Cylinder 2 fuel injector | 7E |
| Y76/3 | Cylinder 3 fuel injector | 7E |
| Y76/4 | Cylinder 4 fuel injector | 7E |
| Y76/5 | Cylinder 5 fuel injector | 7F |
| Y76/6 | Cylinder 6 fuel injector | 7F |
