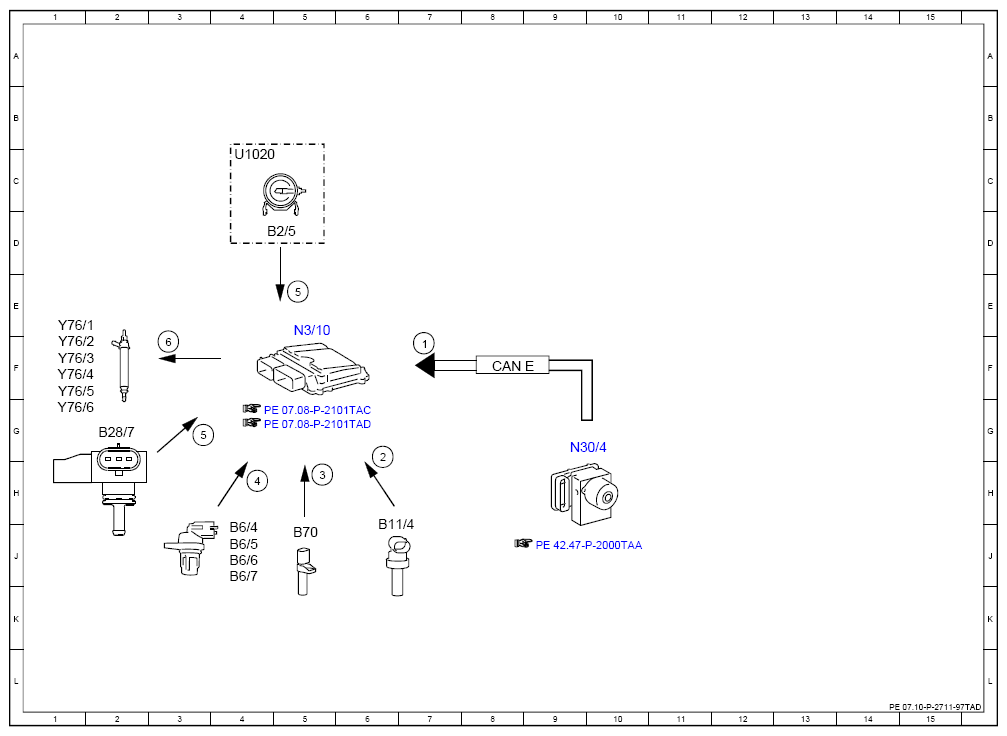

Electrical Function Schematic For Smooth Running Control - PE07.10-P-2711-97TAD
Engine 276 in Model 172
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Wheel speed, signal | 7F |
| 2 | Coolant temperature sensor, signal | 6G |
| 3 | Engine speed, signal | 5H |
| 4 | Camshaft Hall sensor, signal | 4H |
| 5 | Engine load, signal | 5E |
| 5 | Engine load, signal | 3G |
| 6 | Fuel injectors, actuation | 3F |
| B11/4 | Coolant temperature sensor | 6J |
| B2/5 | Hot film mass air flow sensor | 5D |
| B28/7 | Pressure sensor downstream of throttle valve | 2G |
| B6/4 | Left intake camshaft Hall sensor | 4J |
| B6/5 | Right intake camshaft Hall sensor | 4J |
| B6/6 | Left exhaust camshaft Hall sensor | 4J |
| B6/7 | Right exhaust camshaft Hall sensor | 4J |
| B70 | Crankshaft Hall sensor | 5J |
| CAN E | Chassis CAN | 8F |
| N3/10 | ME-SFI [ME] control unit | 5E |
| N30/4 | Electronic Stability Program control unit | 9G |
| U1020 | Valid for gasoline engine with stratified operation | 4C |
| Y76/1 | Cylinder 1 fuel injector | 1E |
| Y76/2 | Cylinder 2 fuel injector | 1F |
| Y76/3 | Cylinder 3 fuel injector | 1F |
| Y76/4 | Cylinder 4 fuel injector | 1F |
| Y76/5 | Cylinder 5 fuel injector | 1F |
| Y76/6 | Cylinder 6 fuel injector | 1G |
