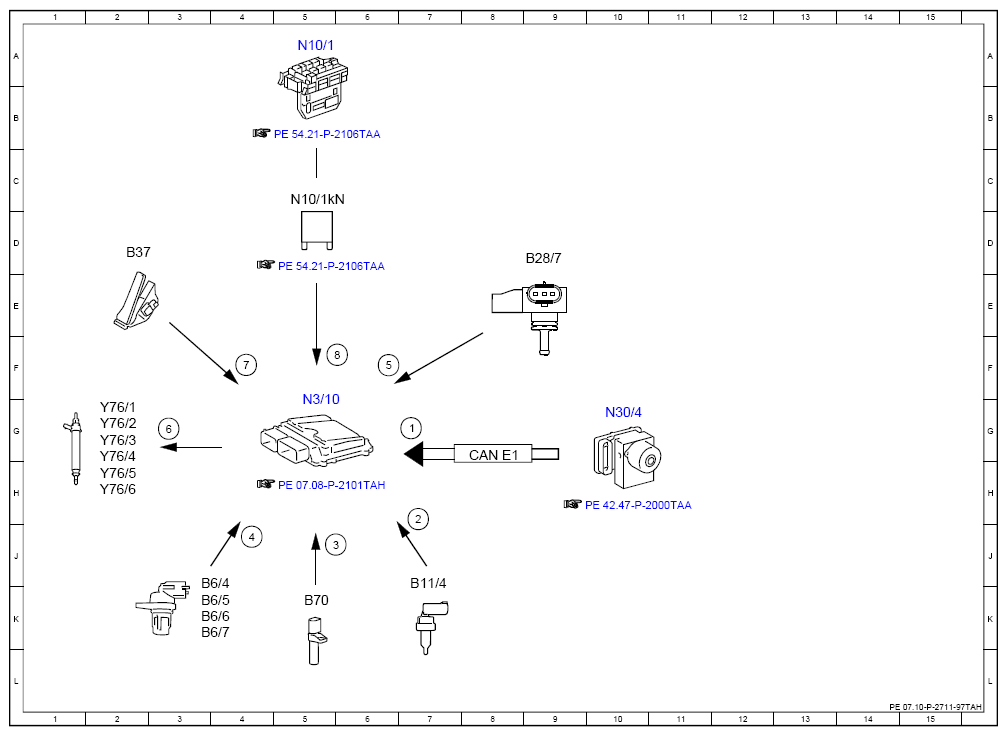

Electrical Function Schematic For Smooth Running Control - PE07.10-P-2711-97TAH
Engine 276.8 in Model 172.4
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Wheel speed, signal | 7G |
| 2 | Coolant temperature, signal | 7H |
| 3 | Engine speed, signal | 5J |
| 4 | Camshaft Hall sensor, signal | 4J |
| 5 | Engine load, signal | 6F |
| 6 | Fuel injectors, actuation | 3G |
| 7 | Accelerator pedal sensor, signal | 4F |
| 8 | Circuit 87, status | 5F |
| B11/4 | Coolant temperature sensor | 7K |
| B28/7 | Pressure sensor downstream of throttle valve | 9D |
| B37 | Accelerator pedal sensor | 2D |
| B6/4 | Left intake camshaft Hall sensor | 3K |
| B6/5 | Right intake camshaft Hall sensor | 3K |
| B6/6 | Left exhaust camshaft Hall sensor | 3K |
| B6/7 | Right exhaust camshaft Hall sensor | 3K |
| B70 | Crankshaft Hall sensor | 5K |
| CAN E1 | Chassis CAN 1 | 8G |
| N10/1 | Front SAM control unit with fuse and relay module | 5A |
| N10/1kN | Engine circuit 87 relay | 5C |
| N3/10 | ME-SFI [ME] control unit | 5G |
| N30/4 | Electronic Stability Program control unit | 10G |
| Y76/1 | Cylinder 1 fuel injector | 2G |
| Y76/2 | Cylinder 2 fuel injector | 2G |
| Y76/3 | Cylinder 3 fuel injector | 2G |
| Y76/4 | Cylinder 4 fuel injector | 2G |
| Y76/5 | Cylinder 5 fuel injector | 2H |
| Y76/6 | Cylinder 6 fuel injector | 2H |
