Remove/Install Pressure Transducer For Boost Pressure Control - AR07.17-P-7002RKA
Engine 276.8 in model 172
Engine 276.8 in model 231
Shown on model 231 with engine 276.8

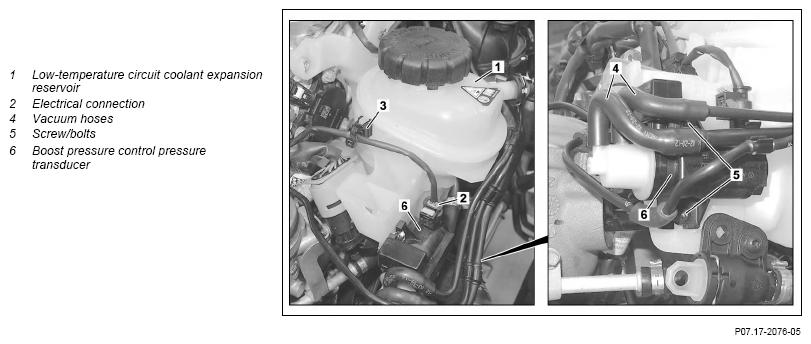

Fig 1: Pressure Transducer For Boost Pressure Control Components Location - Engine 276.8 In Model 172 (Shown On Model 231)
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove | |||
| 1 | Remove upper engine cover | ||
| 2 | Remove right engine air intake duct upstream of left air filter | ||
| 3 | Release and disconnect electrical connection (2) | ||
| 4 | Mark vacuum hoses (4) relative to the respective connections on boost pressure control pressure transducer (6) | ||
| 5 | Detach vacuum hoses (4) from boost pressure control pressure transducer (6) | ||
| 6 | Remove screw/bolts (5) and take out boost pressure control pressure transducer (6) upwards | ||
| Install | |||
| 7 | Transfer marking on the new boost pressure control pressure transducer (6) | When replacing the boost pressure control pressure transducer (6). | |
| 8 | Insert boost pressure control pressure transducer (6) and screw in screw/bolts (5) | ||
| 9 | Mount vacuum hoses (4) on connections of the boost pressure control pressure transducer (6) marked during removal | ||
| 10 | Plug in electrical connection (2) and lock into place | ||
| 11 | Install right engine air intake duct upstream of air filter | ||
| 12 | Install upper engine cover | ||
| 13 | Read out fault memory using the diagnostic system and clear if necessary | ||
| AD00.00-P-2000-04A | |||
| 14 | Risk of accident
from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running. Conduct engine test run while checking for proper operation of the engine |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A |
