Remove/Install Fuel Pressure And Temperature Sensor - AR07.04-P-0050W
Engine 276 in model 172
Shown on engine 276.9 in model 172

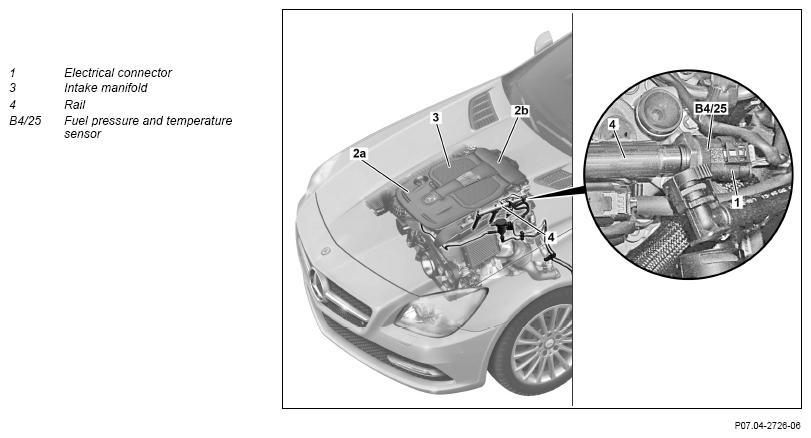

Fig 1: Fuel Pressure And Temperature Sensor Components Location - Engine 276 In Model 172 (Shown On Engine 276.9 In Model 172)
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Notes on battery | AH54.10-P-0001-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| General information on work on gasoline direct injection system | AH07.00-P-2000-01A | ||
| Remove | |||
| 1 | Detach ground line from battery | AR54.10-P-0003W | |
| 2.1 | Remove intake manifold (3) | Engine 276.9 in model 172 | AR09.20-P-1961W |
| 2.2 | Remove left air filter housing | Engine 276.8 in model 172 | AR09.10-P-1150RKA |
| 3 | Release and disconnect electrical connection (1) | ||
| Clean | |||
| 4 | Clean rail (4) in the area of the fuel pressure and temperature sensor (B4/25) | Assembly cleaner | *BR00.45-Z-1028-04A |
| 5 | Remove fuel pressure and temperature sensor (B4/25) from rail (4) | ||
| Install | |||
| 6 | Mount fuel pressure and temperature sensor (B4/25) on rail (4) | *BA07.52-P-1002-01G | |
| 7 | Connect and lock electrical connection (1) | ||
| 8.1 | Install intake manifold (3) | Engine 276.9 in model 172 | AR09.20-P-1961W |
| 8.2 | Install left air filter housing | Engine 276.8 in model 172 | AR09.10-P-1150RKA |
| 9 | Mount ground line on battery | AR54.10-P-0003W | |
| Check | |||
| 10 | Read out fault memory using the diagnostic system and delete | ||
| AD00.00-P-2000-04A | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 11 | Carry out an engine test run and check fuel system for leak tightness |
FUEL DISTRIBUTOR
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA07.52-P-1002-01G | Pressure and temperature sensor to fuel distributor | Nm | 33 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
