Remove/Install ME-SFI Control Unit - AR07.08-P-1000W
Engine 276.8 in model 172
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove | |||
| 1 | Read out variant coding of the ME-SFI [ME] control unit (N3/10) with diagnostic system and store it | When replacing the ME-SFI [ME] control unit (N3/10). | |
| AD00.00-P-2000-04A | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2m) | ||
| 3 | Remove upper engine cover | ||

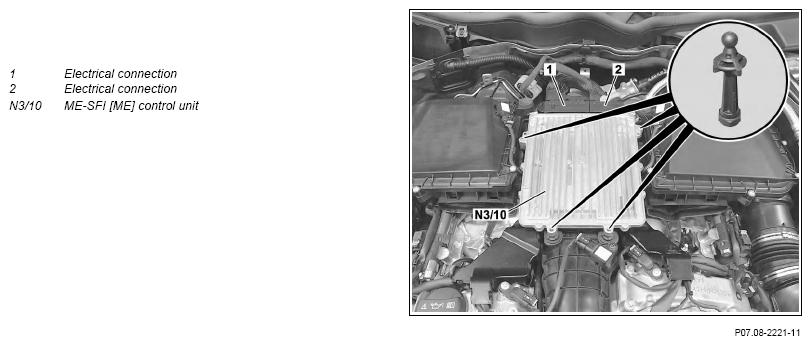

| 4 | Release and disconnect electrical connections (1, 2) | ||
| 5 | Unclip ME-SFI [ME] control unit (N3/10) upwards and take it off | ||
| Install | |||
| 6 | Clip ME-SFI [ME] control unit (N3/10) into bracket | ||
| 7 | Place electrical connections (1, 2) and lock | ||
| 8 | Install upper engine cover | ||
| 9 | Insert transmitter key into ignition lock and switch on ignition | When replacing the ME-SFI [ME] control unit (N3/10). | |
| 10 | Transfer stored data to new ME-SFI [ME] control unit (N3/10) | When replacing the ME-SFI [ME] control unit (N3/10). | |
| AD00.00-P-2000-04A | |||
| 11 | Risk of accident
from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running. Carry out an engine test run |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A |
