Remove/Install Fuel Injection System Control Unit - AR07.08-P-7011MFA
Engine 260 in model 118
as of model year 2023
Engine 260 in model 177, 247
as of model year 2022

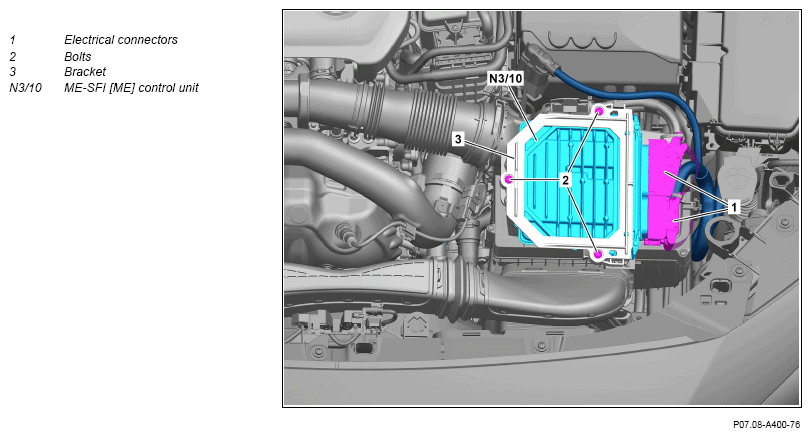

Fig 1: Fuel Injection System Control Unit Components Location - Engine 260 In Model 177 As Of Model Year 2022
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notice | Notes on avoiding damage to ignition system | AH15.10-P-0002-01V | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Perform commissioning of ME-SFI [ME] control unit (N3/10). | If ME-SFI [ME] control unit (N3/10) is replaced. | |
| AD00.00-P-2000-06MFA | |||
| 2 | Disconnect ground line from on-board electrical system battery. | AR54.10-P-0003MFA | |
| 3 | Release and disconnect electrical connectors (1) at ME-SFI [ME] control unit (N3/10). | ||
| 4 | Remove bolts (2) and bracket (3). | *BA07.61-P-1003-01G | |
| 5 | Remove ME-SFI [ME] control unit (N3/10). | ||
| 6 | Install in the reverse order. | ||
| 7 | Read out and delete fault memory. | ||
| AD00.00-P-2000-06MFA | |||
| Check | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Perform an engine test run and check the engine for proper function. |
ME-SFI [ME] GASOLINE INJECTION AND IGNITION SYSTEM
| Number | Designation | Engine 260 | |
|---|---|---|---|
| BA07.61-P-1003-01G | Bolts, ME-SFI [ME] control unit to air filter housing | Nm | 5 |
