Remove/Install Fuel Injection System Control Unit - AR07.08-P-7011MFC
Engine 260 in model 118
up to model year 2022
Engine 260 in model 177, 247
up to model year 2021
Shown on engine without code M016 (performance-enhanced engine)

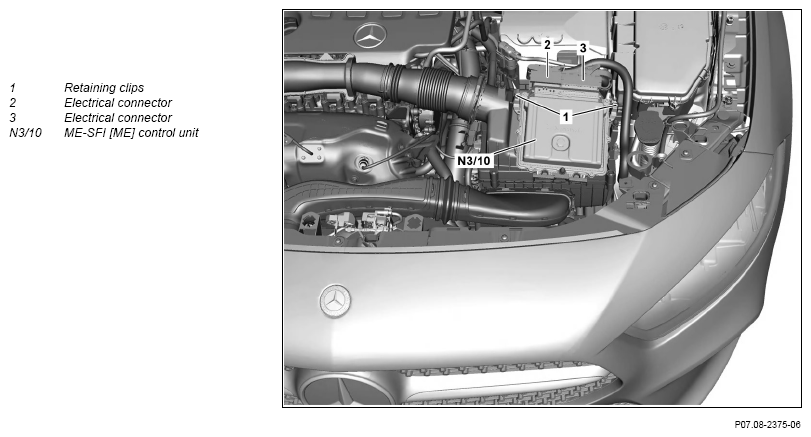

Fig 1: Fuel Injection System Control Unit Components Location - Engine 260 In Model 177 Up To Model Year 2021 (Shown Without Code M016)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Perform commissioning of ME-SFI [ME] control unit (N3/10). | If ME-SFI [ME] control unit (N3/10) is replaced | |
| AD00.00-P-2000-06MFA | |||
| 2 | Disconnect ground line from on-board electrical system battery. | AR54.10-P-0003MFA | |
| 3 | Remove cover over ME-SFI [ME] control unit (N3/10). | ||
| 4 | Release retaining clips (1). | ||
| 5 | Release and disconnect electrical connectors (2, 3) at ME-SFI [ME] control unit (N3/10). | ||
| 6 | Remove ME-SFI [ME] control unit (N3/10). | ||
| 7 | Install in the reverse order. | ||
| 8 | Read out and delete fault memory. | ||
| AD00.00-P-2000-06MFA | |||
| Check | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 9 | Perform an engine test run and check the engine for proper function. |
