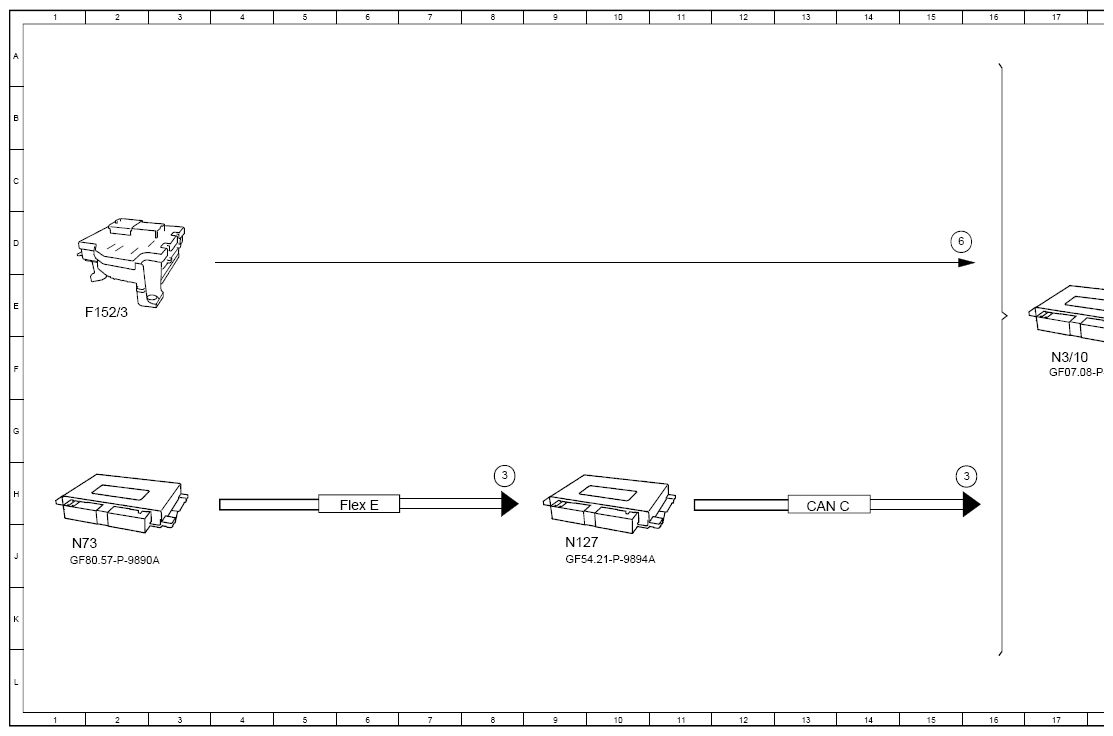

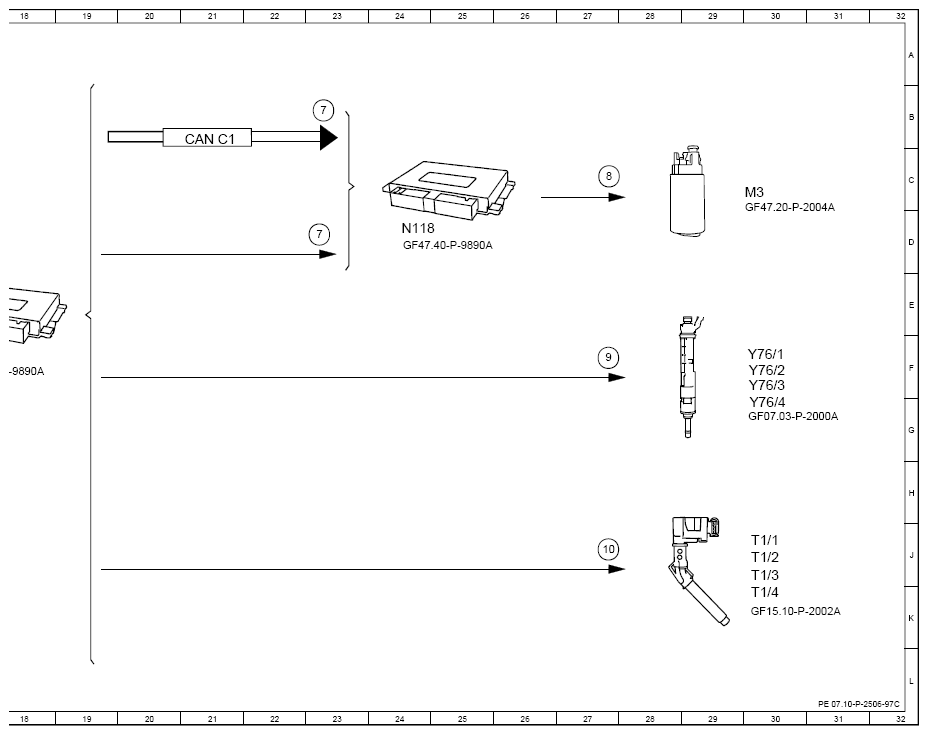

Function Schematic For Ignition Off - PE07.10-P-2506-97C
Engine 260, 282 in model 118, 177, 247
Engine 264 in model 167
| Code: | Designation: | Position: |
|---|---|---|
| 10 | Ignition coils, actuation | 27J |
| 3 | Circuit 15, status OFF | 8H |
| 3 | Circuit 15, status OFF | 16H |
| 6 | Circuit 87, status | 16D |
| 7 | Fuel pump, request OFF | 23B |
| 7 | Fuel pump, request OFF | 23D |
| 8 | Fuel pump, actuation | 27C |
| 9 | Fuel injectors, actuation | 27F |
| CAN C | Engine CAN | 13H |
| CAN C1 | Drive train CAN | 21B |
| F152/3 | Engine compartment fuse and relay module | 2E |
| Flex E | Chassis FlexRay | 6H |
| M3 | Fuel pump (FP) | 30C |
| N118 | Fuel pump control unit | 24D |
| N127 | Drivetrain control unit | 9J |
| N3/10 | ME-SFI [ME] control unit | 17F |
| N73 | Electronic ignition switch control unit | 1J |
| T1/1 | Cylinder 1 ignition coil | 30J |
| T1/2 | Cylinder 2 ignition coil | 30J |
| T1/3 | Cylinder 3 ignition coil | 30J |
| T1/4 | Cylinder 4 ignition coil | 30K |
| Y76/1 | Cylinder 1 fuel injector | 30F |
| Y76/2 | Cylinder 2 fuel injector | 30F |
| Y76/3 | Cylinder 3 fuel injector | 30F |
| Y76/4 | Cylinder 4 fuel injector | 30G |
