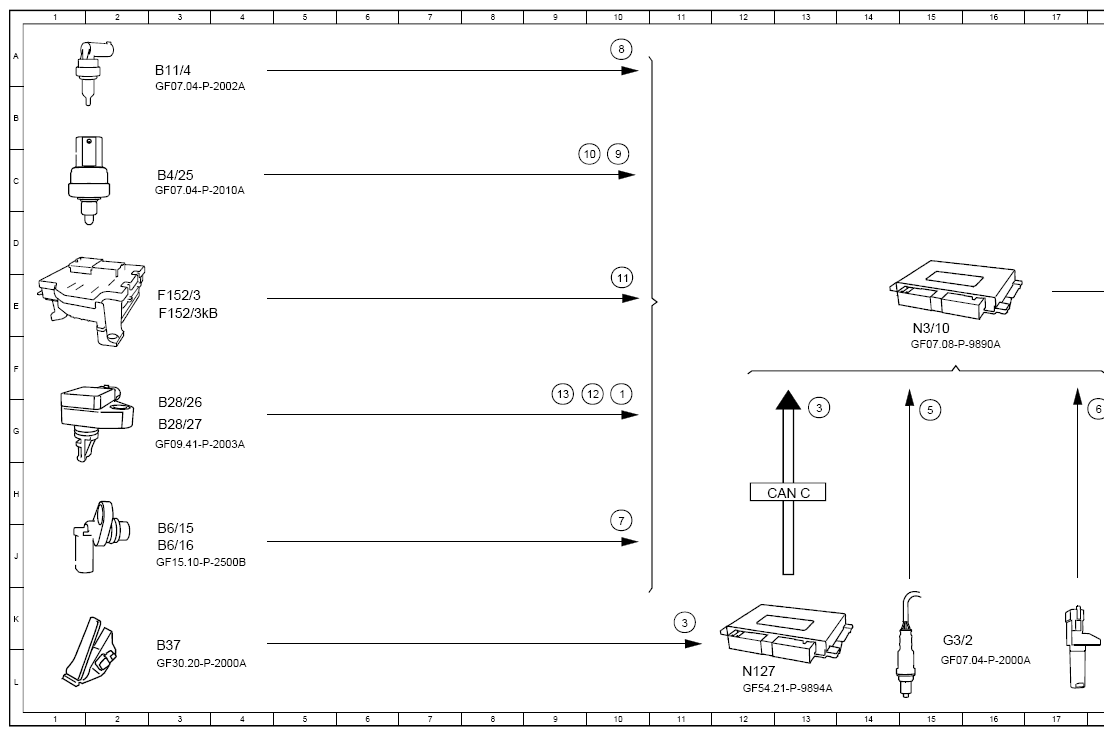

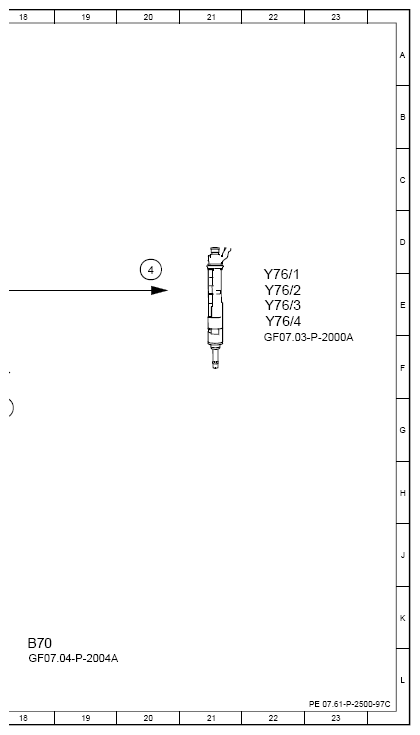

Function Schematic For Injection Control - PE07.61-P-2500-97C
Engine 260 in model 118, 177, 247
Engine 264 in model 167
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Charge air temperature sensor, signal | 10F |
| 10 | Fuel temperature, signal | 10C |
| 11 | Circuit 87, status | 10E |
| 12 | Boost Pressure, signal | 10F |
| 13 | Intake manifold Pressure, signal | 10F |
| 3 | Accelerator pedal sensor, signal | 13G |
| 3 | Accelerator pedal sensor, signal | 11K |
| 4 | Fuel injectors, actuation | 20D |
| 5 | Oxygen sensor, sensor element, signal | 15G |
| 6 | Engine speed, signal | 17G |
| 7 | Camshaft Hall sensor, signal | 10J |
| 8 | Coolant temperature sensor, signal | 10A |
| 9 | Fuel Pressure, signal | 10C |
| B11/4 | Coolant temperature sensor | 3A |
| B28/26 | Pressure and temperature sensor upstream of throttle valve | 3G |
| B28/27 | Pressure and temperature sensor downstream of throttle valve | 3G |
| B37 | Accelerator pedal sensor | 3L |
| B4/25 | Fuel Pressure and temperature sensor | 3C |
| B6/15 | Intake camshaft Hall sensor | 3J |
| B6/16 | Exhaust camshaft Hall sensor | 3J |
| B70 | Crankshaft Hall sensor | 18K |
| CAN C | Engine CAN | 13H |
| F152/3 | Engine compartment fuse and relay module | 3E |
| F152/3kB | Circuit 87M relay | 3E |
| G3/2 | Oxygen sensor upstream of catalytic converter | 15K |
| N127 | Drivetrain control unit | 12L |
| N3/10 | ME-SFI [ME] control unit | 15E |
| Y76/1 | Cylinder 1 fuel injector | 22E |
| Y76/2 | Cylinder 2 fuel injector | 22E |
| Y76/3 | Cylinder 3 fuel injector | 22E |
| Y76/4 | Cylinder 4 fuel injector | 22E |
