Remove/Install Accelerator Pedal/Sensor - AR30.12-P-1321MFA

Model 118, 177, 243, 247

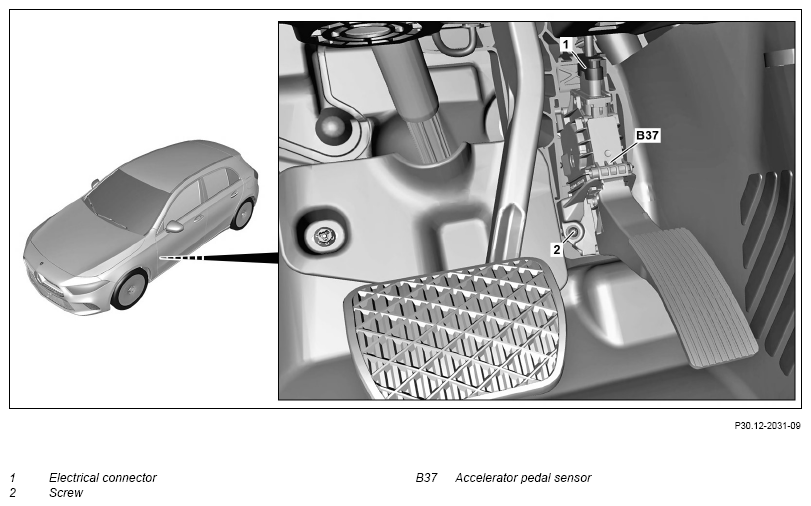

Fig 1: Accelerator Pedal/Sensor Components Location - Model 177

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Position left front seat rearwards to the full extent
2	Switch off ignition and store transmitter key outside of transmission range (min. 2 m)
3	Release and disconnect electrical connection (1)
4	Unscrew screw/bolt (2)	Bolt, accelerator pedal to pedal assembly	*BA29.10-P-1002-02L
5	Remove accelerator pedal sensor (B37)
6	Install in the reverse order

PEDALS, BEARING BRACKET

Number	Designation			Model 118	Model 177, 243, 247
BA29.10-P-1002-02L	Bolt, accelerator pedal to pedal assembly	M6	Nm	7	7
