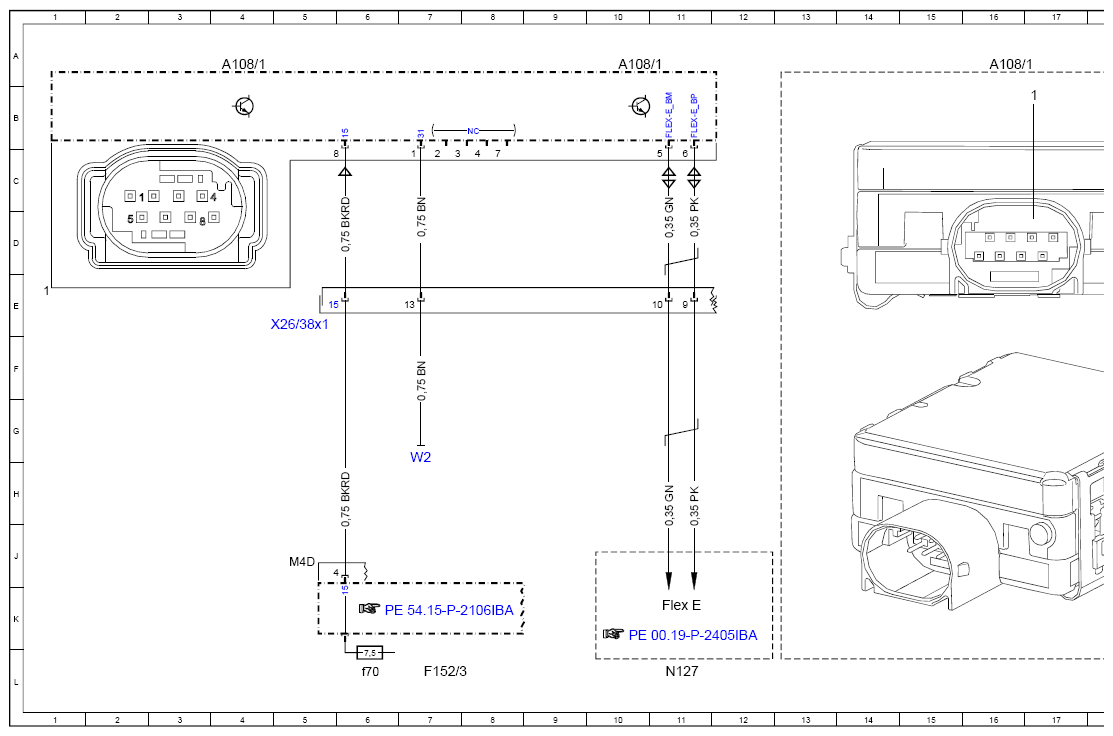

Wiring Diagram For Distronic Distance-Pilot Controller Unit - PE30.30-P-2107-97IBA
Model 177
with code 239 (Active Distance Assist DISTRONIC)

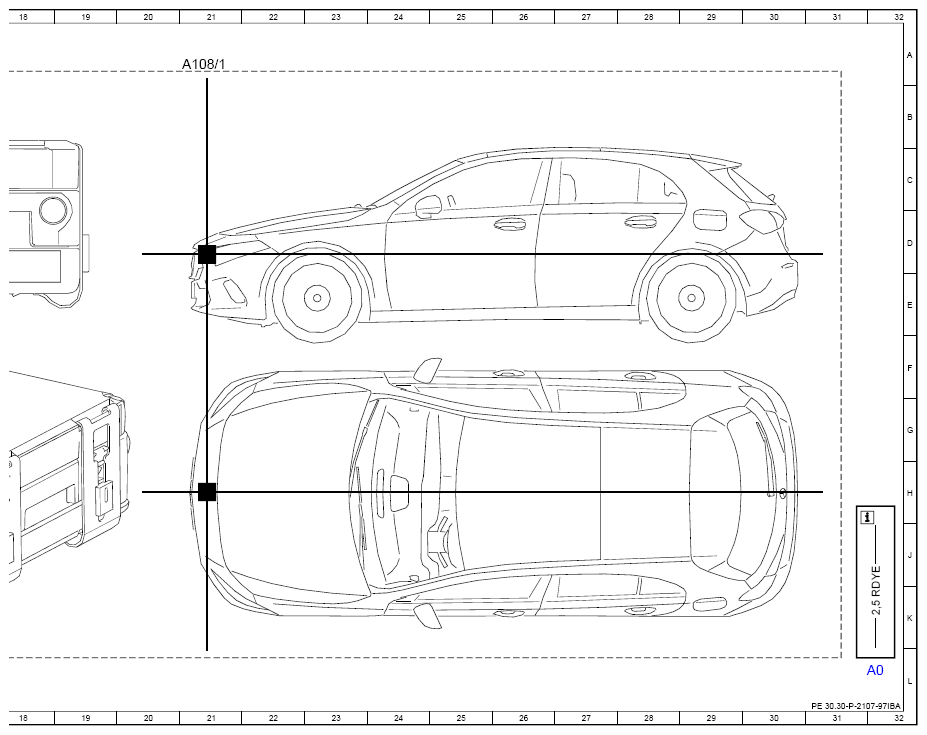

Controller unit A108/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| A108/1 | Active Distance Assist DISTRONIC electric controller unit | 4A |
| A108/1 | Active Distance Assist DISTRONIC electric controller unit | 10A |
| A108/1 | Active Distance Assist DISTRONIC electric controller unit | 16A |
| A108/1 | Active Distance Assist DISTRONIC electric controller unit | 21A |
| F152/3 | Engine compartment fuse and relay module | 7L |
| F152/3f70 | Fuse 70 | 6L |
| Flex E | Chassis FlexRay | 11K |
| N127 | Drivetrain control unit | 11L |
| W2 | Right front engine compartment ground point | 7H |
| X26/38x1 | Front bumper electrical connector | 5E |
