Overview Of System Components For Gasoline Injection And Ignition System With Direct Injection - GF07.70-P-9998MRS
Engine 264.9 in Model 205, 253
Shown: Model 205.0

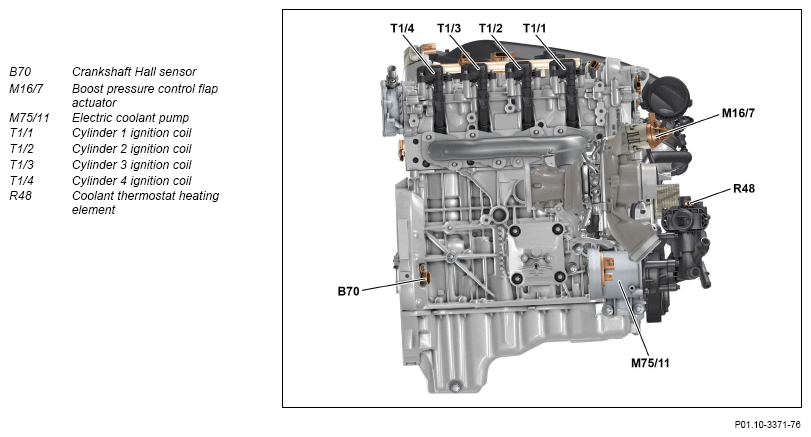

Engine front view

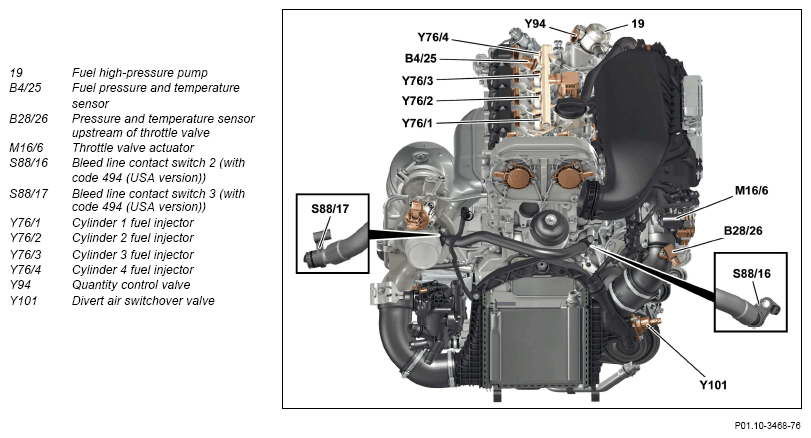

Engine top front view

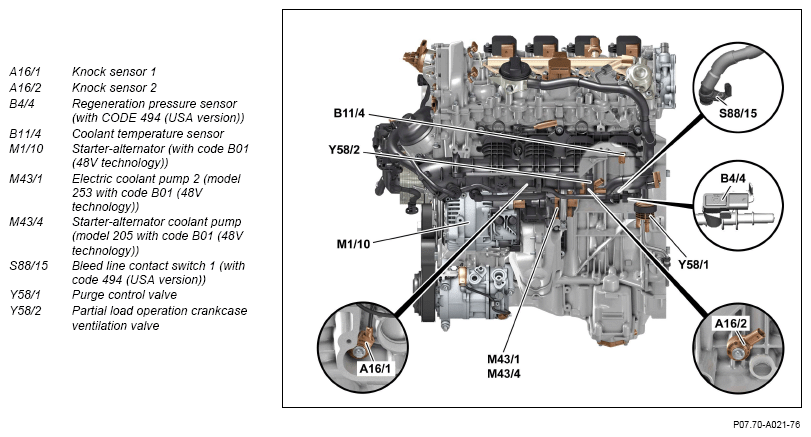

View of Engine from the left

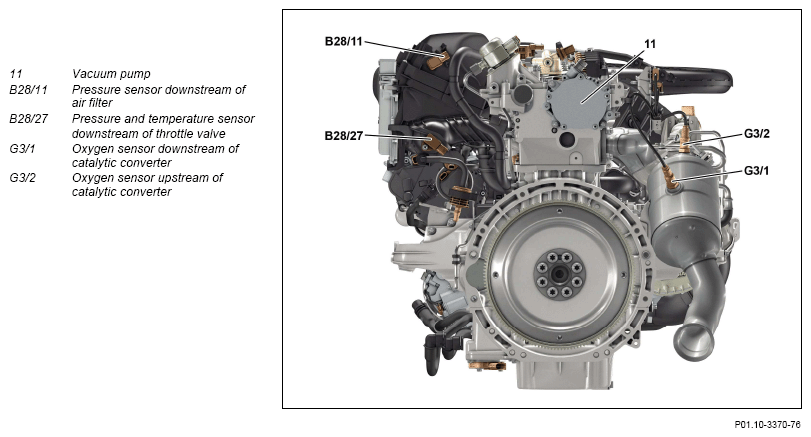

Engine rear view

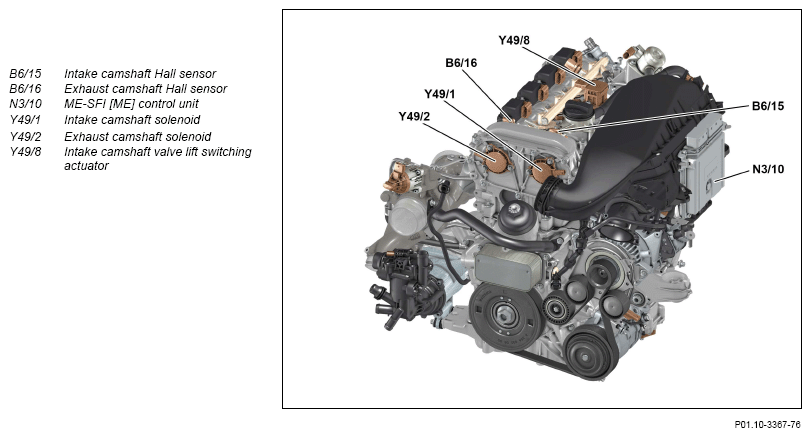

Engine right view

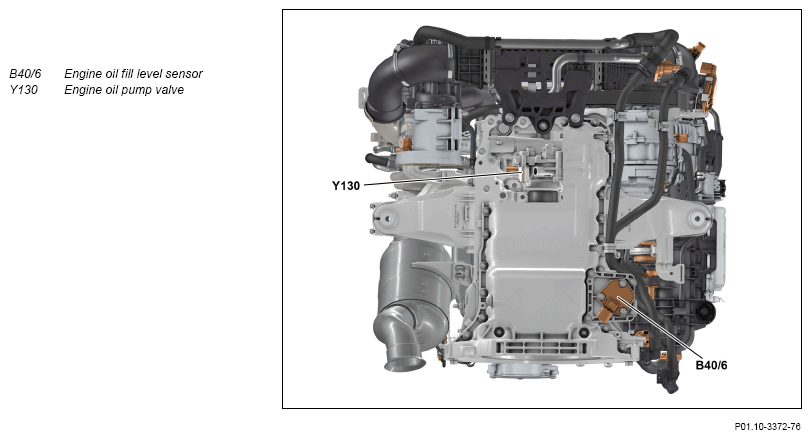

Bottom view of Engine

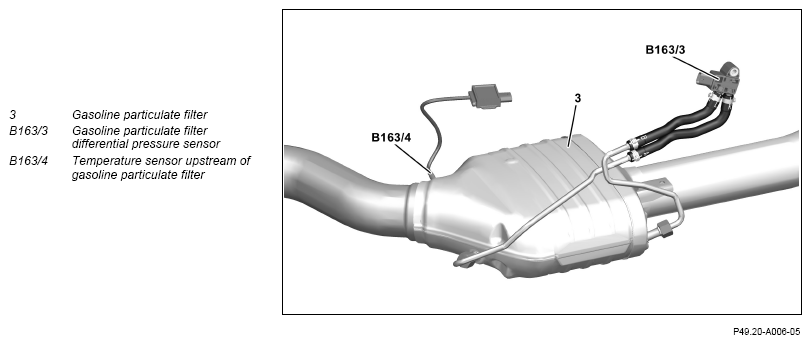

Gasoline particulate filter (with code 598 (Gasoline particulate filter (GPF) with sensor system) or code 961 (Exhaust system with GPF generation 2.0))

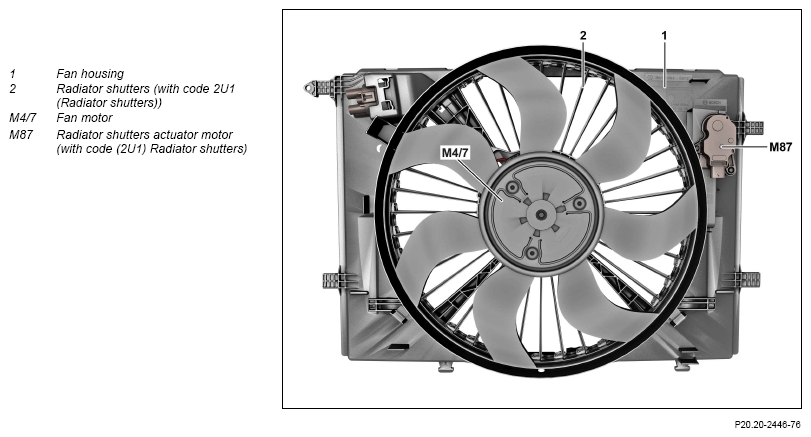

View of fan from the rear

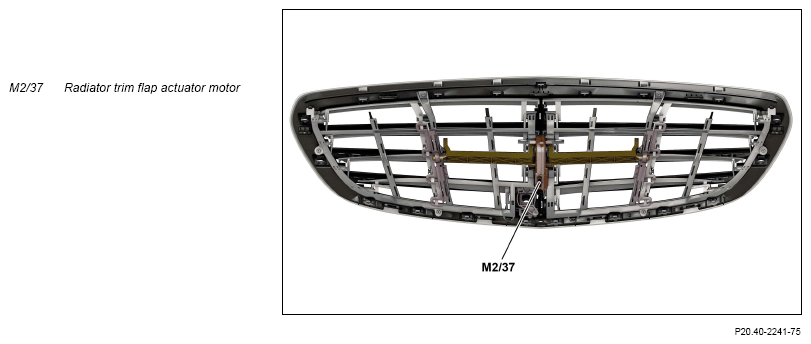

View of radiator trim from the rear (with code 5U3 (AIRPANEL))

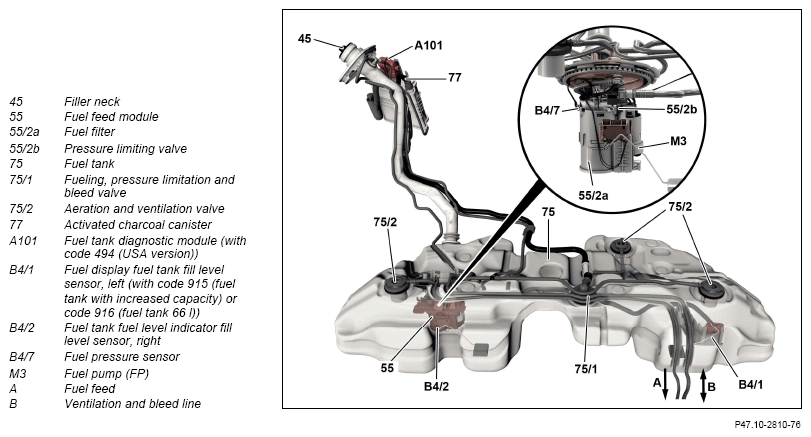

Fuel tank view, shown on model 205 (except 205.047/147/247) with code 916 (fuel tank 66 l) and code 494 (USA version)

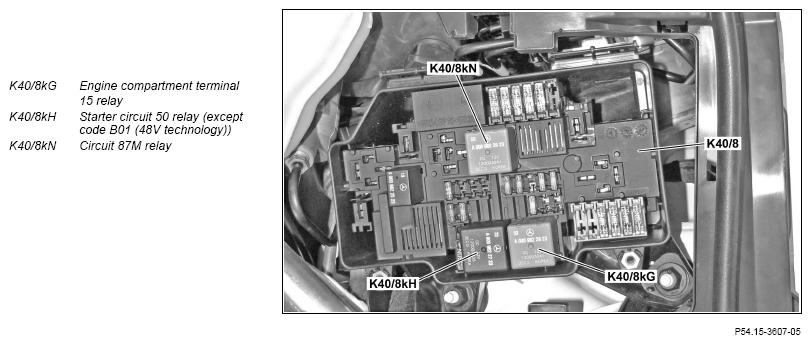

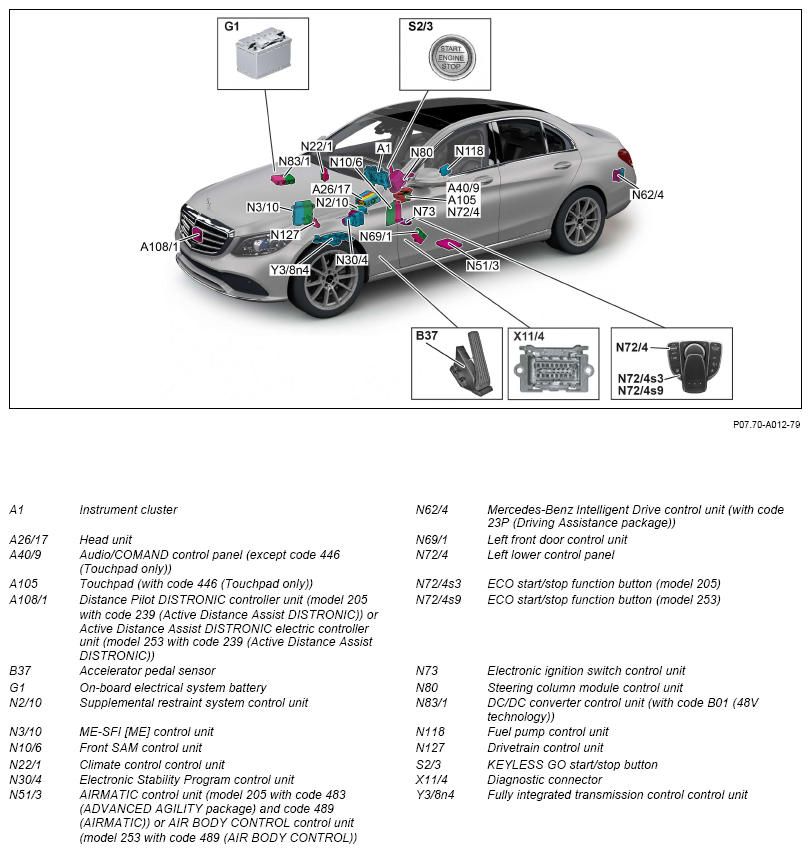

View of Engine fuse and relay module (K40/8) in rear left Engine compartment
| Component description for instrument cluster | A1 | GF54.30-P-6000RF | |
| Head unit, component description | Engine 264.9 in Model 205, 253 with code 531 (COMAND® APS) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) Engine 264.9 in Model 205 as of model year 2019 with code 506 (Audio 20 NTG 5.5 radio) A26/17 |
GF82.85-P-3140RFB | |
| Engine 264.9 in Model 253 with code 547 (Connect 20 Entry (NTG6)) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND® APS) Engine 264.9 in Model 253 with code 548 (Connect 20 MID (NTG6)) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND® APS) Engine 264.9 in Model 253 with code 549 (Connect 20 HIGH (NTG6)) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND® APS) A26/17 |
GF82.85-P-3140RFM | ||
| Component description for Audio/COMAND® control panel | Engine 264.9 in Model 205 as of model year 2019except code 446 (Touchpad only) A40/9 | GF54.21-P-4501RF | |
| Touchpad, component description | Engine 264.9 in Model 205 as of model year 2019 with code 446 (Touchpad only) Engine 264.9 in Model 253 as of model year 2020 with code 446 (Touchpad only) A105 |
GF54.21-P-4511RF | |
| DISTRONIC Distance-Pilot controller unit, component description | Engine 264.9 in Model 205 as of model year 2019 with code 239 (Active Distance Assist DISTRONIC) Engine 264.9 in Model 253 as of model year 2020 with code 239 (Active Distance Assist DISTRONIC) A108/1 |
GF30.30-P-3218RFM | |
| Component description for starter-alternator | Engine 264.9 in Model 205 with code B01 (48V Technology) M1/10 | GF15.40-P-2103RFM | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RF | |
| Component description for ME-SFI [ME] control unit | N3/10 | GF07.61-P-6000MRS | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010RF | |
| Climate control control unit, component description | N22/1 | GF83.40-P-2250RF | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119RF | |
| Airmatic® control unit, component description | Engine 264.9 in Model 205 with code 483 (Advanced Agility package) with code 489 (Airmatic®) N51/3 | GF32.22-P-5110RF | |
| Air Body Control control unit, component description | Engine 264.9 in Model 253 with code 489 (Air Body Control) N51/3 | GF32.22-P-5111RF | |
| Mercedes-Benz Intelligent Drive control unit, component description | Engine 264.9 in Model 205 as of model year 2019 with code 23P (Driving Assistance package) N62/4 | GF30.30-P-3312RFM | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001RF | |
| Lower control panel, component description | N72/4 | GF54.25-P-4270RF | |
| Component description for the electronic ignition lock control unit | Engine 264.9 in Model 205 as of model year 2019 Engine 264.9 in Model 253 as of model year 2020 N73 |
GF80.57-P-6001RFM | |
| Component description for steering column tube module control unit | Engine 264.9 in Model 205 as of model year 2019 Engine 264.9 in Model 253 as of model year 2020 N80 |
GF54.21-P-6051RFM | |
| Component description for DC/DC converter control unit | Engine 264.9 in Model 205 with code B01 (48V Technology) N83/1 | GF54.10-P-3006RFM | |
| Component description for fuel pump control unit | N118 | GF47.40-P-2001MRS | |
| Drivetrain control unit, component description | N127 | GF54.21-P-2141MRS | |
| Component description for fully integrated transmission control unit | Engine 264.9 in Model 205 with transmission 725.0 (except 725.017) Y38n4 |
GF27.60-P-5165ANG | |
| Engine 264.9 in Model 253 with transmission 725.0 Y38n4 |
GF27.60-P-5165ANI | ||
| Table of contents for function description of gasoline injection and ignition system with direct injection | GF07.70-P-0998MRS |
