Thermal Management, Function - GF07.10-P-1012MRS
Engine 264.9 in Model 205, 253
Function requirements, general
- Engine runs
The ME-SFI [ME] control unit (N3/10) detects the Engine running via the evaluation of the crankshaft Hall sensor signals (B70). The ME-SFI [ME] control unit directly reads in the signals of the crankshaft Hall sensor.
Thermal management, general
The ME-SFI [ME] control unit regulates the Engine coolant temperature via the heat management.
The following advantages arise from this:
- Rapid reaching of the optimal operating temperature
- Reduction of the exhaust emissions
- Fuel savings
- Rapid heating of the vehicle interior
The ME-SFI [ME] control unit reads in the following signals to the control the heat management:
- Coolant temperature
Coolant temperature sensor (B11/4)
- Charge air temperature and Engine load
Pressure and temperature sensor downstream of throttle valve (B28/27)
- Accelerator pedal position
The powertrain control unit (N127) reads in the accelerator pedal sensor (B37) signals directly, and transmits the accelerator pedal position via the drive CAN (CAN C1) to the ME-SFI [ME] control unit.
- Engine speed
Crankshaft Hall sensor
The ME-SFI [ME] control unit also evaluates the following variables:
- Status of the air conditioning system for rotational speed and torque adjustment
The climate control control unit (N22/1) transmits the status via the interior CAN (CAN B), the electronic ignition lock control unit (N73), the suspension FlexRay (Flex E), the powertrain control unit, and the drive CAN to the ME-SFI [ME] control unit.
- Vehicle speed
The instrument cluster (A1) transmits the vehicle speed via the user interface CAN (CAN HMI), the electronic ignition lock control unit, the chassis FlexRay, the powertrain control unit and the drive train CAN to the ME-SFI [ME] control unit.
- Wheel speed
The Electronic Stability Program control unit (N30/4) transmits the wheel speeds via the chassis FlexRay, the powertrain control unit and the drive train CAN to the ME-SFI [ME] control unit.
- Transmission oil temperature
The fully integrated transmission control unit (Y3/8n4) transmits the transmission oil temperature via the drive train CAN to the ME-SFI [ME] control unit.
- Outside temperature
The front SAM control unit (N10/6) transmits information on the outside temperature via the interior CAN, electronic ignition lock control unit, suspension FlexRay, powertrain control unit and drive CAN to the ME-SFI [ME] control unit.
- Status of electric coolant pump (M75/11)
The ME-SFI [ME] control unit reads in the electric coolant pump signals via the Engine LIN (LIN C2).

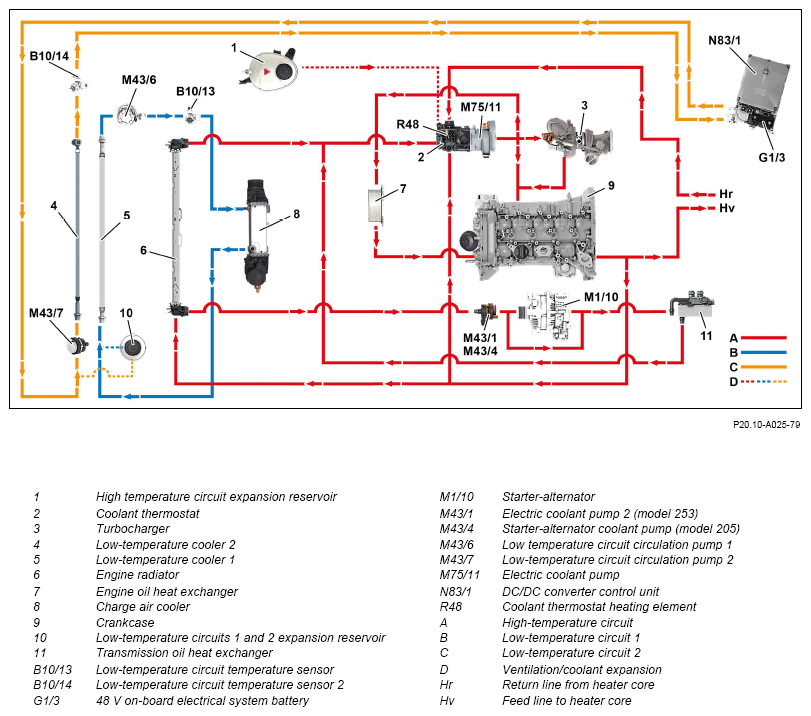

Schematic diagram of cooling circuits (with code B01 (48V Technology))
The thermal management is described in the following points:
- Coolant thermostat closed-loop control
- Post-start phase with electric coolant pump
- Starter-alternator cooling (with code B01 (48V Technology))
- Low-temperature circuit 1 (charge air cooling)
- Low-temperature circuit 2 (with code B01 (48V Technology))
- Overheating protection
- Fan control
- Radiator trim flaps (with code 5U3 (AIRPANEL))
- Radiator shutters (with code 2U1 (Radiator shutters))

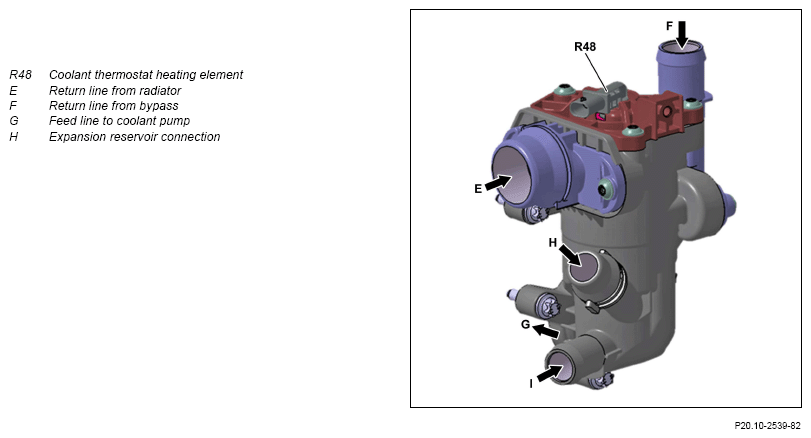

Display of coolant thermostat connections
Coolant thermostat closed-loop control
The mechanically influenced opening and closing of the ball rotary valve in the coolant thermostat takes place via the temperature-dependent expansion or contraction of the wax expansion element in a temperature range of approx. 102 °C to 118 °C. Target temperature is approx. 105 °C. At 118 °C, the ball rotary valve is fully opened.
The opening and closing of the coolant thermostat can also be electronically influenced by the actuation of the coolant thermostat heating element. This occurs fully variable and dependent on the motoric requests.
The ball rotary slide in the coolant thermostat can take the following positions:
- Closed
- Open (mixed-fuel mode)
- Open (radiator operation)

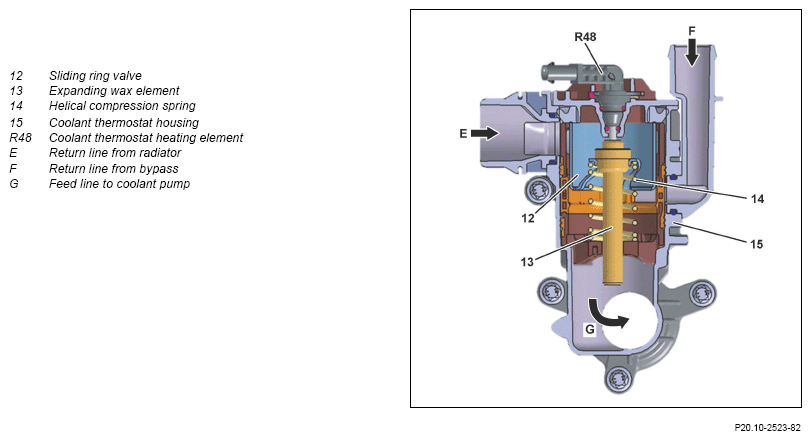

View of coolant thermostat closed
Closed
The coolant thermostat's annular slide valve (12) is closed when the following conditions are met:
- Coolant temperature under approx. 102 °C
- Coolant thermostat heating element de-energized
- No wide open throttle request
In this position the coolant flows through the Engine circuit and the heater heat exchanger and the ATL and, as required, the heater heat exchanger for the passenger compartment heater. The Engine radiator is not integrated in the coolant circuit. The coolant is heated more quickly in this way.
Through rapid warming the Engine reaches its operating temperature quicker which is favorable for fuel consumption.

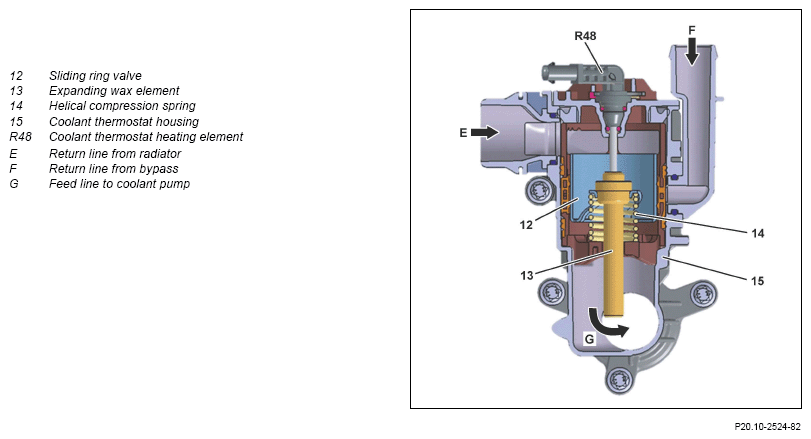

View of the coolant thermostat opened
Open (mixed-fuel mode)
The annular slide valve (12) starts to open when one of the following conditions is met:
- Reaching a coolant temperature of approx. 102 °C for the first time after the start (no full-load request)
- Coolant thermostat heating element is energized
At a coolant temperature range of approx. 102 °C to 118 °C or depending on the energization of the coolant thermostat heating element, the wax expansion element (13) begins to expand and actuates the annular slide valve (12). This opens the connection to the Engine radiator. The orifice area of the annular slide valve (12) is proportional to the temperature of the expanding wax element (13) or the coolant temperature. In this way the volumetric flow rate of coolant to the Engine radiator can be varied as required.
Open (radiator operation)
Upon reaching a coolant temperature of approx. 118 °C, the annual slide valve (12) is completely open and the coolant can flow through the radiator without restriction.
Electronic regulation
A complete opening is also possible at lower temperatures, if the coolant thermostat heating element is actuated by the ME-SFI [ME] control unit depending on the operating conditions.
The following data are read in directly by the ME-SFI [ME] control unit:
- Intake air temperature
- Outside temperature
- Engine speed
- Engine load
The compressor is actuated via a ground signal. The power supply takers place over "circuit 87 M2".
Dependent on the motoric requests, a higher or a lower coolant target temperature is adjusted.
For a high specified coolant temperature (approx. 105 °C), the mechanical regulation is support by additional heating of the wax expansion element (13) as of 106 °C. The coolant thermostat heating element is fully energized at 110 °C, which results in the full opening of the ball rotary valve. An increased coolant temperature produces in partial-load range a favorable performance level, which works very positively on the fuel consumption.
The low specified coolant temperature is approx. 85 °C. In this case, the coolant thermostat heating element is subject to pilot control, which is variably adapted to the ambient conditions. In summer and at high outside temperatures, the coolant thermostat heating element can already be fully energized at 80 °C in order to avoid critical temperature ranges. In winter and at low outside temperatures, the coolant thermostat heating element is energized with 30 to 50 % of the maximum output.
A low coolant temperature in the wide open throttle operation has a positive effect on the Engine power, since the intake air is less warmed.
Post-start phase with electric coolant pump
In the post-start phase the coolant circulation stopped through cutting out of the electrical coolant pump. Due to missing cooling the Engine warms quicker and the exhaust emission are reduced.
The electric coolant pump is switched off for a cold start if the following conditions are fulfilled:
- Coolant temperature under 75 °C
- No "heating" request from climate control unit
The electrical coolant pump switches on in response to the request "Heat'. In this way the FIR is heated quickly.
If the conditions for shutoff of the electric coolant pump are no longer fulfilled, the ME-SFI [ME] control unit stops actuation of the electric coolant pump. The coolant circulation is therefore achieved again.
Starter-alternator cooling (with code B01 (48V Technology))
The starter-alternator is connected, together with the transmission oil heat exchanger for cooling, to the high temperature circuit. To prevent a heat buildup in the high temperature circuit, the coolant is also circulated by the starter-alternator coolant pump or coolant pump 2.
The ME-SFI [ME] control unit actuates the starter-alternator coolant pump or coolant pump 2 in a demand-dependent manner from 0 to 100 % via the Engine LIN based on the following signals:
- Starter-alternator temperature
The starter-alternator transmits the information via the hybrid CAN (CAN L), the powertrain control unit, and the drive CAN to the ME-SFI [ME] control unit.
- Transmission oil temperature
The fully integrated transmission control unit transmits the information via the drive CAN to the ME-SFI [ME] control unit.
Low-temperature circuit 1 (charge air cooling)
The liquid-cooled charge air cooler is connected to the low-temperature circuit 1.
The coolant in low-temperature circuit 1 is circulated to prevent overheating at specific points in the circuit. To do this, low-temperature circuit circulation pump 1 is regulated by the powertrain control unit in a demand-dependent manner via the drivetrain LIN (LIN C3).
The regulation depends on the following variables:
- Ambient temperature
- Charge air temperature
- Engine load
- Coolant temperature in low-temperature circuit 1
The powertrain control unit reads the low-temperature circuit temperature sensor signals in directly.
Low-temperature circuit 2 (with code B01 (48V Technology))
The DC/DC converter control unit and the 48 V on-board electrical system battery are cooled via low-temperature circuit 2. The coolant in low-temperature circuit 2 is circulated by low-temperature circuit circulation pump 2.
The powertrain control unit regulates low-temperature circuit circulation pump 2 in a demand-dependent manner via the drivetrain LIN depending on the coolant temperature in low-temperature circuit 2. To do this, the powertrain control unit reads the low-temperature circuit 2 temperature sensor signals in directly.
Overheating protection
The overheating protection protects the Engine and catalytic converter against damage due to thermal overload.
In the case of an imminent thermal overload, the ME-SFI [ME] control unit initiates the following measures:
- The ignition is adjusted to the "retarded" direction, depending on the Engine load and rotational speed from a coolant temperature of approx. 90 °C and a charge air temperature of approx. 20 °C.
- The opening of the throttle valve is reduced via the throttle valve actuator motor (M16/6m1) in the throttle valve actuator (M16/6) depending on the Engine load and speed.
- The injection duration is adjusted to the lower air mass. To do this the ME-SFI [ME] control unit actuates the following assembly parts:
- Cylinder 1 fuel injector (Y76/1)
- Cylinder 2 fuel injector (Y76/2)
- Cylinder 3 fuel injector (Y76/3)
- Cylinder 4 fuel injector (Y76/4)
- The annular slide valve (12) in the coolant thermostat is opened by completely actuating the coolant thermostat heating element.
Fan control
The powertrain control unit actuates the fan motor (M4/7) via the drivetrain LIN in an output-controlled manner between 0 and 100 %. In the event of faulty actuation, the fan motor turns with maximum Engine speed (fan emergency mode).
Delayed fan switch off
After "ignition OFF", the fan motor continues to run for up to 6 min if the coolant temperature or Engine oil temperature has exceeded the specified maximum value. If the battery voltage drops down a lot, the delayed fan switch off is suppressed.
Radiator trim flaps (with code 5U3 (AIRPANEL))
The radiator trim flaps are close in order to lower the fuel consumption (thorough having a lower aerodynamic drag). This also causes reduced Engine compartment cooling off and a dampening of Engine external noise emissions to the outside. The radiator trim flaps are opened under the following preconditions:
- Coolant temperature > 105 °C
- Charge air temperature > 34 °C
- Vehicle speed > 180 km/h
- Fan output > 30 %
The radiator trim flaps are closed when the conditions are no longer fulfilled or the Engine is off. The powertrain control unit actuates the radiator trim flap actuator motor (M2/37) via the powertrain LIN.
Limp-home function:
In the event of a malfunction, the radiator trim flaps are opened abruptly with a noticeable noise by the spring preload of the radiator trim flap actuator motor.
Cleaning position:
Switch on ignition (the Engine may not be switched on). The radiator trim flaps open automatically after approx. 120 seconds.
Radiator shutters (with code 2U1 (Radiator shutters))
The radiator shutters is closed in order to lower the fuel consumption (thorough having a lower aerodynamic drag). This also causes reduced Engine compartment cooling off and a dampening of Engine external noise emissions to the outside. The radiator shutters are opened under the following conditions:
- Coolant temperature > 106 °C
- Intake air temperature > 50 °C
- Vehicle speed > 180 km/h
- Transmission oil temperature > 100 °C
- There is a fault message from the fan motor
- Engine OFF
The radiator shutters are closed under the following conditions:
- Coolant temperature < 94 °C
- Intake air temperature < 45 °C
The powertrain control unit actuates the radiator shutters actuator motor (M87) via the drivetrain LIN.
