Remove/Install Intake Camshaft Position Sensor - AR07.04-P-0056MRI
Engine 264 in Model 205, 253
| Risk of injury to skin and eyes due to handling of Engine oil. Risk of poisoning caused by swallowing Engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill Engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/Install | |||
| 1 | Remove upper Engine cover. | AR01.10-P-2405MRI | |

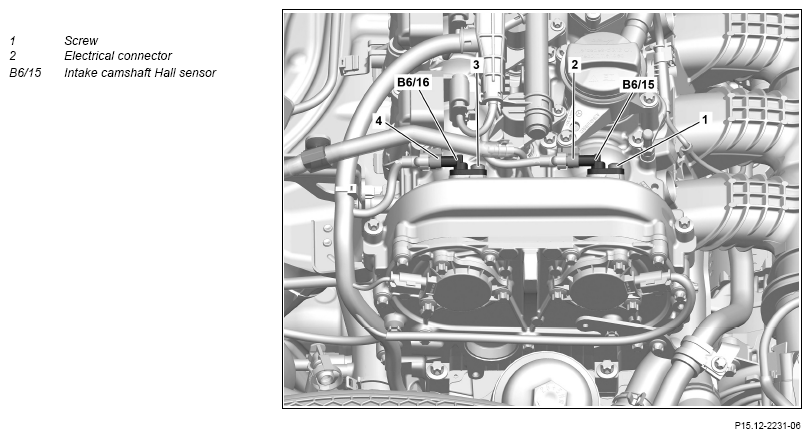

| 2 | Release and disconnect electrical connector (2). | ||
| 3 | Remove screw/bolt (1). | *BA15.10-P-1002-07A | |
| 4 | Remove intake camshaft Hall sensor(B6/15). | ||
| 5 | Install in the reverse order | ||
| Concluding tasks | |||
| 6 | Connect vehicle diagnosis system, read out fault memory and clear if necessary. | ||
| AD00.00-P-2000-04B | |||
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. | AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when Engine running. Risk of injury (bruises and burns) resulting from working on the Engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Perform Engine test run. While doing so, check Engine for proper operation and leak tightness |
POSITION SENSOR
| Number | Designation | Engine 264 | |
|---|---|---|---|
| BA15.10-P-1002-07A | Screw/bolt, camshaft position sensor to cylinder head cover | Nm | 9 |
