Remove/Install Alternator - AR15.40-P-5032MFG

Engine 139 in model 118, 177, 247

MODIFICATION NOTES

29.11.2019 Document completely revised.

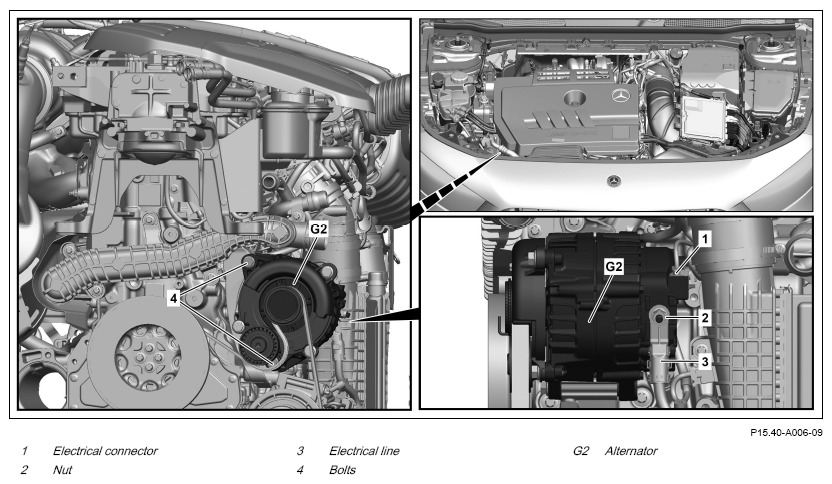

Fig 1: Alternator Components Location - Model 118 With Engine 139
G16048563WARNINGWARNINGCAUTIONREMOVINGIMPORTANTINSTALLINGTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONINSPECTWARNINGCourtesy of MERCEDES-BENZ USA
WARNING Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities. No parts of the body or limbs should be within the operating area of mechanical components when moving components. AS00.00-Z-0009-01A
WARNING Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
Notice  Notes on self-locking nuts and bolts   AH00.00-P-0001-01KOA
REMOVING Remove
1 Disconnect ground line of on-board electrical system battery (G1).   AR54.10-P-0003MFA
2 Remove charge air cooler.   AR09.41-P-0105MFG
3 Remove refrigerant compressor.   AR83.55-P-5310MFG
4 Remove guide pulley from poly-V belt clamping device.
5 Release electrical connector (1) and disconnect.
6 Remove cover of nut (2).
7 Remove nut (2).
8 Remove electrical line (3) from alternator (G2).
9 Remove screws (4). IMPORTANT Secure the alternator (G2) so that it does not fall down.
10 Remove alternator (G2) downward.
INSTALLING Install
11 Install alternator (G2) and position on bracket.
12 Screw in screws/bolts (4). TORQUE SPECIFICATION Bolt, alternator to bracket *BA15.40-P-1011-01F
13 Install electric line (3) at alternator (G2).
14 Attach nut (2). TORQUE SPECIFICATION Nut, circuit B+ to alternator *BA15.40-P-1002-01F
15 Install cover of nut (2).
16 Connect and lock electrical connector (1).
17 Attach guide pulley to poly-V belt clamping device. TORQUE SPECIFICATION M10 *BA00.10-P-1004-01A
18 Install refrigerant compressor.   AR83.55-P-5310MFG
19 Install charge air cooler.   AR09.41-P-0105MFG
20 Attach ground line of the on-board electrical system battery (G1).   AR54.10-P-0003MFA
INSPECT Check
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
21 Perform engine test run and check alternator (G2) for proper operation.
HEADLESS SCREWS: BOLTS AND NUTS, COARSE-PITCH THREAD

Number Designation Model all (4xWD, CAR, smart)
BA00.10-P-1004-01A M10 8.8 Galvanized Nm 45
Phosphated Nm 42
10.9 Galvanized Nm 63
Phosphated Nm 58
12.9 Galvanized Nm 76
Phosphated Nm 70
ALTERNATOR

Number Designation Engine 139.9
BA15.40-P-1002-01F Nut, circuit B+ to alternator Nm 16
ALTERNATOR

Number Designation Engine 139.9
BA15.40-P-1011-01F Bolt, alternator to bracket Nm 20
