Remove/Install Accelerator Pedal - AR30.12-P-1321LWE

Model 213, 238

Shown on model 213.071

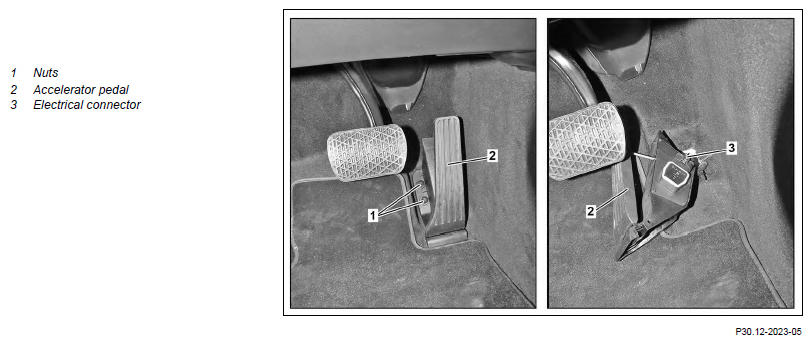

Fig 1: Accelerator Pedal Components Location - Model 238 (Shown On Model 213.071)

Courtesy of MERCEDES-BENZ USA

	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Switch off ignition and store transmitter key outside of transmission range (min. 2 m).
2	Unscrew nuts (1), remove accelerator pedal (2) and place to one side.	Nut, accelerator pedal to firewall	*BA30.20-P-1001-03B
3	Disconnect electrical connector (3).	The number of electrical connections (3) can vary depending on the equipment installed.
4	Remove accelerator pedal (2).	The accelerator pedal (2) must not be disassembled. It can be damaged and must be replaced otherwise.
5	Install in the reverse order.

ACCELERATOR PEDAL

Number	Designation		Model 213	Model 238
BA30.20-P-1001-03B	Nut, accelerator pedal to firewall	Nm	8	8
