Remove/Install Left Front Knock Sensor - AR15.12-P-2186XGC

Engine 177 in model 463

as of model year 2019

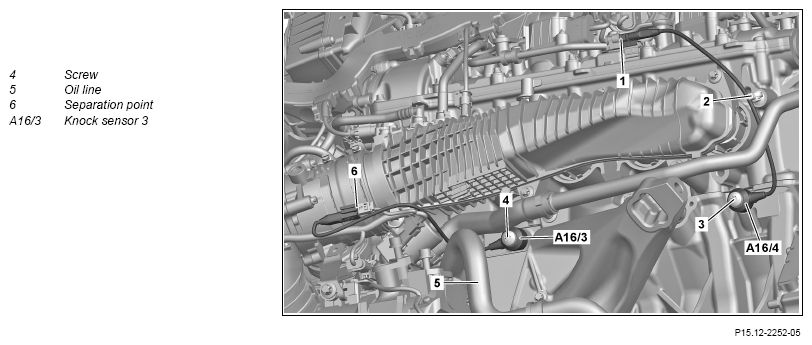

Fig 1: Left Front Knock Sensor Components Location - Engine 177 In Model 463 As Of Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Risk of injury. Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil	Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers.	AS18.00-Z-0001-01A
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Drain engine oil.
			AP18.00-P-0101GDD
		: Only install lower engine compartment linings after engine test run.
2	Remove the A/C compressor (A9).		AR83.55-P-5310XGC
3	Remove the oil line (5) from the engine, oil pan and left engine carrier, place to one side and seal openings with protective covers and suitable stop plugs.	Installation: Install new sealing rings.
		Bolt, oil line to oil pan/crankcase/engine support	*BA01.45-P-1001-01Y
		Set of protective caps	Fig 2
		Record plug	Fig 3
4	Release and disconnect the electrical connector for the knock sensor 3 (A16/3) at the separating point (6).
5	Unscrew the screw (4) and remove the knock sensor 3 (A16/3) in a forward direction.	: The contact surfaces must be free from soiling. Otherwise, knock sensor 3 (A16/3) will malfunction.
		Bolt, knock sensor to crankcase	*BA15.10-P-1001-02G
6	Install in the reverse order.
7	Read out and delete fault memory.
			AD00.00-P-2000-04B
	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
8	Carry out engine test run and check engine for proper leaktightness and leaktightness.
9	Install lower engine compartment lining.		AR61.20-P-1105XG
