Remove/Install Alternator - AR15.40-P-5032XGC
Engine 177 in model 463
as of model year 2019
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Disconnect ground line from battery. | AR54.10-P-0003XG | |
| 2 | Remove the guide pulley. | AR13.20-P-0011XGC | |

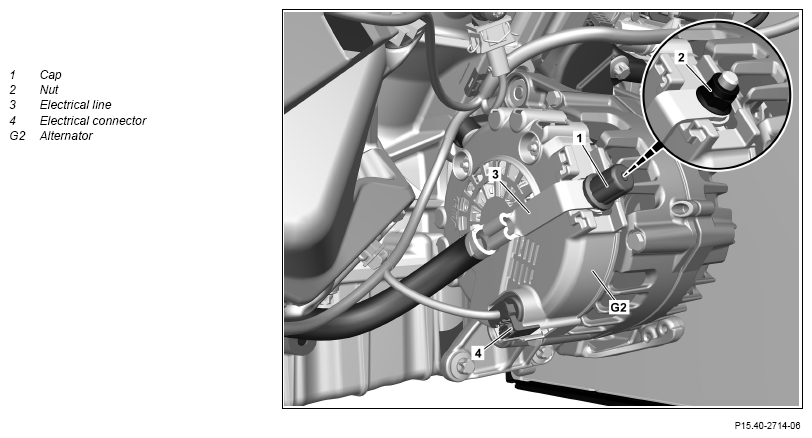

| 3 | Remove the cover (1) from the nut (2). | ||
| 4 | Unscrew the nut (2) of the electric line (3). | *BA15.40-P-1003-01T | |
| 5 | Remove the electric line (3) from the alternator (G2). | ||
| 6 | Release and disconnect electrical connector (4). | ||

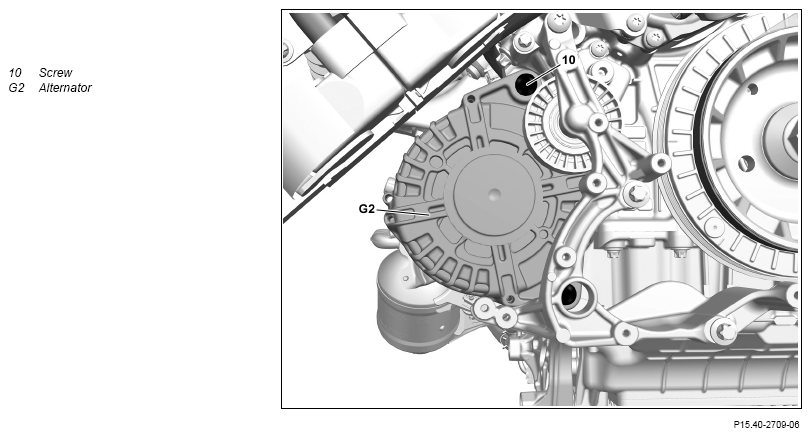

| 7 | Remove the bolt (10). | *BA15.40-P-1001-01T | |
| 8 | Remove alternator (G2) downward. | ||
| 9 | Install in the reverse order. | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 10 | Perform an engine test run while checking the alternator (G2) for proper operation. | AR15.40-P-5001XGC |
ALTERNATOR
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA15.40-P-1001-01T | Bolt, alternator to alternator bracket | Nm | 20 |
ALTERNATOR
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA15.40-P-1003-01T | Nut, positive line to alternator | Nm | 16 |
