Remove/Install Coolant Temperature Sensor - AR15.60-P-2712XGC
Engine 177 in model 463
as of model year 2019

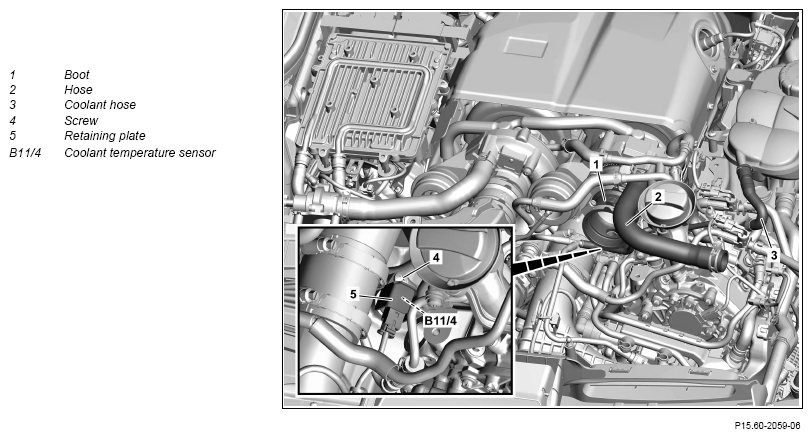

Fig 1: Coolant Temperature Sensor Components Location - Engine 177 In Model 463 As Of Model Year 2019
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. | AS20.00-Z-0001-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Notes on coolant | AH20.00-N-2080-01A | ||
| Remove/install | |||
| 1 | Remove left air filter housing. | AR09.10-P-1151XGC | |
| 2 | Remove hose (2) from exhaust gas turbocharger. | Fig 3 | |
| 3 | Disconnect coolant hose (3). | Fig 2 | |
| 4 | Remove coolant hose (3) from low-temperature circuit expansion reservoir and place to one side. | AR09.41-P-0001XGC | |
| 5 | Remove boot (1) at left exhaust gas turbocharger and place to one side. | *BA01.20-P-1003-01J | |
| 6 | Drain coolant. | AR20.00-P-1142XGC | |
| 7 | Release and disconnect electrical connector at coolant temperature sensor (B11/4). | ||
| 8 | Unscrew bolt (4). | *BA07.04-P-1002-01Q | |
| 9 | Remove coolant temperature sensor (B11/4) with retaining plate (5) in upward direction. | ||
| 10 | Remove retaining plate (5) from coolant temperature sensor (B11/4). | When replacing the coolant temperature sensor (B11/4). | |
| 11 | Install in the reverse order. | ||
| 12 | Perform ventilation routine of engine management control unit (MCM). | ||
| AD00.00-P-2000-04B | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 13 | Carry out engine test run and check engine for proper leaktightness and leaktightness. | ||
| 14 | Install lower engine compartment lining. | AR61.20-P-1105XG | |
| 15 | Install upper engine cover. | AR01.10-P-2405XGC |
CRANKCASE VENTILATION SYSTEM, CYLINDER HEAD COVER
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA01.20-P-1003-01J | Clamp, boot to exhaust gas turbocharger/air filter | Nm | 1, 5 |
SENSORS
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA07.04-P-1002-01Q | Bolt, temperature sensor bracket to crankcase | Nm | 9 |
