Remove/Install Starter - AR15.30-P-7100MFC

Engine 260 in model 118, 177, 247

except code B01 (48V technology)

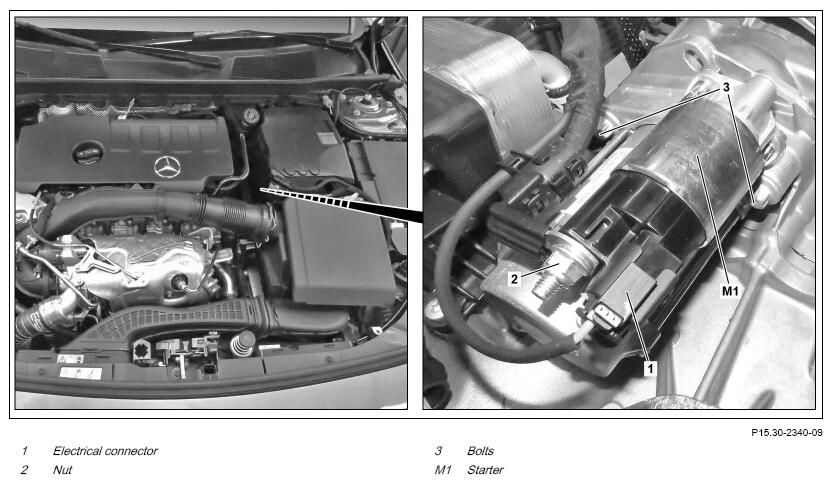

Fig 1: Starter Components Location - Engine 260 In Model 247 Except Code B01

Courtesy of MERCEDES-BENZ USA

	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove air filter housing.		AR09.10-P-1150MFC
2	Remove battery carrier.		AR54.10-P-0028MFA
3	Release and disconnect electrical connector (1) at starter (M1).
4	Remove cover above nut (2).
5	Unscrew nut (2) and remove electric line for circuit 30 from starter (M1).	Nut, connection for terminal designation 30	*BA15.30-P-1001-01J
6	Remove screw/bolts (3).	Bolt, starter to crankcase/transmission	*BA15.30-P-1003-01J
7	Remove starter (M1).
	Check
8	Check pinion of starter (M1) for damage and wear.	If the starter (M1) is reused. If wear or damage is detected: ↓ Replace starter (M1).
9	Check ring gear on flywheel/drive plate for wear and damage.	Rotate engine at center Bolt, crankshaft in the direction of engine rotation. If wear or damage is detected: ↓ Replace flywheel/drive plate. Engine 260 in model 118, 177, 247 with transmission 724.1 except code B01 (48V technology)	AR03.30-P-8001MFI
		Engine 260 in model 118, 177, 247 with transmission 724.0 except code B01 (48V technology)	AR03.30-P-8001MFC
10	Install in the reverse order.
