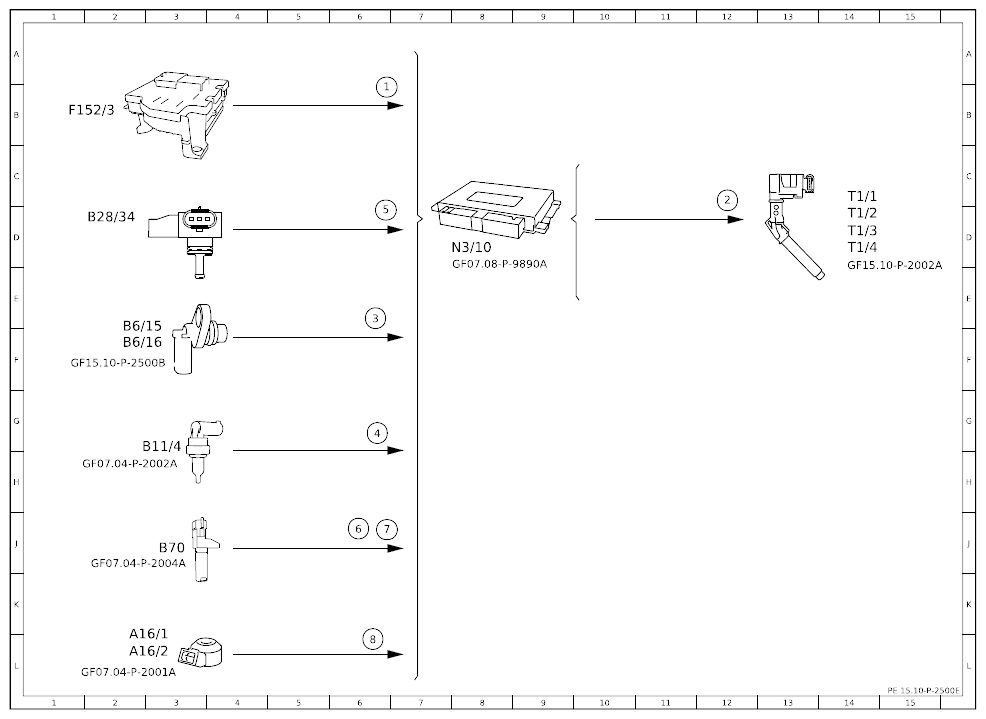

Function Schematic For Ignition System - PE15.10-P-2500-97E
Engine 139 in model 118, 177, 247
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 87, status | 6B |
| 2 | Ignition coils, actuation | 12D |
| 3 | Camshaft Hall sensor, signal | 6E |
| 4 | Coolant temperature sensor, signal | 6G |
| 5 | Pressure and temperature sensor downstream of throttle valve, signal | 6D |
| 6 | Crankshaft Hall sensor, signal | 6J |
| 7 | Engine speed, signal | 6J |
| 8 | Knock sensor, signal | 6L |
| A16/1 | Knock sensor 1 | 2L |
| A16/2 | Knock sensor 2 | 2L |
| B11/4 | Coolant temperature sensor | 3G |
| B28/34 | Intake manifold pressure and temperature sensor | 2D |
| B6/15 | Intake camshaft Hall sensor | 2F |
| B6/16 | Exhaust camshaft Hall sensor | 2F |
| B70 | Crankshaft Hall sensor | 3J |
| F152/3 | Engine compartment fuse and relay module | 1B |
| N3/10 | ME-SFI [ME] control unit | 8D |
| T1/1 | Cylinder 1 ignition coil | 14C |
| T1/2 | Cylinder 2 ignition coil | 14D |
| T1/3 | Cylinder 3 ignition coil | 14D |
| T1/4 | Cylinder 4 ignition coil | 14D |
